LensTip.com

Lens review

Fujifilm Fujinon XF 27 mm f/2.8

19 September 2013
Arkadiusz Olech

8. Vignetting

It would be highly unreasonable to think a „pancake” lens can correct vignetting well so I admit our expectations weren’t high. When dealing with the Fujifilm X system traditionally you have to check both JPEG and RAW files. The former ones not only have a smaller field of view, they are also distortion, chromatic aberration and vignetting-corrected.

A comparison of the light fall-off in the corners of the frame by different aperture values and for both types of files is presented in thumbnails below.

JPEG RAW
f/2.8 f/2.8
Fujifilm Fujinon XF 27 mm f/2.8 - Vignetting Fujifilm Fujinon XF 27 mm f/2.8 - Vignetting
f/4.0 f/4.0
Fujifilm Fujinon XF 27 mm f/2.8 - Vignetting Fujifilm Fujinon XF 27 mm f/2.8 - Vignetting
f/5.6 f/5.6
Fujifilm Fujinon XF 27 mm f/2.8 - Vignetting Fujifilm Fujinon XF 27 mm f/2.8 - Vignetting


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


In the case of JPEG files at the maximum relative aperture you must take into account the loss of 23% of light (-0.74 EV) in the frame corners. It is a moderate value which decreases to low by f/4.0, reaching 18% (-0.59 EV). By f/5.6 and f/8.0 it is already almost imperceptible, amounting to 13% (-0.40 EV) and 10% (-0.30 EV) respectively.

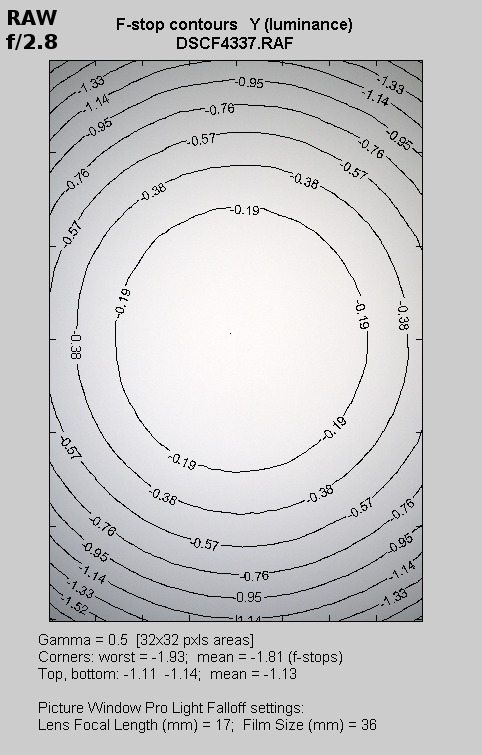

Still the real level of vignetting can be observed only when you analyze RAW files. Here, at the maximum relative aperture, the brightness loss in the frame corners gets to a very high level of 46% (-1.81 EV). On stopping down to f/4.0 that aberration decreases significantly to 30% (-1.05 EV). By f/5.6 the vignetting still reaches 22% (-0.74 EV) and by f/8.0 it is 18% (-0.57 EV). Further stopping down doesn’t change the vignetting value.

To sum up the lens didn’t exactly distinguished itself in this category; still the same remark will be true for any “pancake” vignetting test so such a conclusion is hardly surprising.

Fujifilm Fujinon XF 27 mm f/2.8 - Vignetting
