Lens review

Sigma A 24-105 mm f/4 DG OS HSM

14 November 2013
Arkadiusz Olech

6. Distortion

The chart below shows the distortion performance for particular focal lengths and detectors.


24 mm
35 mm
50 mm
70 mm
105 mm
APS-C/DX
−2.27%
-0.06%
0.70%
0.77%
0.78%
FF
−4.96%
-0.17%
1.53%
1.65%
1.78%


It’s clear that at 24 mm you deal with barrel distortion: its level is high on full frame and moderate on the APS-C/DX sensor. On full frame you can even find some moustache distortion as well – the measurements for the frame centre provide a result of -5.3%, on average -4.6% across the frame. Near 35 mm focal length the distortion becomes zero and then it changes the sign. At longer focal length and on the APS-C/DX sensor the distortion level is imperceptible, becoming slight on full frame.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Here the Sigma compares favourably with its rivals. The Nikkor 24-120 mm VR had a very similar distortion at 24 mm but its results at the longer end were worse than those of the Sigma. The Canon 24-105L was tested only on the smaller sensor but its results at the shortest focal length were a tad worse than those the Sigma got on a similar sensor. At the longer focal lengths the results of both lenses are, within the margin of error, the same.

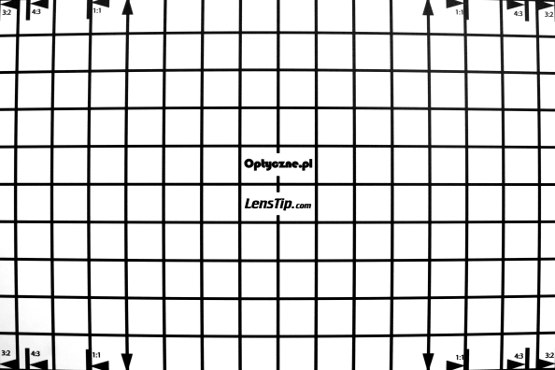

Canon 50D, 24 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

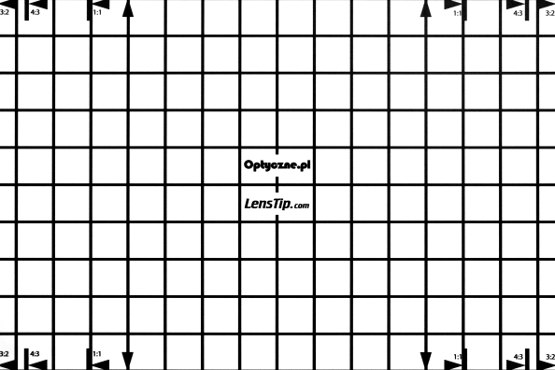

Canon 50D, 35 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

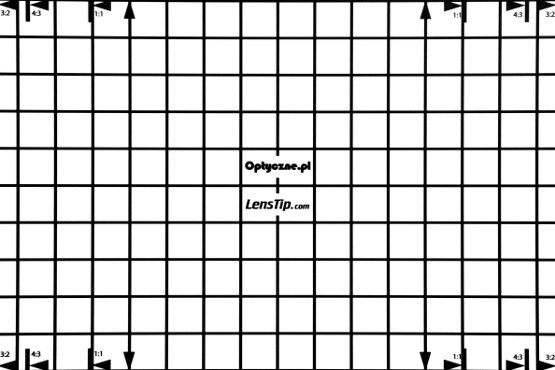

Canon 50D, 50 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

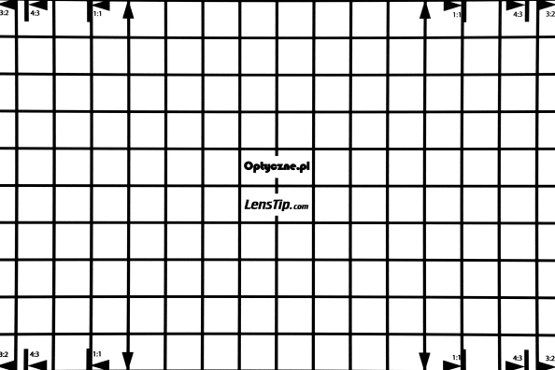

Canon 50D, 70 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

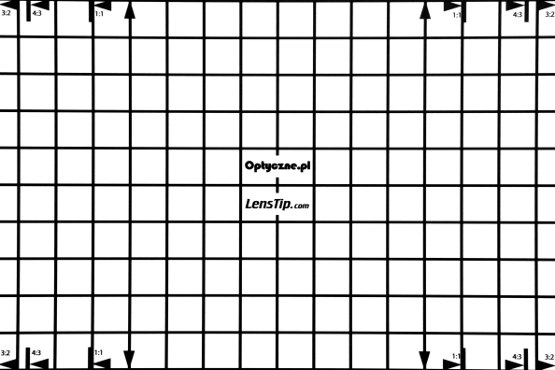

Canon 50D, 105 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

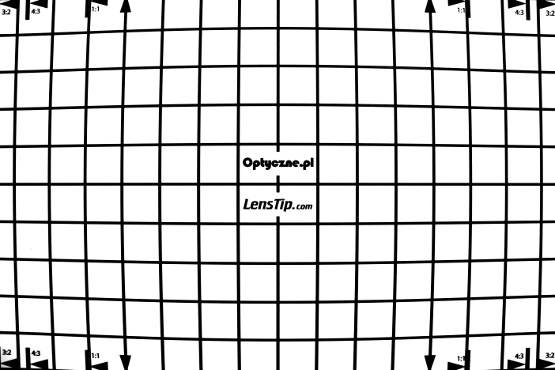

Canon 1Ds MkIII, 24 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

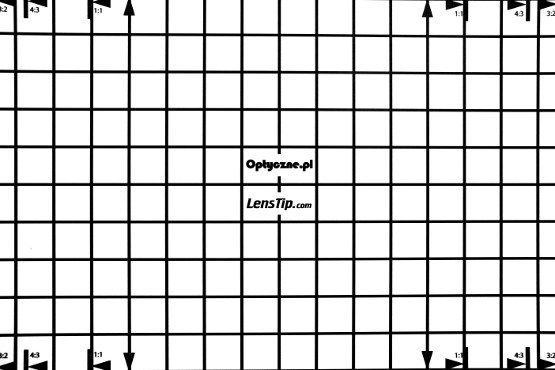

Canon 1Ds MkIII, 35 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

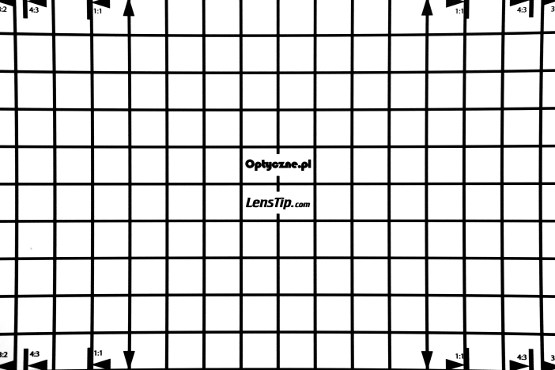

Canon 1Ds MkIII, 50 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

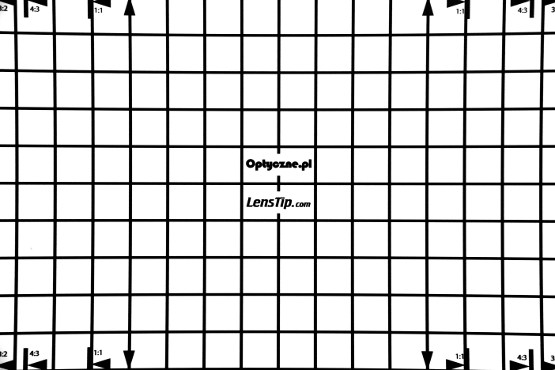

Canon 1Ds MkIII, 70 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion

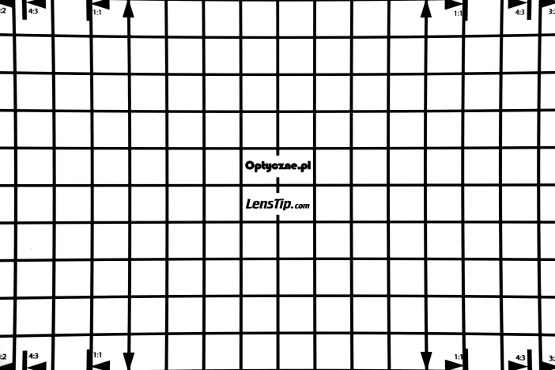

Canon 1Ds MkIII, 105 mm
Sigma A 24-105 mm f/4 DG OS HSM - Distortion
