Lens review

Olympus M.Zuiko Digital 25 mm f/1.8

30 April 2014
Arkadiusz Olech

3. Build quality

There is a whole group consisting of several standard lenses designed for mirrorless systems to compare the tested lens to. In the following chart we compare the Olympus 1.8/25 and its direct rivals. The Fujinon and the Leica are physically bigger and heavier but it is quite understandable, taking into account their superior aperture fastness. The Samsung 2/30 compares very favourably here – its fastness is a bit worse but it is an example of great optics closed in a tiny casing. The Olympus is smaller and physically lighter than the Sony but you should remember the second device has optical stabilization system built into it and was designed for a bigger sensor.

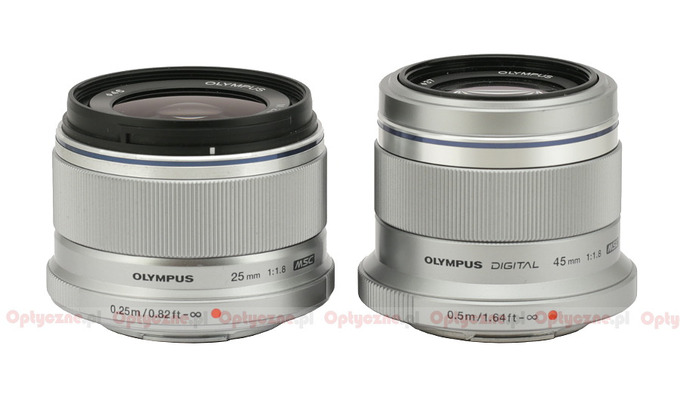

In the photo below the tested lens is positioned next to the Olympus M.Zuiko 45 mm f/1.8.

Olympus M.Zuiko Digital 25 mm f/1.8 - Build quality

Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

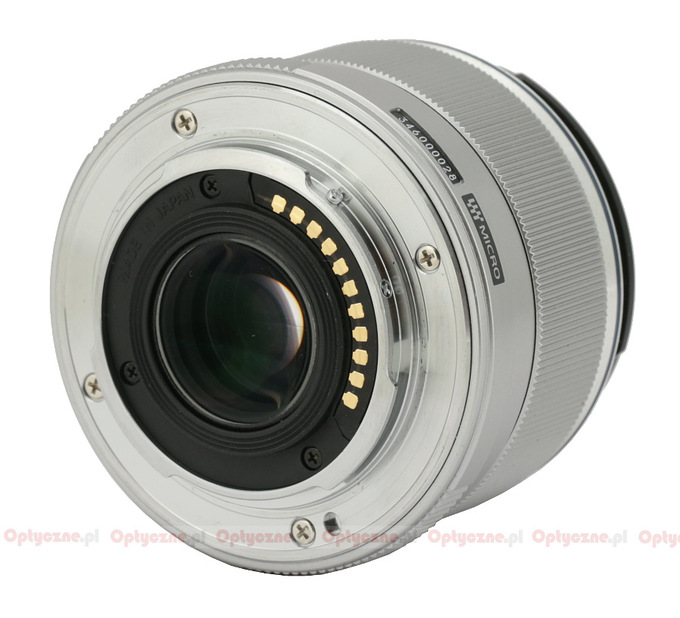

The Olympus M.Zuiko 25 mm f/1.8 starts with a metal mounting plate which surrounds contacts and a rear element less than 21 mm in diameter. A black ring the contacts are sealed in features also an inscription “MADE IN JAPAN”. As you see the series of fast Olympus primes can’t be called consistent here – the 1.8/17 and the 1.8/45 models are produced in China, the rest comes from Japan.

Olympus M.Zuiko Digital 25 mm f/1.8 - Build quality

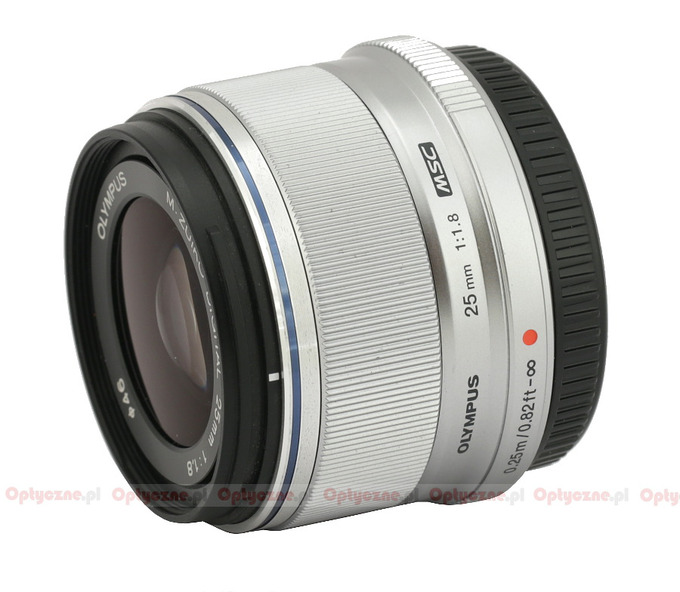

Passing to the proper casing you see a wider, immobile ring with ribbing on the left and on the right to provide a secure, firm grip. The ring also has information about the focusing range of the lens and its serial number. Another narrow and smooth ring is a place where you can find the name and parameters of the lens.

Olympus M.Zuiko Digital 25 mm f/1.8 - Build quality

The next part is a manual focus ring. It is 15 mm wide, it moves smoothly and is well-damped. Here you can notice a difference compared to the 2/12 and 1.8/17 lenses – the ring’s work is based on servomechanisms so it can’t be moved upwards and downwards to change the focusing mode into manual. Also there is no distance scale or a DOF scale.

The next narrow grip band with a blue stripe is made of metal. A hood ring comes out of it and it goes round a non-rotating filter thread, 46 mm in diameter, another ring with the name and the parameters of the lens and a slightly convex front element, 30 mm in diameter.

The inner construction consists of 9 elements positioned in 7 groups. The producer doesn’t boast of any special elements. Inside you can also find a rounded aperture with seven blades which can be closed down to f/22.

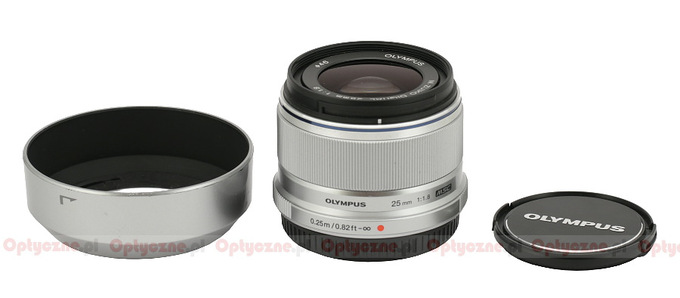

The buyers get both lens caps and a hood in the box.

Olympus M.Zuiko Digital 25 mm f/1.8 - Build quality
