Lens review

Olympus M.Zuiko Digital 25 mm f/1.8

30 April 2014
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Micro 4/3 system optics constructors usually give up on distortion correction, leaving that task to cameras’ software; it is true even when you deal with lenses with moderate angles of view. For example the Panasonic 1.7/20 showed very significant “barrel” on RAW files, which level amounted to –3.66% and the Leica 1.4/25 was only slightly better, with the distortion of –2.30%.

The performance of the Olympus sticks out in a positive way here because the tested lens corrects the distortion very well, no matter whether you use JPEG or RAW files. In the first case the distortion level reaches −0.82%, in the second it is −1.12%; both these values can be called moderate and are significantly lower than those of lens’s competitors.

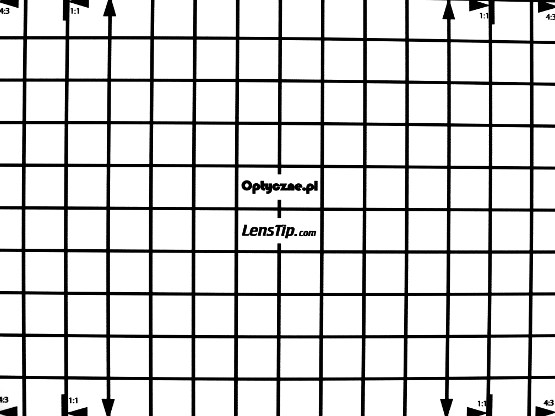

Olympus E-PL1, JPEG
Olympus M.Zuiko Digital 25 mm f/1.8 - Distortion

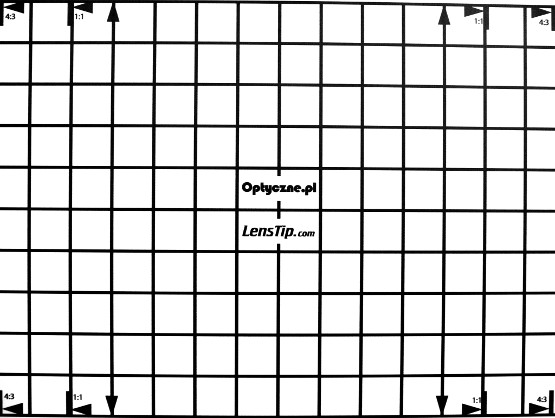

Olympus E-PL1, RAW
Olympus M.Zuiko Digital 25 mm f/1.8 - Distortion
