6. Distortion


- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The highest distortion level you see at 10 mm where it amounts to - 2.40%. At the longer focal lengths that aberration stops being even the slightest problem. At 14 mm it is practically zero (and more precisely +0.17%) and at 18 mm it increases a bit to +0.53%.

The result we got at 10 mm is exactly the same as the result of the Canon EF-S 10–22 mm at 10 mm focal length. The more expensive brother is a bit better at bigger focal lengths but once again those differences are tiny.


Canon 50D, 10 mm
Canon EF-S 10-18 mm f/4.5-5.6 IS STM - Distortion

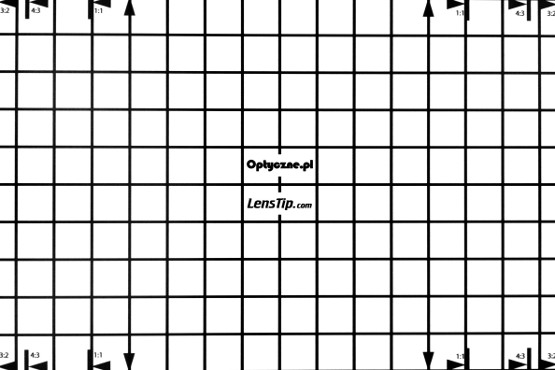

Canon 50D, 14 mm
Canon EF-S 10-18 mm f/4.5-5.6 IS STM - Distortion

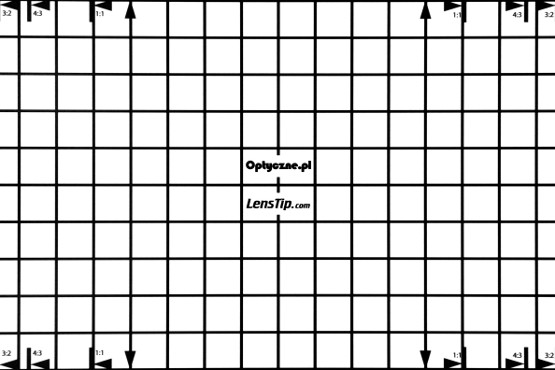

Canon 50D, 18 mm
Canon EF-S 10-18 mm f/4.5-5.6 IS STM - Distortion
