LensTip.com

Lens review

Canon EF-S 10-18 mm f/4.5-5.6 IS STM

15 July 2014
Arkadiusz Olech

7. Coma, astigmatism and bokeh

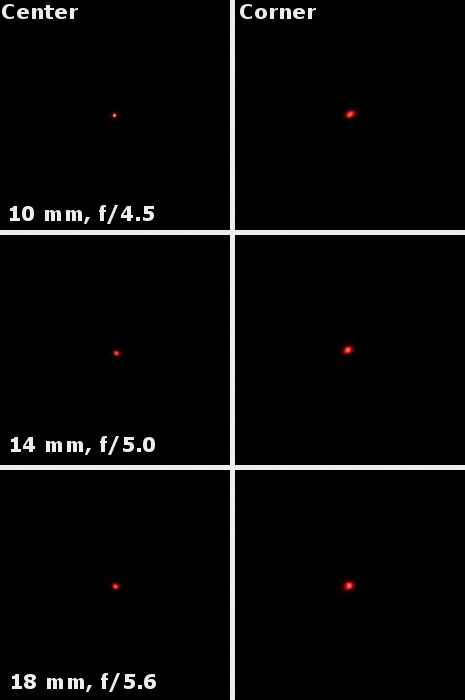

We don’t have any serious reservations concerning the coma correction – the crops, shown below, are the proof the lens performs well here. In fact the Canon EF-S 10-18 mm fares noticeably better than its more expensive 10-22 mm brother.

Canon EF-S 10-18 mm f/4.5-5.6 IS STM - Coma, astigmatism and bokeh


The astigmatism is corrected as well as the coma. The average difference between horizontal and vertical MTF50 function values amounted to 3.5% which we consider a good result.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

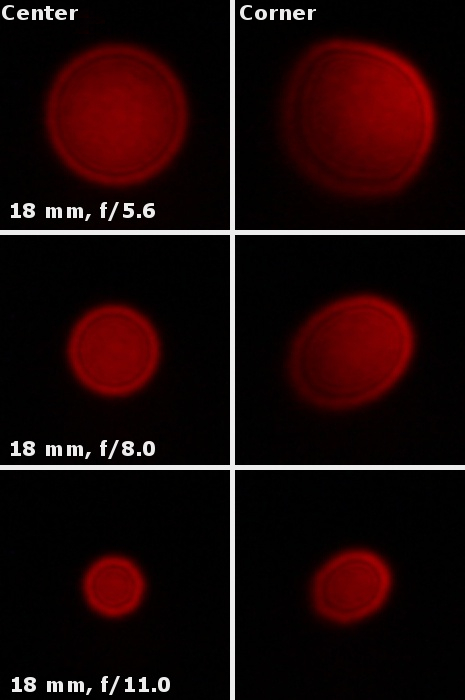

Defocused light circles don’t look well, though – you can notice a distinct rim near the edge and in the frame corner the light is spread very unevenly. It is of course a result of high vignetting which will be described in more detail in the next chapter.

Canon EF-S 10-18 mm f/4.5-5.6 IS STM - Coma, astigmatism and bokeh
