LensTip.com

Lens review

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH

6 August 2014
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The Olympus and Panasonic companies give up on correcting the distortion optically in most of Micro 4/3 lenses, delegating that task to a camera’s software. The PanaLeica 1.7/15 is not an exception to that rule. The distortion level on JPEG files is slight, amounting to just –0.91%. The real situation is revealed on RAW files and it is very bad indeed because a result of –6.04% cannot be called otherwise; it is also similar to the result of the Panasonic 2.4/14.

Still it is worth remembering that those companies are honest: they provide the size of the field of view cropped after the distortion correction. You don’t lose anything but still you can notice the effect of ‘pixel pumping’ and it certainly influences the image quality on the edge of the frame.

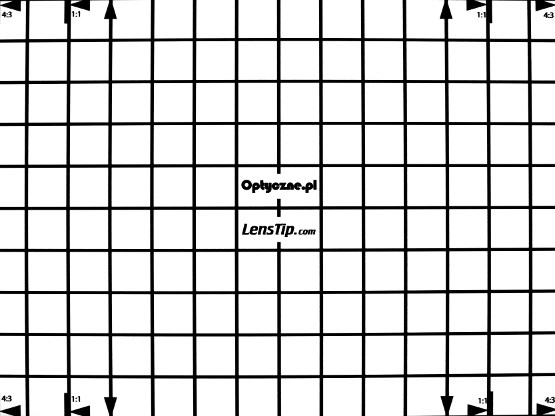

Olympus E-PL1, JPEG
Panasonic Leica DG Summilux 15 mm f/1.7 ASPH - Distortion

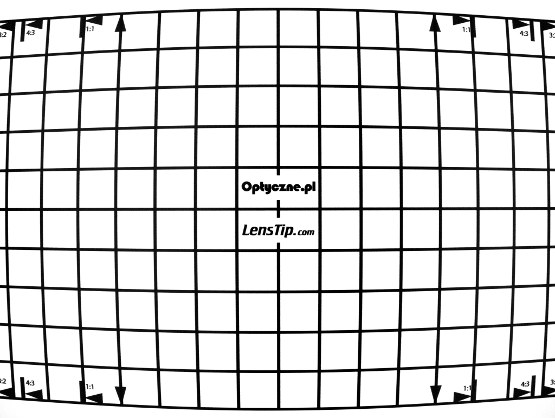

Olympus E-PL1, RAW
Panasonic Leica DG Summilux 15 mm f/1.7 ASPH - Distortion
