Lens review

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH

6 August 2014
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

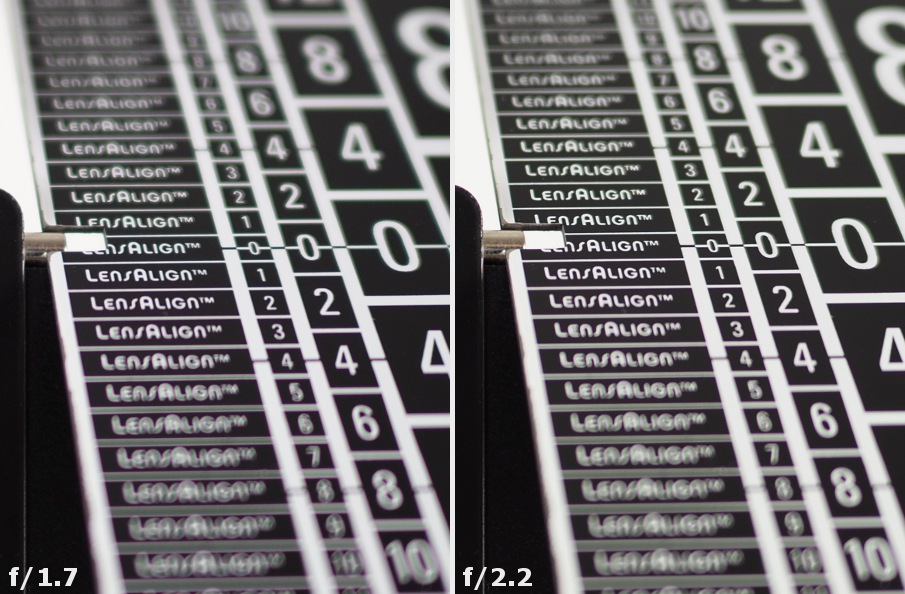

The Panasonic Leica DG Summilux 15 mm f/1.7 ASPH doesn’t correct the longitudinal chromatic aberration in a perfect way. Its influence is visible both at the maximum relative aperture and on stopping down by 1EV although the stopping down does reduce the level of the aberration. Still you can’t say there are huge problems – you can notice the aberration but its level will be hardly bothersome.

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

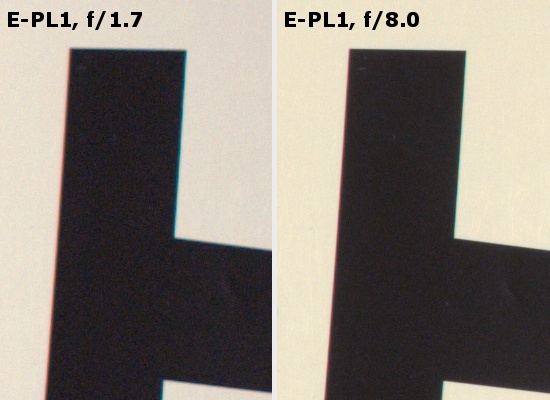

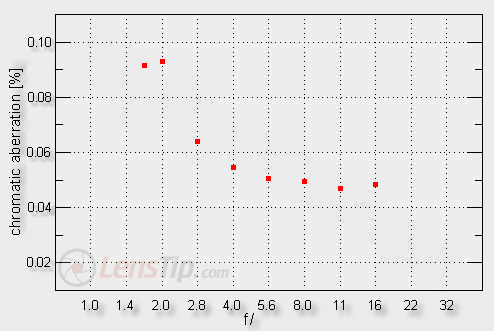

It would be difficult to have any reservations concerning the level of the lateral chromatic aberration. Near the maximum relative aperture its value reaches about 0.09%, being medium. After stopping down you see that aberration decrease to low levels you don’t have to worry about.

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH - Chromatic and spherical aberration

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH - Chromatic and spherical aberration



Spherical aberration

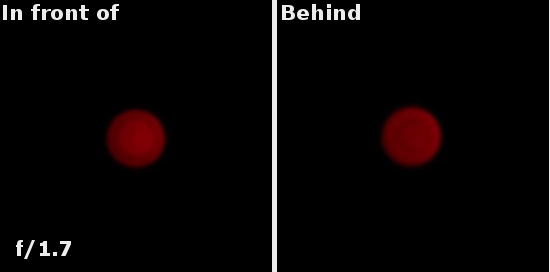

The spherical aberration doesn’t reveal itself as a ‘focus shift’ effect. The images of defocused points we got in front of and behind the focus differ a bit but not to a point of being a problem.

Panasonic Leica DG Summilux 15 mm f/1.7 ASPH - Chromatic and spherical aberration
