6. Distortion

Classic 50 mm devices usually show low barrel distortion and the Canon EF 50 MM F/1.8 II is not an exception to that rule. On a smaller sensor of the Canon 50D we got a negligible level of that aberration amounting to –0.39%. A bit more problems were on full frame where the distortion level reached –1.28%.

In the chart below you see how the Canon compares to its rivals.


Nikkor
AF-S 1.8/50G
Nikkor
AF 1.8/50D
Canon
EF 1.4/50
Canon
EF 1.8/50 II
Minolta
1.7/50
APS-C/DX
−0.49%
−0.20%
−0.49%
−0.39%
−0.30%
FF
−1.18%
−0.49%
–1.98%
–1.28%
−0.68%


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The performance of the Canon is hardly impressive. Two things really stick up: firstly the distinctly better result of the Nikkor 1.8/50D, secondly the worse result of the Canon 1.4/50. Strange but true: the cheaper, slower Canon 1.8/50 manages to correct distortion better than its f/1.4 brother. Go figure.

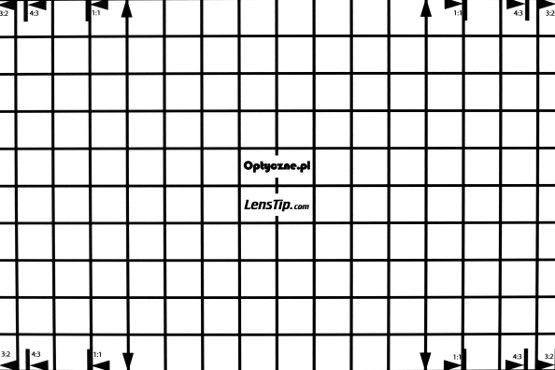

Canon 50D, 50 mm
Canon EF 50 mm f/1.8 II - Distortion

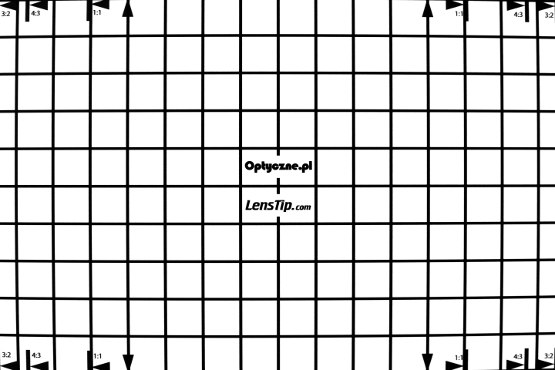

Canon 5D MkIII, 50 mm
Canon EF 50 mm f/1.8 II - Distortion
