Canon EF 50 mm f/1.8 II

21 January 2015
Arkadiusz Olech

8. Vignetting

Let’s check how the tested Canon EF 50 mm f/1.8 II fares on the small sensor of the Canon 50D first. The appropriate thumbnails are presented below.

Canon 50D, f/1.8 Canon 50D, f/2.0
Canon EF 50 mm f/1.8 II - Vignetting Canon EF 50 mm f/1.8 II - Vignetting


The vignetting is visible only near the maximum relative aperture. By f/1.8 it is 25% (-0.83 EV) and it decreases to 19% (-0.62 EV) on applying f/2.0. Stopping down the lens to f/2.8 makes the vignetting unobtrusive as its level decreases to just 8% (-0.21 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s see how the situation changes when you progress to full frame.

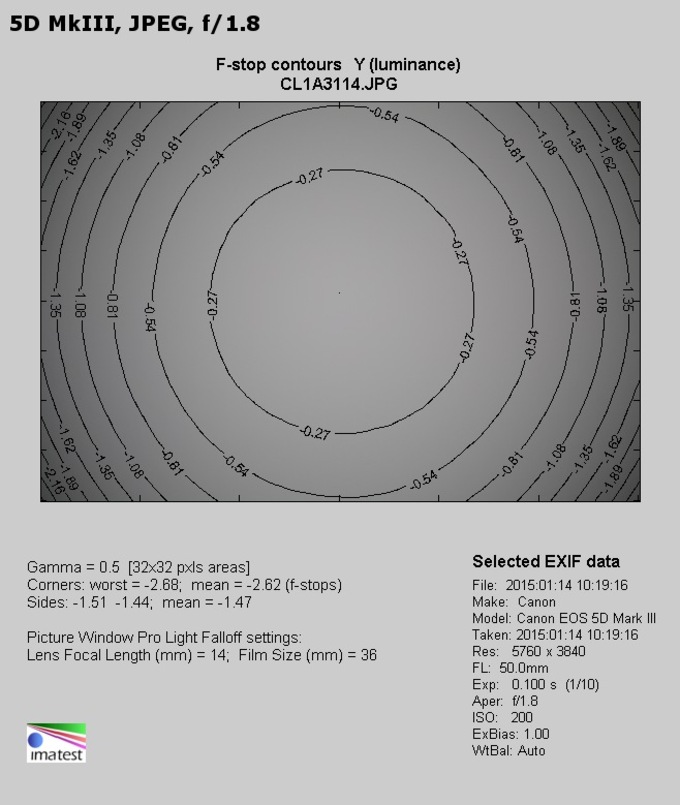

Canon 5D III, f/1.8 Canon 5D III, f/2.0
Canon EF 50 mm f/1.8 II - Vignetting Canon EF 50 mm f/1.8 II - Vignetting
Canon 5D III, f/2.8 Canon 5D III, f/4.0
Canon EF 50 mm f/1.8 II - Vignetting Canon EF 50 mm f/1.8 II - Vignetting


Unfortunately the results are really very bad. At the maximum relative aperture you lose as much as 60% of light in the frame corners (-2.62 EV) – that’s a lot. By f/2.0 the vignetting is only slightly better, reaching 55% (-2.28 EV). The aberration remains distinctly visible by f/2.8 where it gets to 32% (-1.10 EV). Only by f/4.0 you can talk about a slight level of vignetting with a result of 15% (-0.47 EV). The aberration disappears completely by f/5.6 where it is just 9% (-0.28 EV).

The performance of the Canon compares unfavourably to that of its rivals. It’s worth reminding here that both Nikkors, the AF 1.8/50D and the AF-S 1.8/50G, at the maximum relative aperture showed vignetting of 41-44% so much lower than the level of the Canon.

Canon EF 50 mm f/1.8 II - Vignetting
