LensTip.com

Lens review

Panasonic G 42.5 mm f/1.7 ASPH. POWER O.I.S.

27 June 2015
Arkadiusz Olech

6. Distortion

The Olympus M.Zuiko Digital 45 mm f/1.8 had pincushion distortion on a level of 0.7% no matter whether you used JPEG or RAW files in your measurements. In the case of the Panasonic Leica DG Nocticron 42.5 mm f/1.2 Asph. P.O.I.S. we got results ranging from −0.05% to −0.09% so that aberration was practically zero.

What’s interesting, the Panasonic 1.7/42.5 compares not so badly here. When it comes to RAW files, developed by independent software you get barrel distortion of −1.09%. The software of the camera considers that level to be so high that it switches the correction on and for JPEG files the aberration decreases to −0.25%.

As you see there are no reasons to complain seriously but still you can be a tad fussy. A lens with an angle of view of 20-30 degrees shouldn’t have any distortion whatsoever. An absolute value of geometric deformations higher than 1% is already visible on photos and the Panasonic, unfortunately, exceeds that value while its direct rivals don’t.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

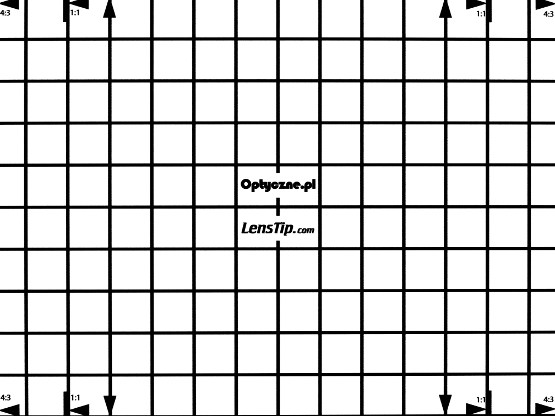

Olympus E-PL1, JPEG
Panasonic G 42.5 mm f/1.7 ASPH. POWER O.I.S. - Distortion
Olympus E-PL1, RAW
Panasonic G 42.5 mm f/1.7 ASPH. POWER O.I.S. - Distortion
