LensTip.com

Lens review

Samyang 135 mm f/2.0 ED UMC

5 July 2015
Arkadiusz Olech

8. Vignetting

First let’s check how the Samyang 2/135 fares in this category when tested on a small sensor of the Canon 50D – the appropriate thumbnails are presented below.

Canon 50D, f/2.0 Canon 50D, f/2.8
Samyang 135 mm f/2.0 ED UMC - Vignetting Samyang 135 mm f/2.0 ED UMC - Vignetting


In this case the vignetting is not bothersome. At the maximum relative aperture it amounts to 24% (−0.78 EV) and could be considered moderate. The problem disappears completely by f/2.8 where the vignetting decreases to 8% (−0.26 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s see how the situation changes of full frame.

Canon 5D III, f/2.0 Canon 5D III, f/2.8
Samyang 135 mm f/2.0 ED UMC - Vignetting Samyang 135 mm f/2.0 ED UMC - Vignetting
Canon 5D III, f/4.0 Canon 5D III, f/5.6
Samyang 135 mm f/2.0 ED UMC - Vignetting Samyang 135 mm f/2.0 ED UMC - Vignetting

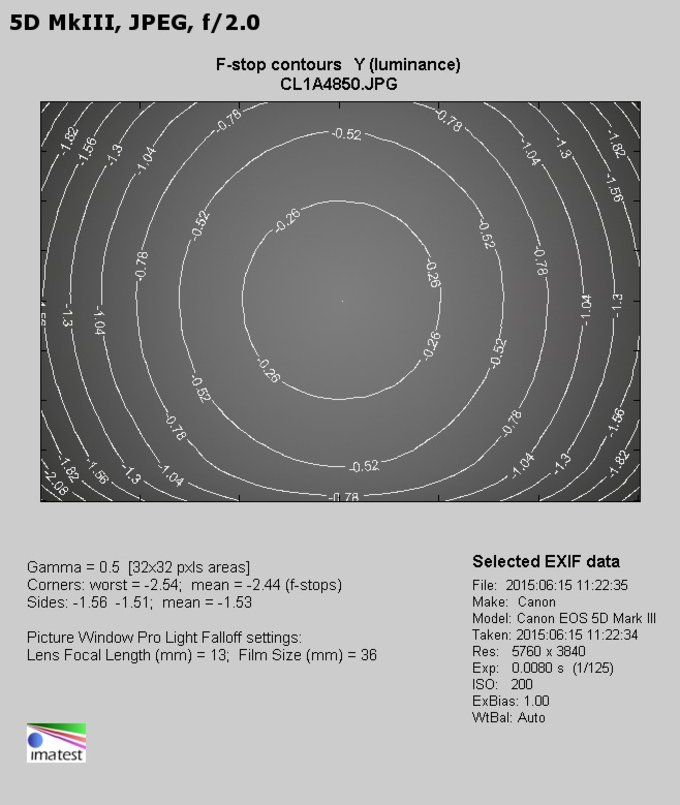

Here the problems are much more serious. At the maximum aperture you have to take into account the loss of 57% (−2.44 EV) of light in the frame corners. It is really a lot. In the case of the Zeiss Apo Sonnar 2/135 it was 38% and the brightness loss of the Canon amounted to 49%. Vignetting seems to be the first category where the Samyang is defeated by its rivals.

The vignetting can be also noticed without any problems by f/2.8 where we got a result of 32% (−1.13 EV). A low level of that aberration you see by f/4.0 where it reaches 19% (−0.60 EV) and by f/5.6 the problem disappears almost completely (10%).

Samyang 135 mm f/2.0 ED UMC - Vignetting
