LensTip.com

Lens review

Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR

4 August 2015
Arkadiusz Olech

6. Distortion

While using the Nikkor AF-S 80–400 VR on the small APS-C/DX sensor the distortion problem won’t be felt at all. The absolute value of that aberration doesn’t exceed a very low level of 0.6% at any place. Out of our chronicle duty we list here values we got at 80, 135, 200, 300 and 400 mm focal lengths. They are, respectively: −0.15%, +0.39%, +0.43%, +0.49% and +0.52%.

On full frame those numbers are higher but still there is nothing to complain about. This time at 80,135, 200, 300 and 400 mm we got the following results: −0.42%, +0.68%, +0.97%, +1.06% i +1.16%.

The Nikkor deserves to be praised here: despite a wider focal range it was able to control geometric deformations better than the new Canon 100-400L II as its distortion at the bigger focal length reached +1.34% and at 100 mm it was −0.97%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

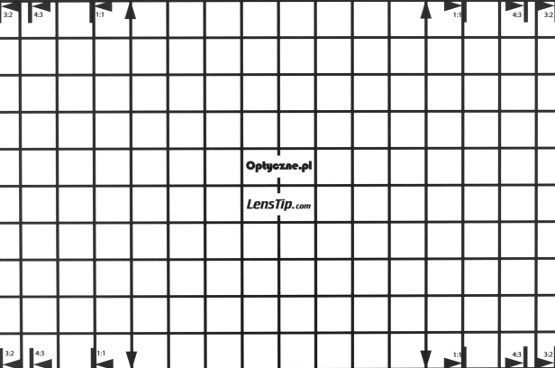

Nikon D7000, 80 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion

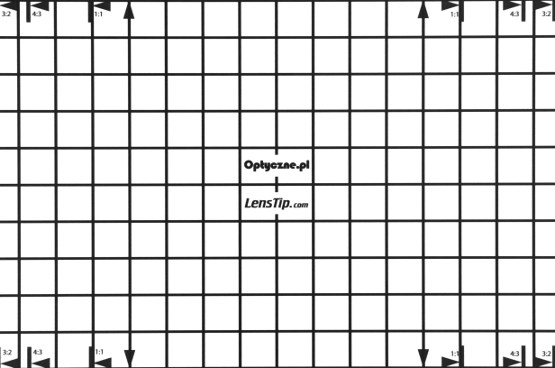

Nikon D7000, 135 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion
Nikon D7000, 200 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion
Nikon D7000, 300 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion
Nikon D7000, 400 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion

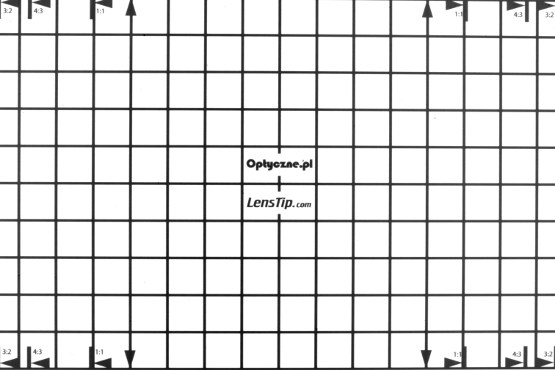

Nikon D3x, 80 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion

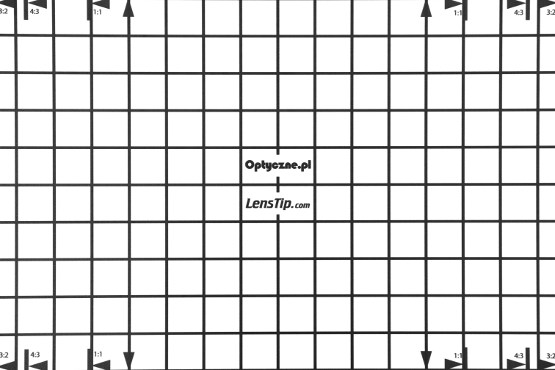

Nikon D3x, 135 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion

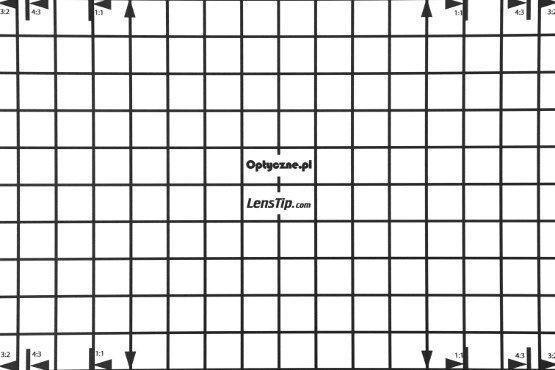

Nikon D3x, 200 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion

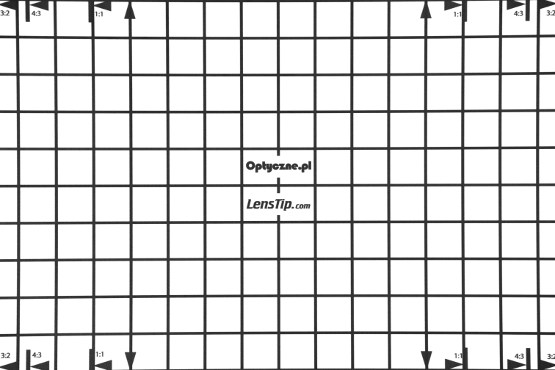

Nikon D3x, 300 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion

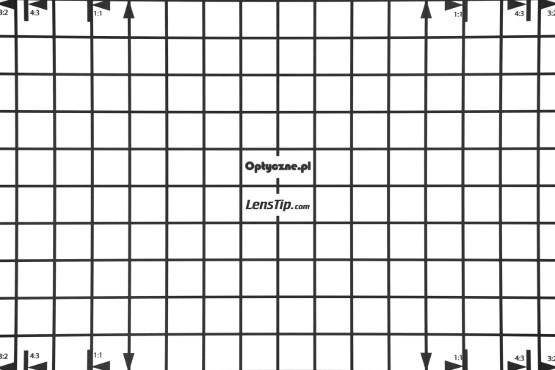

Nikon D3x, 400 mm
Nikon Nikkor AF-S 80-400 mm f/4.5-5.6G ED VR - Distortion
