Lens review

Fujifilm Fujinon XF 16 mm f/1.4 R WR

12 August 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

Unfortunately the tested lens experiences a lot of problems connected to the longitudinal chromatic aberration correction. What’s more, even after stopping the aperture down to f/2.0, they still remain quite bothersome.

Fujifilm Fujinon XF 16 mm f/1.4 R WR - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

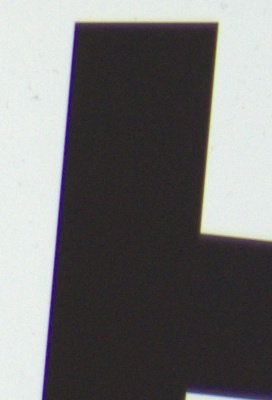

The situation concerning the lateral chromatic aberration is better – the graph below shows the performance of the lens depending on aperture values.

Fujifilm Fujinon XF 16 mm f/1.4 R WR - Chromatic and spherical aberration


Results of 0.07% are nothing to worry about; such a level we consider low. It’s also worth noticing that near the maximum relative aperture we saw the same values on both sides of the frame. On stopping down the aperture to f/2.8 and more the aberration on the right side of the frame became a bit higher (about 0.10-0.11%) than on the left side, where it dropped to 0.04-0.05%. Those results, though, can be still called low enough not to cause any visible differences in resolution between both sides of the frame.

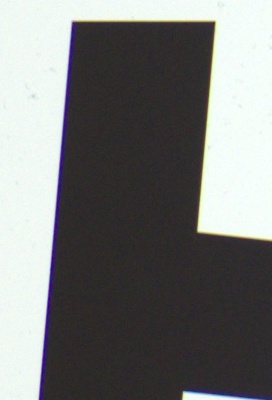

Fujifilm X-E1, f/1.4 Fujifilm X-E1, f/2.0
Fujifilm Fujinon XF 16 mm f/1.4 R WR - Chromatic and spherical aberration Fujifilm Fujinon XF 16 mm f/1.4 R WR - Chromatic and spherical aberration



Spherical aberration

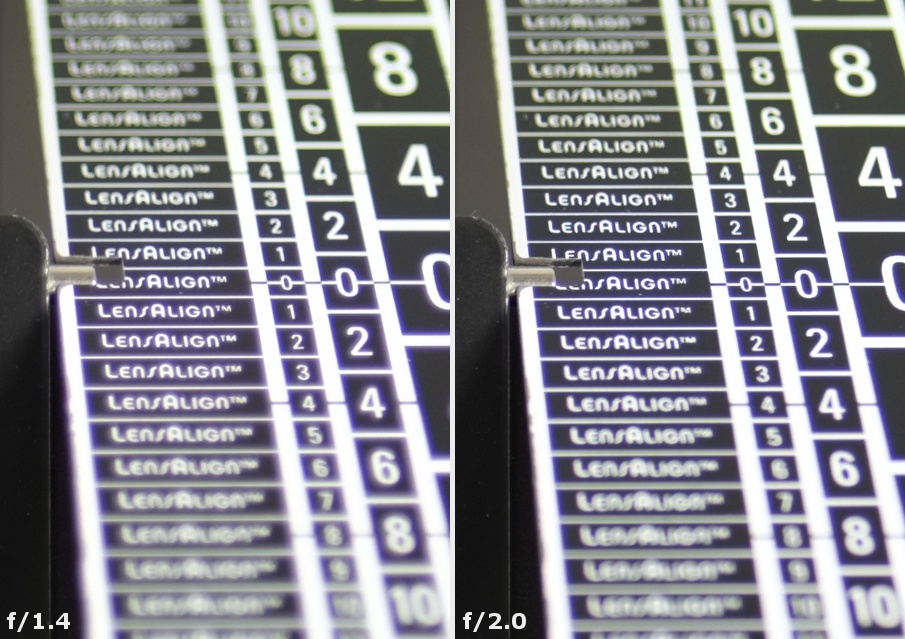

The tested lens doesn’t have any ‘focus shift’ effect but, when you pass from f/1.4 to f/2.0, you can notice a slight depth of field shift toward objects situated further away. Also the appearance of defocused images remains far from perfect. The circles of light practically show a textbook example of the influence of spherical aberration – on the one side of the focal plane the circle has soft edges, on the other side you see a noticeable rim. The Fujinon’s XF 1.4/16 correction of that aberration is certainly far from perfect.

Fujifilm X-E1, f/1.4, in front of Fujifilm X-E1, f/1.4, behind
Fujifilm Fujinon XF 16 mm f/1.4 R WR - Chromatic and spherical aberration Fujifilm Fujinon XF 16 mm f/1.4 R WR - Chromatic and spherical aberration
