LensTip.com

Lens review

Fujifilm Fujinon XF 16 mm f/1.4 R WR

12 August 2015
Arkadiusz Olech

8. Vignetting

Let’s check how the tested lens performs in this category both in JPEG and RAW files developed by using independent software.

X-E1, JPEG, f/1.4 X-E1, RAW, f/1.4
Fujifilm Fujinon XF 16 mm f/1.4 R WR - Vignetting Fujifilm Fujinon XF 16 mm f/1.4 R WR - Vignetting
X-E1, JPEG, f/2.0 X-E1, RAW, f/2.0
Fujifilm Fujinon XF 16 mm f/1.4 R WR - Vignetting Fujifilm Fujinon XF 16 mm f/1.4 R WR - Vignetting
X-E1, JPEG, f/2.8 X-E1, RAW, f/2.8
Fujifilm Fujinon XF 16 mm f/1.4 R WR - Vignetting Fujifilm Fujinon XF 16 mm f/1.4 R WR - Vignetting


As long as you work with JPEG files the vignetting shouldn’t be especially bothersome. At the maximum relative aperture we saw light fall-off reaching 26% (−0.88 EV). Stopping down the aperture to f/2.0 changed almost nothing because the vignetting amounted to 20% (−0.63 EV). That aberration disappeared by f/2.8 and f/4.0 apertures, being respectively 12% (−0.37 EV) and 10% (−0.30 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

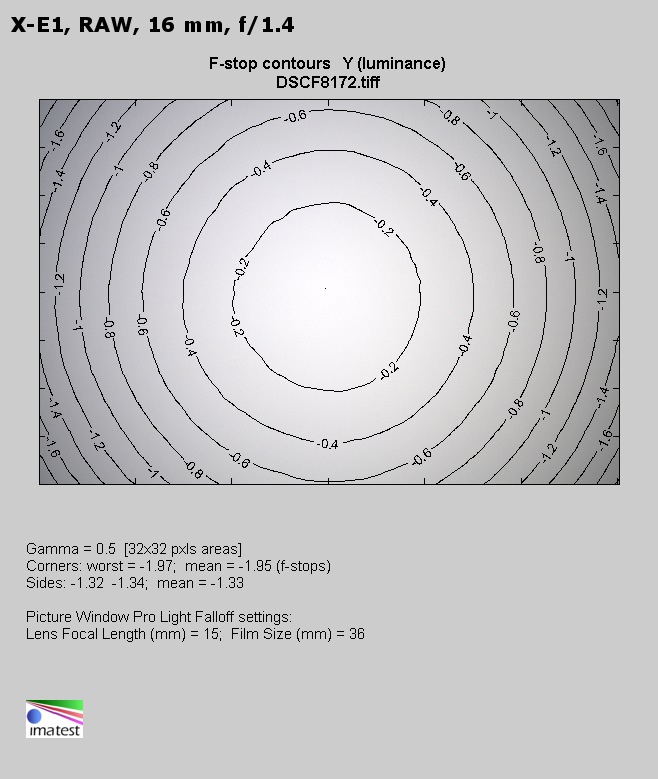

The problems start when you progress to RAW files. At the maximum relative aperture the losses of light are as significant as 49% (−1.94 EV) – that’s a lot. Still the rivals designed for smaller sensors such as the Canon 1.4/24L II, the Sigma A 1.4/24 or the Samyang 1.4/24 had the vignetting exceeding even 60%. The Nikkor AF-S 1.4/24 which was the best in this group, had a result of 54%, so a tad worse than that of the Fujinon too.

When you stop down the aperture to f/2.0, the vignetting decreases to 34% (−1.18 EV); a sensible situation can be observed by f/2.8 where that aberration decreases to 20% (−0.66 EV). Further stopping down doesn’t help much: by f/4.0 and f/5.6 we got the same value of 18% (−0.56 EV).

Fujifilm Fujinon XF 16 mm f/1.4 R WR - Vignetting
