Canon EF-S 18-135 mm f/3.5-5.6 IS STM

21 September 2015
Arkadiusz Olech

8. Vignetting

In order to assess property how the Canon 18-135 mm STM deals with the vignetting while cooperating with the sensor of the Canon 50D let’s look at thumbnails below.

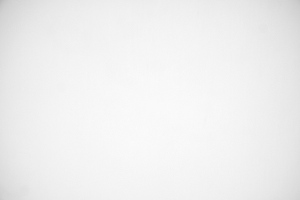

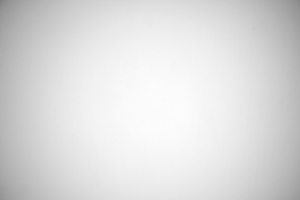

Canon 50D, 18 mm, f/3.5 Canon 50D, 18 mm, f/5.6
Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting

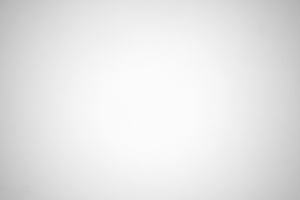

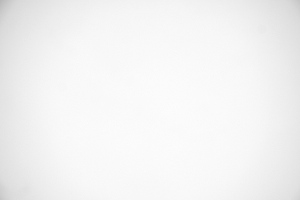

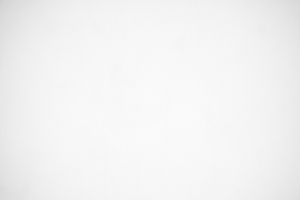

Canon 50D, 35 mm, f/4.5 Canon 50D, 35 mm, f/5.6
Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting

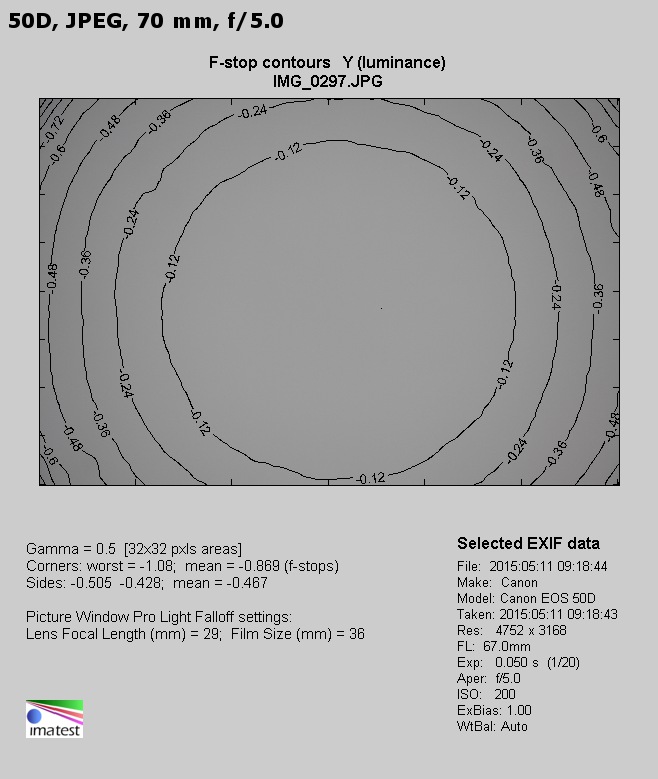

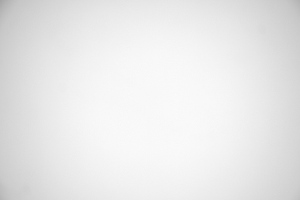

Canon 50D, 70 mm, f/5.0 Canon 50D, 70 mm, f/5.6
Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting

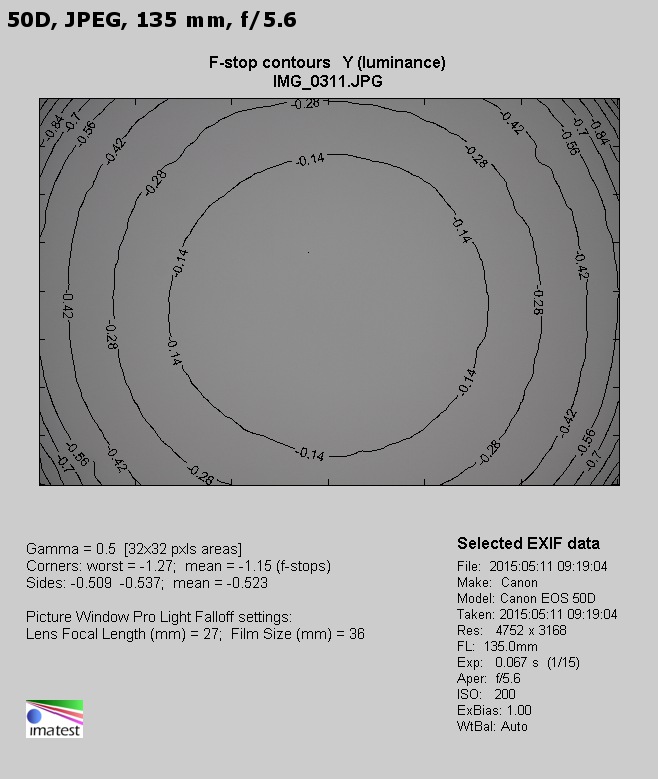

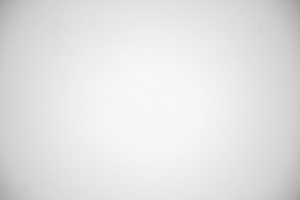

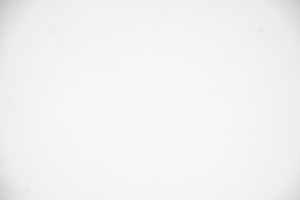

Canon 50D, 135 mm, f/5.6 Canon 50D, 135 mm, f/8.0
Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting Canon EF-S 18-135 mm f/3.5-5.6 IS STM - Vignetting

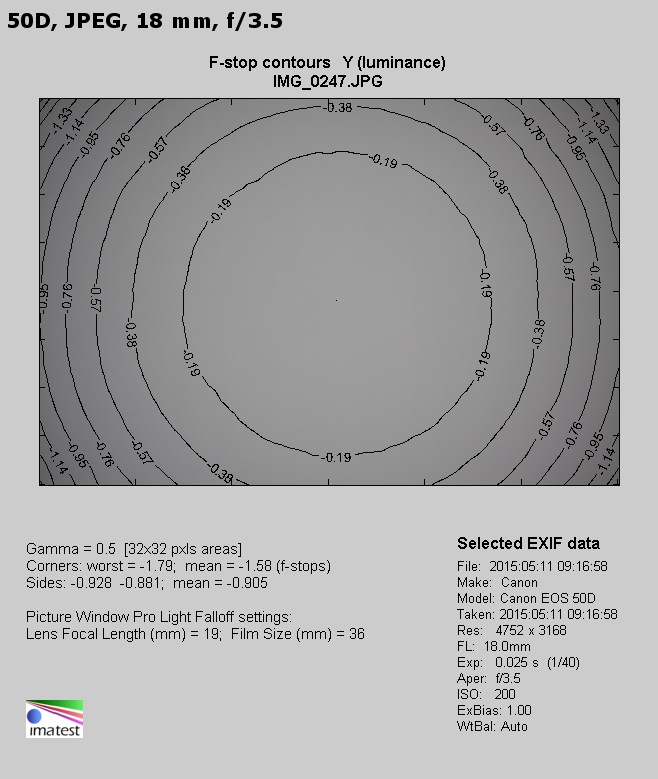

At the combination of 18 mm and f/3.5 aperture the vignetting level is high, amounting to 42% (−1.58 EV). It is a slightly better result than that of the tested lens’s predecessor but still it remains worse than that of the Nikkor AF-S DX 18–140 mm f/3.5–5.6G ED VR, which had  37% of vignetting. By f/4.0 the vignetting drops to a value of 34% (−1.21 EV), and by f/5.6 it decreases further to 18% (−0.57 EV). By f/8 and f/11 apertures that aberration diminishes to 13% (−0.39 EV).


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

A distinct decrease of vignetting can be observed at the 35 mm focal length where, at the maximum relative aperture, it reaches 27% (−0.91 EV) and then by f/5.6 it decreases to a very slight value of 13% (−0.40 EV). By f/8.0 that aberration becomes already imperceptible reaching only 8% (−0.23 EV).

A similar situation you see at the 70 mm focal length where, at the maximum relative aperture, the brightness loss in the frame corners is 26% (−0.87 EV), decreasing to 19% (−0.62 EV) by f/5.6. Once again by f/8.0 that aberration stops being perceptible as its level decreases to 9% (−0.28 EV).

The vignetting increases a bit once more at 135 mm where, by f/5.6 it reaches 33% (-1.15 EV) and by f/8.0 it gets near 16% (−0.52 EV). By f/11 those problems end because the value measured by us at that point amounted to 9% (−0.29 EV).
