Lens review

Sigma C 30 mm f/1.4 DC DN

14 June 2016
Arkadiusz Olech

8. Vignetting

Let’s look at thumbnails presented below – they will allow you to assess the vignetting performance of the tested lens for JPEG files.

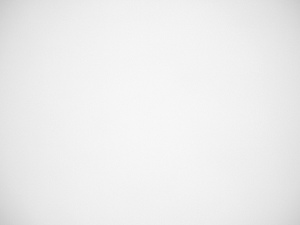

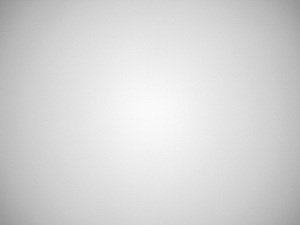

Olympus E-PL1, f/1.4 Olympus E-PL1, f/2.0
Sigma C 30 mm f/1.4 DC DN - Vignetting Sigma C 30 mm f/1.4 DC DN - Vignetting

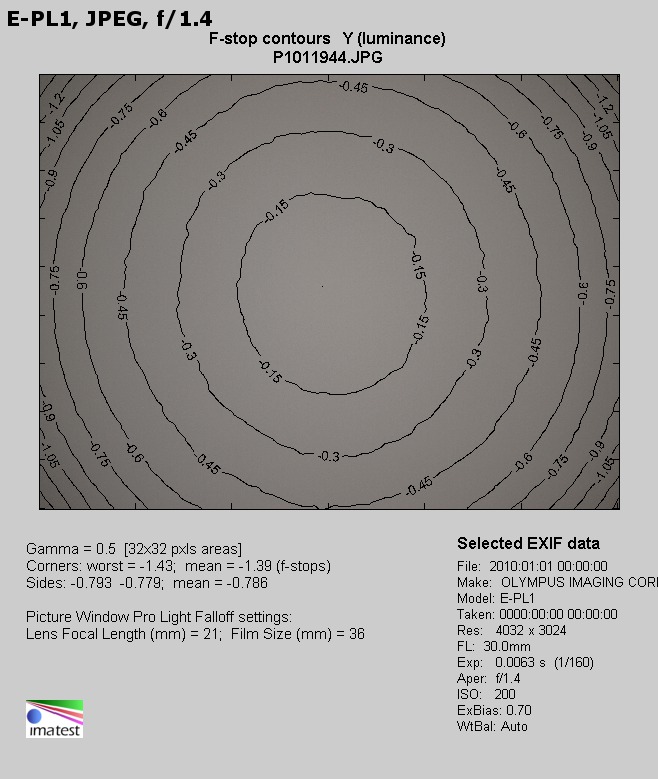

At the maximum relative aperture the brightness loss in frame corners amounts to 38% (−1.39 EV). That value can be hardly called low especially if you take into account the fact that the Sigma was designed to cooperate with APS-C/DX sensors. On the other hand it still remains by 11% lower than the vignetting of the Panaleica 1.4/25.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Fortunately the vignetting decreases very quickly on stopping down. By f/2.0 you get to 16% (−0.51 EV), and by f/2.8 its level becomes imperceptible (7% and −0.22 EV).

In the case of RAW files the results are very similar, not differing from the values we got for JPEG files by more than 2–3%.

Sigma C 30 mm f/1.4 DC DN - Vignetting
