LensTip.com

Lens review

Carl Zeiss Otus 28 mm f/1.4

14 August 2016
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

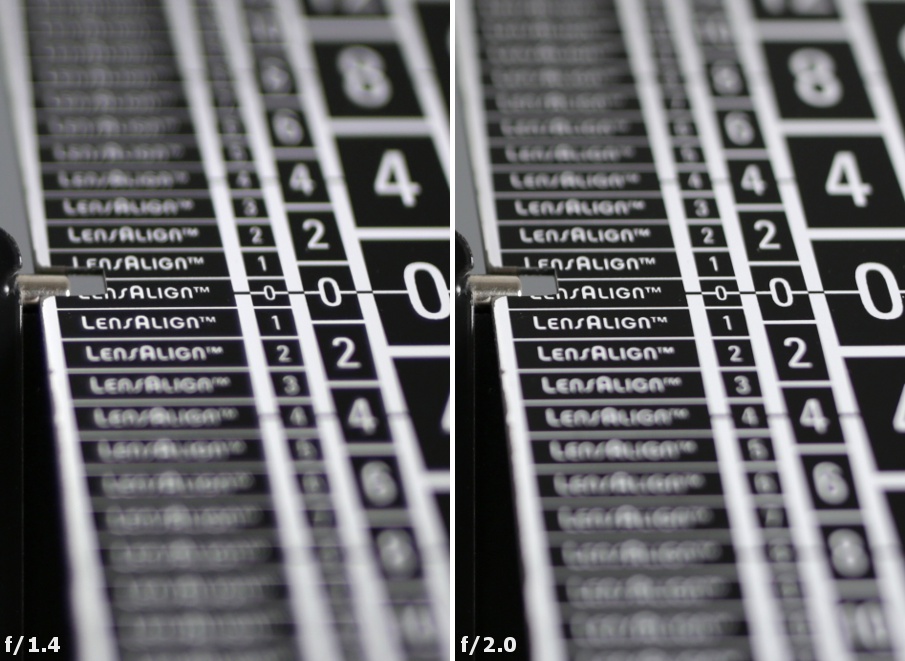

You have to look really long and hard at crops presented below to notice even traces of colouring in out-of-focus images. It means the Otus 1.4/28 deals with the longitudinal chromatic aberration exceedingly well.

Carl Zeiss Otus 28 mm f/1.4 - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

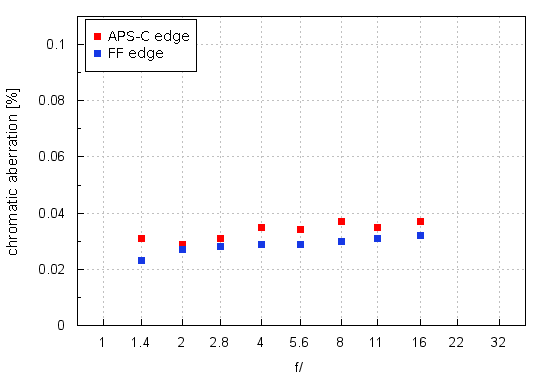

The graph below shows the performance of the tested lens when it comes to the correction of the lateral chromatic aberration.

Carl Zeiss Otus 28 mm f/1.4 - Chromatic and spherical aberration


The situation here is very similar to the one concerning the longitudinal variation of this aberration. Most of results stay near 0.03% - a very low level in our opinion. It means it would be hard to notice any of these chromatic aberrations in real life photos.

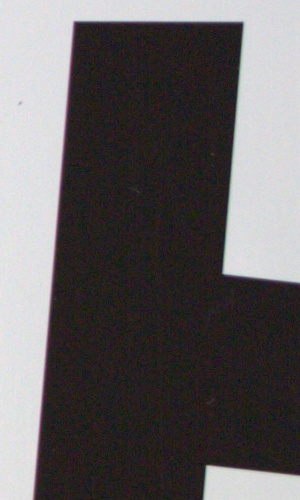

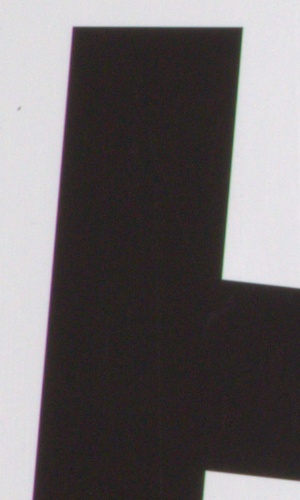

Canon 5D III, f/1.4 Canon 5D III, f/16.0
Carl Zeiss Otus 28 mm f/1.4 - Chromatic and spherical aberration Carl Zeiss Otus 28 mm f/1.4 - Chromatic and spherical aberration



Spherical aberration

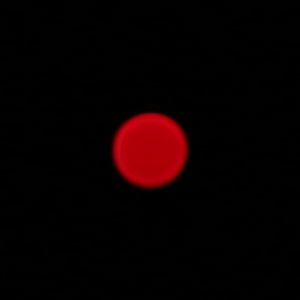

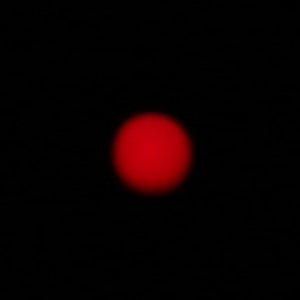

First photos of this chapter don’t show any ‘focus shift’ effect so the level of spherical aberration cannot be really high. Still if you consult defocused light circles we got in front of and behind the focal point you might notice there are some problems. One of the circles has distinctly lighter edges and the second one becomes darker when you approach the edge of the circle. It is a classic symptom of spherical aberration not corrected as well as it should be.

Canon 5D III, f/1.4, in front of Canon 5D III, f/1.4, behind
Carl Zeiss Otus 28 mm f/1.4 - Chromatic and spherical aberration Carl Zeiss Otus 28 mm f/1.4 - Chromatic and spherical aberration
