LensTip.com

Lens review

Carl Zeiss Otus 28 mm f/1.4

14 August 2016
Arkadiusz Olech

6. Distortion

In the chart below we present results of different 28 mm full frame lenses in the distortion category.


Zeiss
Otus 1.4/28
Nikkor
AF-S 1.8/28G
Canon
EF 1.8/28
Canon
EF 2.8/28 IS
Sigma
1.8/28
Voigtlander
2.8/28
APS-C/DX
–0.67%
−0.86%
−1.19%
−0.92%
−1.23%
−0.99%
FF
−1.39%
−1.13%
−1.85%
−1.53%
−1.63%
−1.54%


As you see the level is evened out – all lenses, listed here, get slight barrel distortion on full frame, ranging from −2% to −1%. Two lens stick out in a positive way: the Nikkor AF-S 28 mm f/1.8G ED and the Otus 1.4/28. The first one has the lowest result on full frame and the other one – on the smaller detector.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

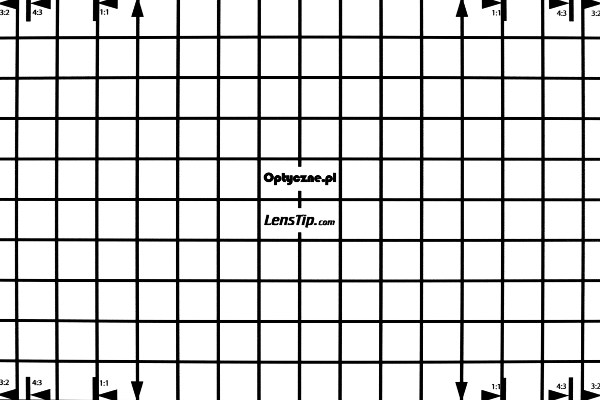

Canon 50D, 28 mm
Carl Zeiss Otus 28 mm f/1.4 - Distortion

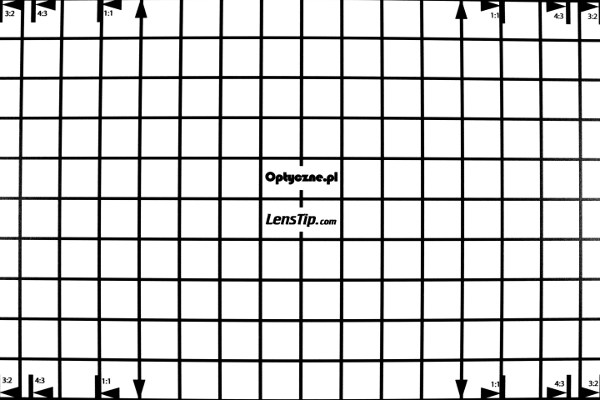

Canon 5D MkIII, 28 mm
Carl Zeiss Otus 28 mm f/1.4 - Distortion
