Lens review

Sigma A 85 mm f/1.4 DG HSM

16 November 2016
Arkadiusz Olech

8. Vignetting

First let’s check how the tested Sigma A 1.4/85 deals with vignetting on a small sensor of the Canon 50D – appropriate thumbnails you can find below.

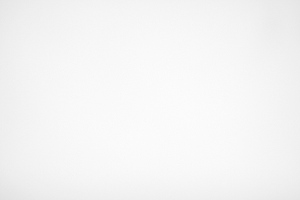

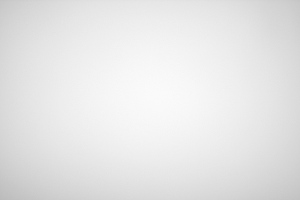

Canon 50D, f/1.4 Canon 50D, f/2.0
Sigma A 85 mm f/1.4 DG HSM - Vignetting Sigma A 85 mm f/1.4 DG HSM - Vignetting

The vignetting is not bothersome even at the maximum relative aperture because it reaches just 22% (−0.72 EV). The problem disappears completely on stopping down the aperture to f/2.0 where its value decreases to 8% (−0.25 EV).

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s check the situation on full frame.

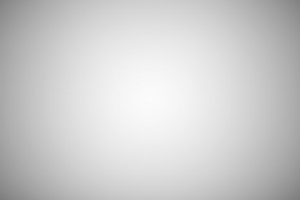

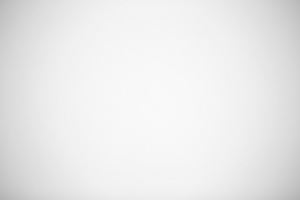

Canon 5D III, f/1.4 Canon 5D III, f/2.0
Sigma A 85 mm f/1.4 DG HSM - Vignetting Sigma A 85 mm f/1.4 DG HSM - Vignetting

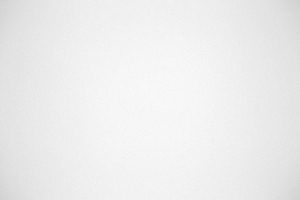

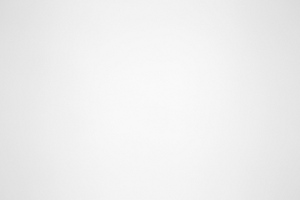

Canon 5D III, f/2.8 Canon 5D III, f/4.0
Sigma A 85 mm f/1.4 DG HSM - Vignetting Sigma A 85 mm f/1.4 DG HSM - Vignetting

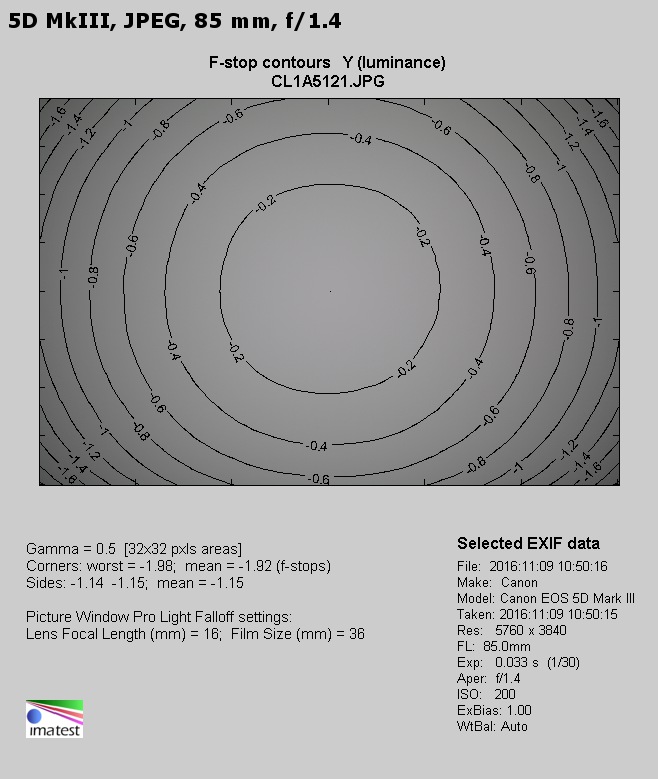

In this case, at the maximum relative aperture the vignetting is high, reaching 49% (−1.92 EV). Should you criticize the Sigma A 1.4/85 for it? Perhaps you should but not very harshly. It still fares noticeably better than both Zeisses and, within the margin of error, is exactly as good as the Nikkor AF-S 1.4/85G. What’s interesting, the older Sigma EX 1.4/85 remains a role model in this category as it is still the best of all the group.

Fortunately by f/2.0 the vignetting becomes slight, reaching just 27% (−0.89 EV) and by f/2.8 the problem becomes negligible (15% and −0.46 EV).

Further stopping down of aperture doesn’t influence the brightness loss in the frame corners in a significant way. By f/4.0 and f/5.6 we got an identical result of 11% (−0.34 EV).

Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value expressed in percents for every image shows the area limited from the top and right by 100% and from the bottom by the presented curve. The area shows how much light overall is lost due to the vignetting effect. Please don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected.

Sigma A 85 mm f/1.4 DG HSM - Vignetting

f/1.4 f/2 f/2.8

Sigma A 85 mm f/1.4 DG HSM - Vignetting
