8. Vignetting

First let’s check the performance of the Sigma A 1.8/135 on the smaller sensor of the Canon 50D – appropriate thumbnails can be found below.

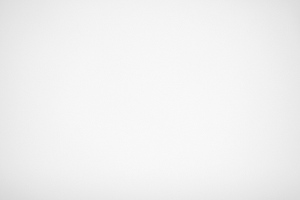

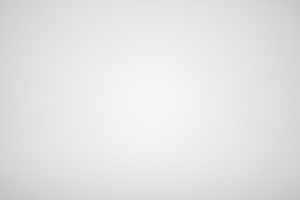

Canon 50D, f/1.8 Canon 50D, f/2.0
Sigma A 135 mm f/1.8 DG HSM - Vignetting Sigma A 135 mm f/1.8 DG HSM - Vignetting


Even at the maximum relative aperture the vignetting level can hardly be called bothersome, reaching just 19% (−0.61 EV). The problem disappears practically completely on stopping down the aperture to f/2.0 where it decreases to 11% (−0.34 EV); by f/2.8 it becomes completely invisible being just 5% (−0.14 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s see how the situation changes on full frame.

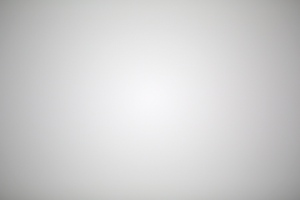

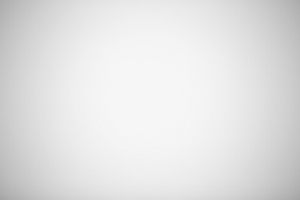

Canon 5D III, f/1.8 Canon 5D III, f/2.0
Sigma A 135 mm f/1.8 DG HSM - Vignetting Sigma A 135 mm f/1.8 DG HSM - Vignetting

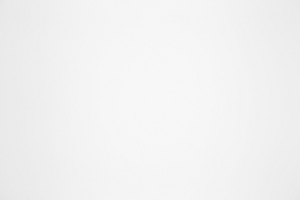

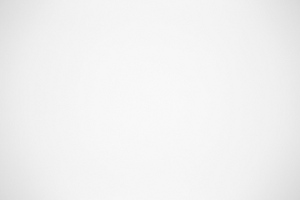

Canon 5D III, f/2.8 Canon 5D III, f/4.0
Sigma A 135 mm f/1.8 DG HSM - Vignetting Sigma A 135 mm f/1.8 DG HSM - Vignetting


At the maximum relative aperture the brightness loss in the frame corners reaches 42% (−1.56 EV). Even though the result is high, the tested lens actually fares better than the slower Canon and Samyang. The vignetting level of the Zeiss Apo Sonnar was a bit lower but that lens features a slower aperture. If you stop down the Sigma to f/2.0 its vignetting level drops to 31% (−1.08 EV) so it fares better than the Zeiss by f/2.0. By f/2.8 the vignetting problem becomes negligible as it reaches just 12% (−0.37 EV), and by f/4.0 it disappears practically completely (7% and −0.20 EV).

Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value for every image, expressed in percents, shows the area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected.

Sigma A 135 mm f/1.8 DG HSM - Vignetting

f/1.8 f/2 f/2.8

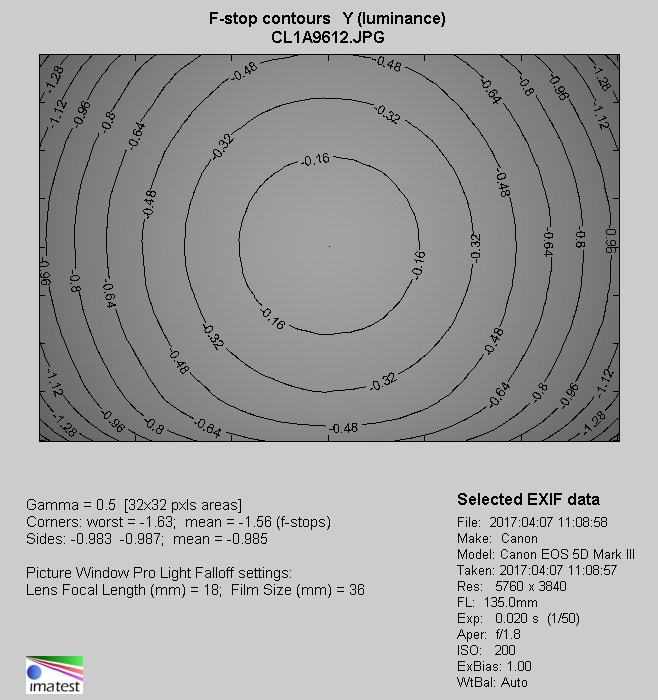

Canon 5D Mk III, JPEG, f/1.8
Sigma A 135 mm f/1.8 DG HSM - Vignetting
