Lens review

Sigma A 135 mm f/1.8 DG HSM

14 April 2017
Arkadiusz Olech

4. Image resolution

The resolution test (resolution meaning here the MTF50 function values) of the Sigma A 135 mm f/1.8 DG HSM was based on RAW files from the Canon EOS 5D Mark III. In the case of that reflex camera the decency level is situated near 30-32 lpmm and the best fixe-focal lenses can reach as high as 45-48 lpmm. You should also add that the resolution record on that sensor not so long ago belonged to the Zeiss Otus 1.4/28 (49.2 lpmm), but then was beaten by the Sigma A 85 mm f/1.4 DG HSM and currently amounts to 49.7 lpmm just a tad higher.

Let’s compare to that the result of another fixed-focal Sigma prime; the values we got in the frame centre, on the edge of the APS-C/DX and on the edge of the full frame presents a graph below.

Sigma A 135 mm f/1.8 DG HSM - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Honestly, what I am supposed to write here? My admiration scale ended with the Sigma A 1.4/85 and the results of this lens are even better…Let me word it this way: if the Sigma in the frame centre performed as well as on the edge of full frame I would still enthuse about what a brilliant lens fell into my hands. Mind you in the centre the Sigma is noticeably sharper than on the edge.

Out of chronicle’s duty I add that the new record reached by the tested lens by f/2.8 amounts to 51.6 lpmm. The introduction to this chapter is going to be modified again.

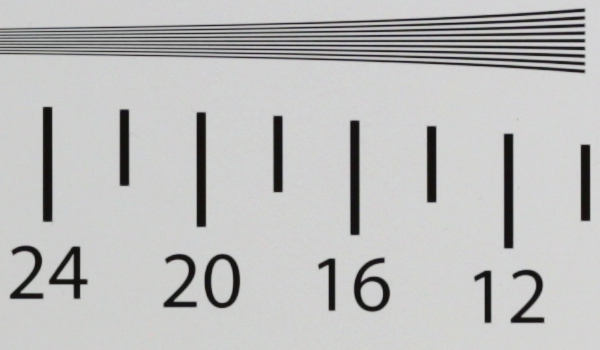

At the end of this chapter traditionally we present crops taken from photos of our resolution testing scene saved as JPEG files.

Canon 5D MkIII, JPEG, 135 mm, f/1.8
Sigma A 135 mm f/1.8 DG HSM - Image resolution
Canon 5D MkIII, JPEG, 135 mm, f/2.8
Sigma A 135 mm f/1.8 DG HSM - Image resolution
