Lens review

Sigma A 24-70 mm f/2.8 DG OS HSM

28 July 2017
Arkadiusz Olech

8. Vignetting

First, let's check how the Sigma A 24-70 mm f/2.8 fares on the APS-C sensor of the Canon 50D – appropriate thumbnails are shown below.

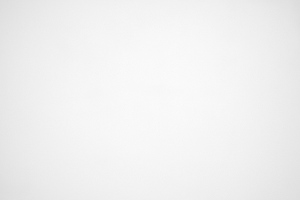

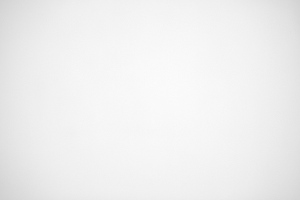

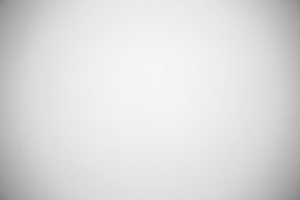

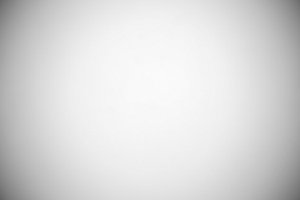

Canon 50D, 24 mm, f/2.8 Canon 50D, 24 mm, f/4.0
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting

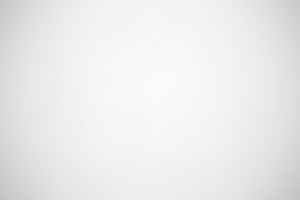

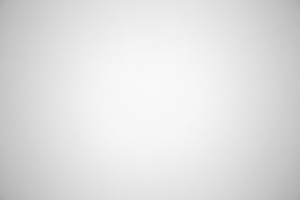

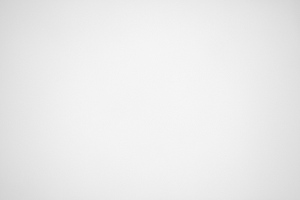

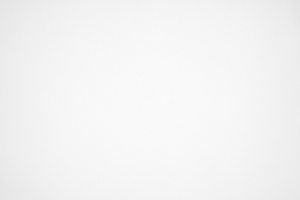

Canon 50D, 45 mm, f/2.8 Canon 50D, 45 mm, f/4.0
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting

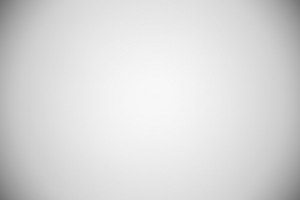

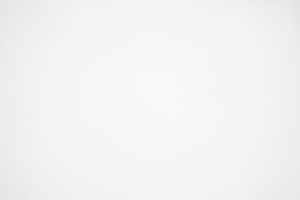

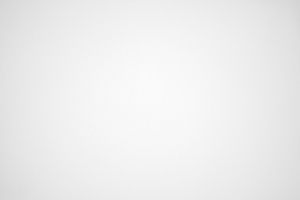

Canon 50D, 70 mm, f/2.8 Canon 50D, 70 mm, f/4.0
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting


There is really no need to worry. At a difficult combination of the 24 mm focal length and f/2.8 aperture the brightness loss in frame corners amounts to just 15% (−0.48 EV); then it decreases to 11% (−0.34 EV) on stopping down the aperture to f/4.0. The middle of the focal range is even better – at the maximum relative aperture the vignetting reaches 13% (−0.40 EV) and it decreases to 8% (−0.24 EV) on stopping down the aperture to f/4.0.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The maximum focal length doesn't differ much from the performance in the middle of the range. By f/2.8 the vignetting is 14% (-0.44 EV) and by f/4.0 it decreases to an imperceptible value of 7% (-0.22 EV).

Now let's check how the tested lens performed on full frame of the Canon 5D Mark III.

Canon 5D III, 24 mm, f/2.8 Canon 5D III, 24 mm, f/4.0
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting
Canon 5D III, 45 mm, f/2.8 Canon 5D III, 45 mm, f/4.0
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting
Canon 5D III, 70 mm, f/2.8 Canon 5D III, 70 mm, f/4.0
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting


There far more problems at that point. The combination of wide angle and the maximum relative aperture means the loss of 57% (−2.41 EV) of light in frame corners. It is a result worse than that of the stabilized Nikkor, a tad weaker than that of the Tokina but better than that of the Canon and the Tamron. The Sigma's vignetting levels decrease slowly on stopping down. By f/4.0, f/5.6, f/8.0 and f/11.0, we got respetively: 44% (−1.66 EV), 36% (−1.31 EV), 32% (−1.10 EV) and 27% (−0.92 EV).

In the middle of the focal lengths range the vignetting is lower so at the maximum relative aperture it amounted to 31% (−1.05 EV). On stopping down the lens to f/4.0 its level decreased to 21% (−0.68 EV) and by f/5.6 it got to 15% (−0.47 EV); further stopping down didn't produce any measureable effect.

The maximum focal length means the return of vignetting problems – by f/2.8 that aberration reaches 52% (−2.14 EV) constituting, next to the Tamron, the worst result among all lenses compared here. By f/4.0 it decreases to 30% (−1.05 EV) and by f/5.6 it is 16% (−0.52 EV). By f/8.0 and f/11.0 the brightness loss amounts to just 13% (−0.39 EV).

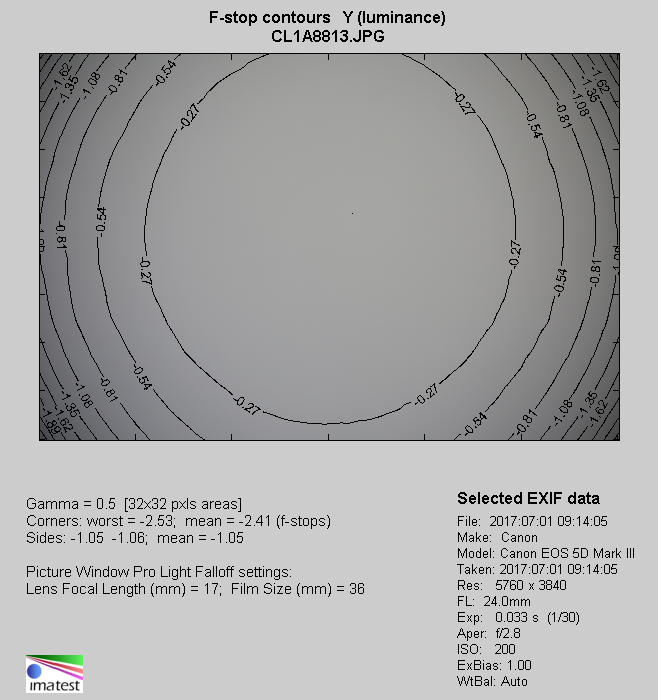

Canon 5D Mk III, 24 mm, f/2.8
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting

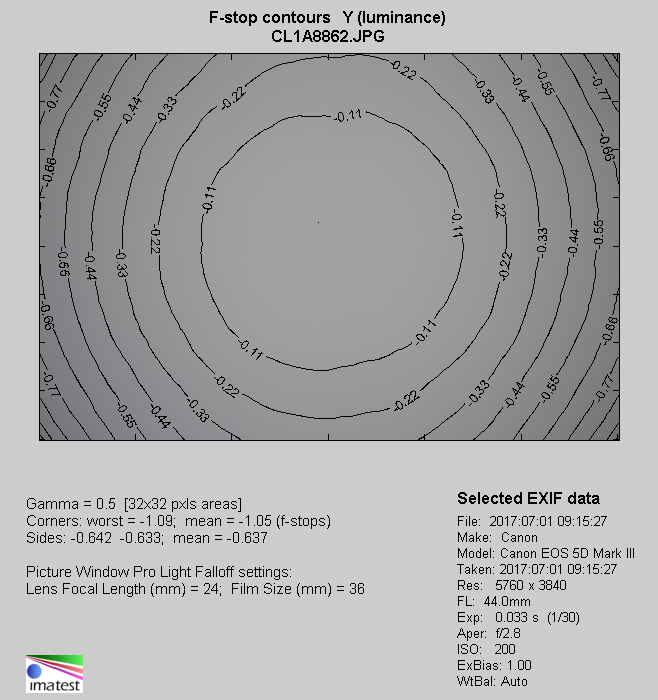

Canon 5D Mk III, 45 mm, f/2.8
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting

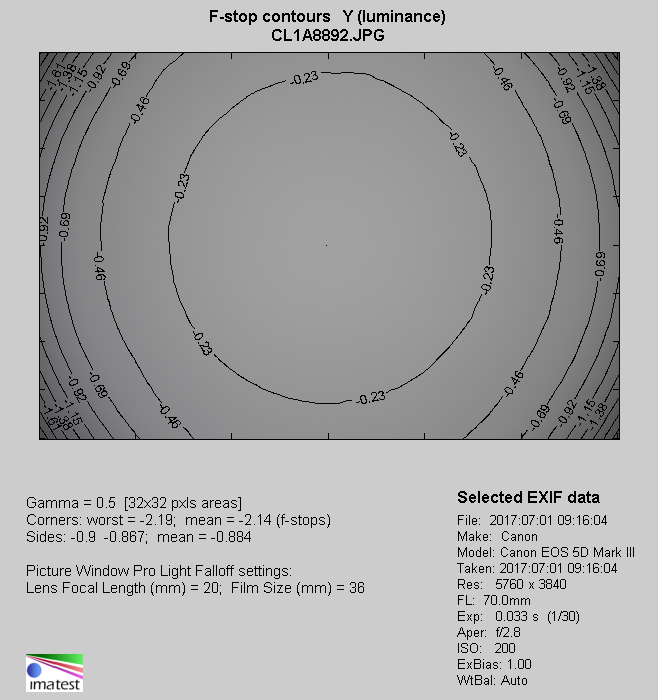

Canon 5D Mk III, 70 mm, f/2.8
Sigma A 24-70 mm f/2.8 DG OS HSM - Vignetting
