Nikon Nikkor AF-S 500 mm f/5.6E PF ED VR

12 September 2018
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

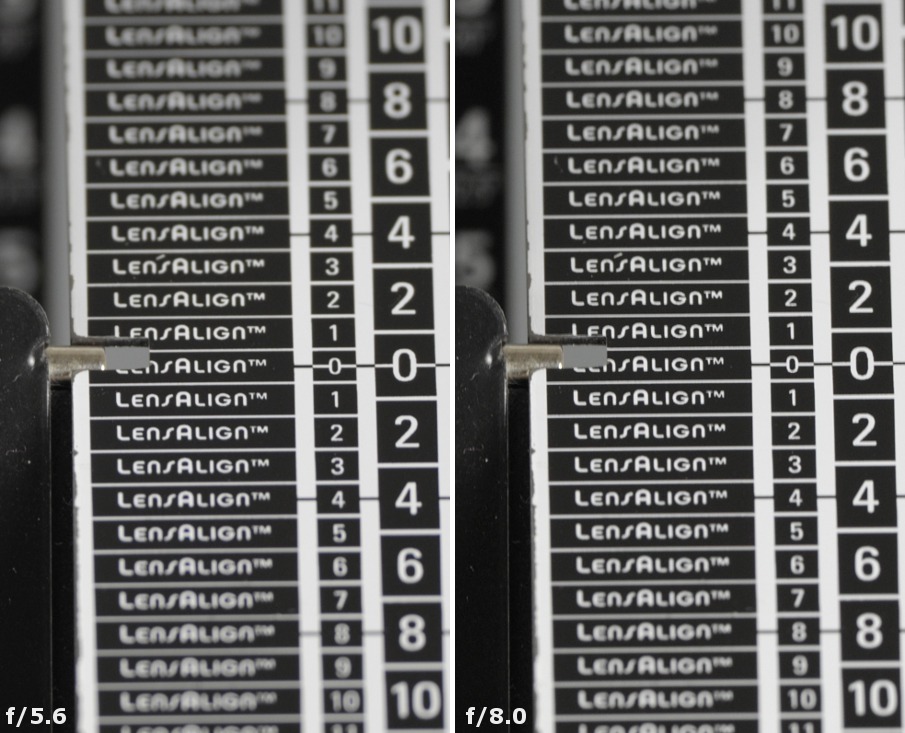

If you remind yourself that the correction of longitudinal chromatic aberration is helped by not only three ED elements but also by the Phase Fresnel technology you won’t be surprised by the results showed in photos below. There are no traces of that aberration even in out-of-focus areas positioned far away at the maximum relative aperture.

Nikon Nikkor AF-S 500 mm f/5.6E PF ED VR - Chromatic and spherical aberration

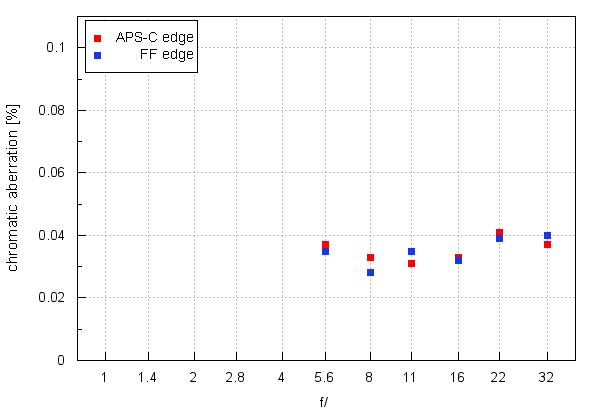

The correction of lateral chromatic aberration should be described in similar terms. Its performance, depending on aperture, for both types of detectors, presents a graph, shown below.

Nikon Nikkor AF-S 500 mm f/5.6E PF ED VR - Chromatic and spherical aberration


The results are ranging from 0.03 to 0.04% and it’s a very low level; it means you won’t notice that aberration in real life photos. A round of applause!


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

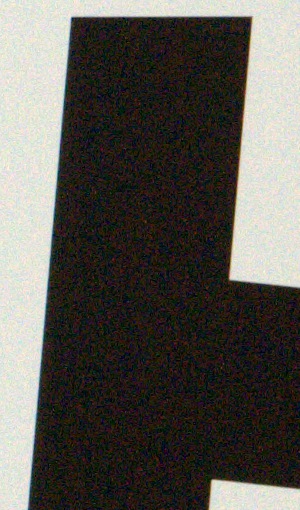

Nikon D3x, RAW, f/5.6 Nikon D3x, RAW, f/8.0
Nikon Nikkor AF-S 500 mm f/5.6E PF ED VR - Chromatic and spherical aberration Nikon Nikkor AF-S 500 mm f/5.6E PF ED VR - Chromatic and spherical aberration


Spherical aberration

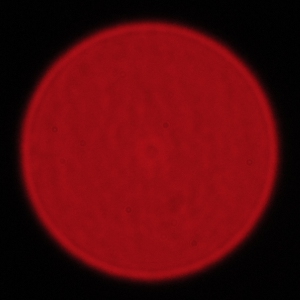

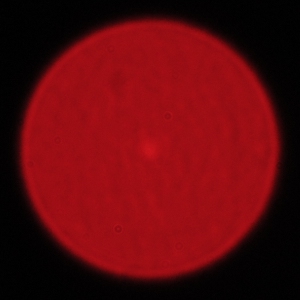

The tested lens didn’t have any problems with focus shift as it is clearly seen in photos beginning this chapter. What’s more, there are no significant differences between the appearance of circles of light we obtained before and after the focus. The only noticeable difference seems to be the very centre of each circle, dark in one case, light in the other. These results and the fact that the lens reaches its maximum resolution at the maximum relative aperture allow us to claim the Nikkor 5.6/500 doesn’t have any problems with the correction of spherical aberration.

Nikon D3x, f/5.6, in front of Nikon D3x , f/5.6, behind
Nikon Nikkor AF-S 500 mm f/5.6E PF ED VR - Chromatic and spherical aberration Nikon Nikkor AF-S 500 mm f/5.6E PF ED VR - Chromatic and spherical aberration
