Fujifilm Fujinon XF 8-16 mm f/2.8 R LM WR

21 November 2018
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

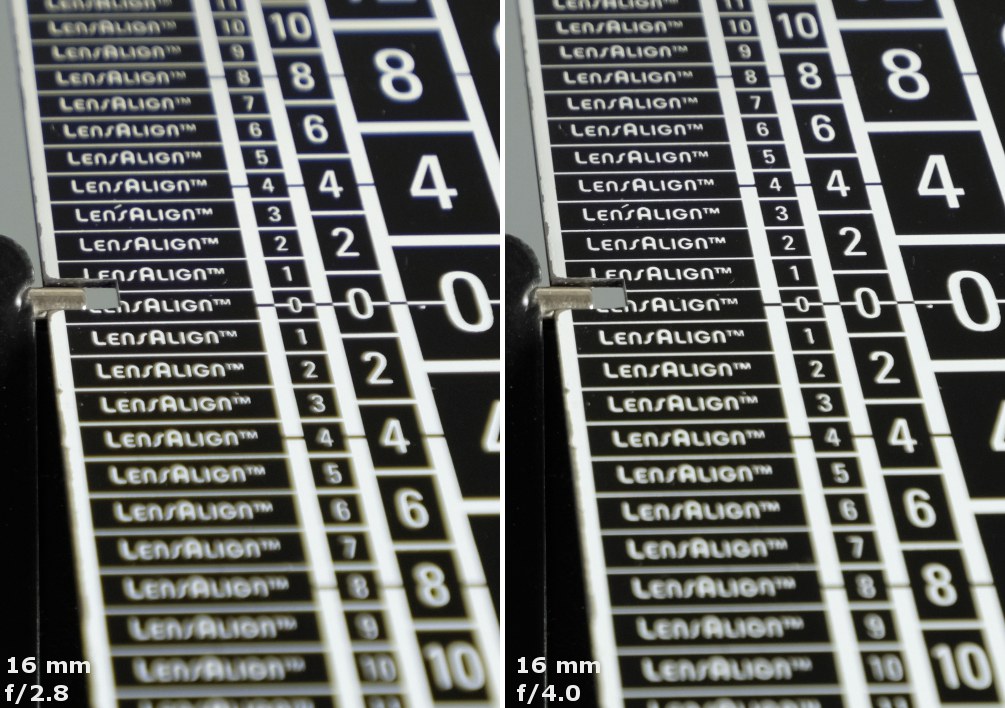

Despite using as many as six low dispersion glass elements longitudinal chromatic aberration hasn’t been eliminated completely. In the photo below you see that out-of-focus images are a bit tinted. The problem is perhaps not serious or even medium but still a slight level of this aberration is noticeable.

Fujifilm Fujinon XF 8-16 mm f/2.8 R LM WR - Chromatic and spherical aberration

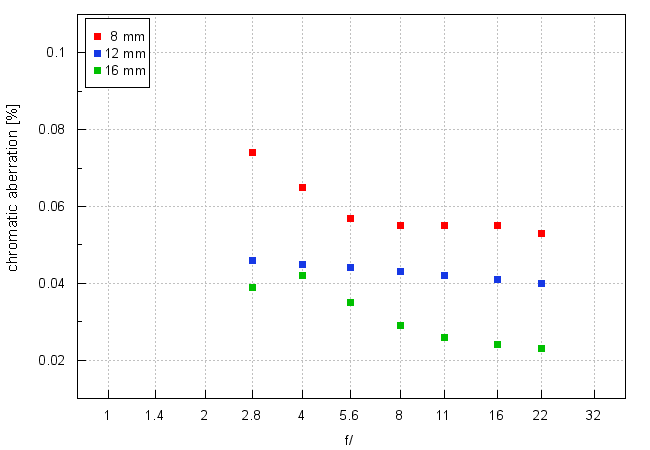

The graph below allows you to assess how the Fujifilm optics specialists managed to correct lateral chromatic aberration.

Fujifilm Fujinon XF 8-16 mm f/2.8 R LM WR - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


In the 12-16 mm range there are no problems at all. The aberration is kept below 0.05% so it can be described as very low. You get a bit more chances to notice it at the shortest focal length but still you can hardly talk about problems. These values are low and they approach medium level only at the maximum relative aperture. In this category the tested lens should be assessed very high, especially as its task was very difficult. The rivals had many slip-ups in this category, for example the Sigma 8-16 mm f/4.5–5.6 DC HSM at 8 mm showed a level of 0.18%, and the Canon 11–24 mm f/4L USM at 11 mm even exceeded a high level of 0.2%.

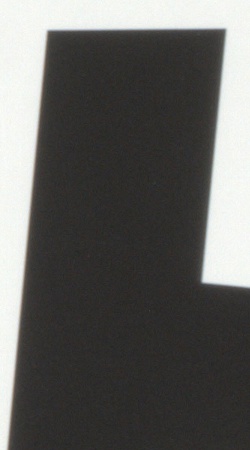

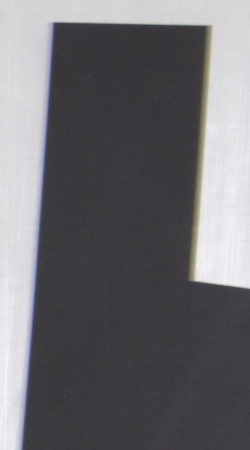

Fujifilm X-T2, RAW, 8 mm, f/2.8 Fujifilm X-T2, RAW, 16 mm, f/16.0
Fujifilm Fujinon XF 8-16 mm f/2.8 R LM WR - Chromatic and spherical aberration Fujifilm Fujinon XF 8-16 mm f/2.8 R LM WR - Chromatic and spherical aberration


Spherical aberration

A significant depth of field provided by the lens and its field curvature create a lot of problems when it comes to the assessment of the correction of spherical aberration. Images of out-of-focus light circles are so small that it would be difficult to draw any biding conclusions based on them. First photos of this chapter show a kind of shifting the focusing area toward bigger distances but significant depth of field and field curvature make it difficult to assess; perhaps it was the fault of spherical aberration, perhaps it was caused by other factors.

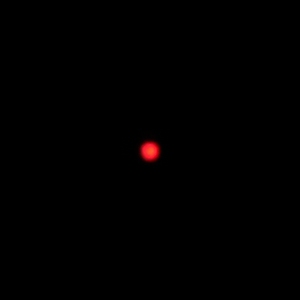

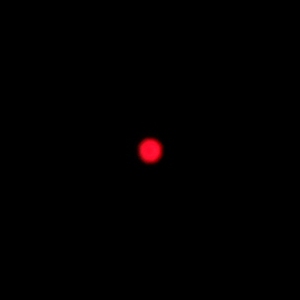

X-T2, 16 mm, f/2.8, in front of X-T2, 16 mm, f/2.8, behind
Fujifilm Fujinon XF 8-16 mm f/2.8 R LM WR - Chromatic and spherical aberration Fujifilm Fujinon XF 8-16 mm f/2.8 R LM WR - Chromatic and spherical aberration
