LensTip.com

Lens review

Sigma A 28 mm f/1.4 DG HSM

21 January 2019
Arkadiusz Olech

8. Vignetting

First let’s check how the Sigma A 1.4/28 performs in this category on the smaller sensor of the Canon 50D – appropriate thumbnails you can find below.

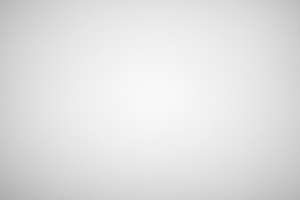

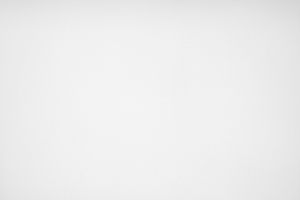

Canon 50D, f/1.4 Canon 50D, f/2.0
Sigma A 28 mm f/1.4 DG HSM - Vignetting Sigma A 28 mm f/1.4 DG HSM - Vignetting


No reasons to worry– at the maximum relative aperture the vignetting amounts to 27% (−0.89 EV), and by f/2.0 and f/2.8 it decreases to an imperceptible value, 9% (−0.28 EV) and 7% (−0.22 EV) respectively.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s check how the situation changes when you progress to full frame – below you can find images produced with the help of the Canon EOS 5D Mark III.

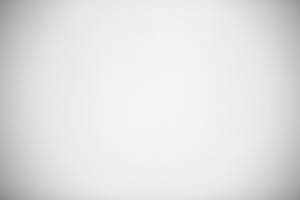

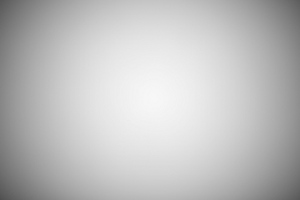

Canon 5D III, f/1.4 Canon 5D III, f/2.0
Sigma A 28 mm f/1.4 DG HSM - Vignetting Sigma A 28 mm f/1.4 DG HSM - Vignetting

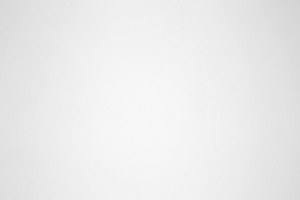

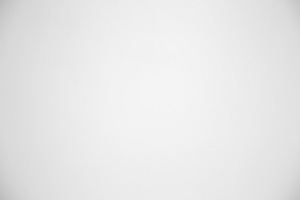

Canon 5D III, f/2.8 Canon 5D III, f/4.0
Sigma A 28 mm f/1.4 DG HSM - Vignetting Sigma A 28 mm f/1.4 DG HSM - Vignetting


In this case vignetting is, unfortunately, huge. At the maximum relative aperture you lose as much as 64% of light (−2.94 EV) in frame corners. What’s interesting, it is a result better than 68% achieved by the bigger Otus. Both the Sigma and the Otus are weaker in this category than the Nikkor AF-S 1.4/28 as its result was 53%.

Fortunately the vignetting of the Sigma decreases swiftly on stopping down. By f/2.0 its value is 40% (−1.49 EV), and by f/2.8 it reaches 21% (−0.68 EV). By f/4.0 the light fall-off drops to an almost imperceptible value of 12% (−0.38 EV) and then it stops reacting to further stopping down of the aperture.

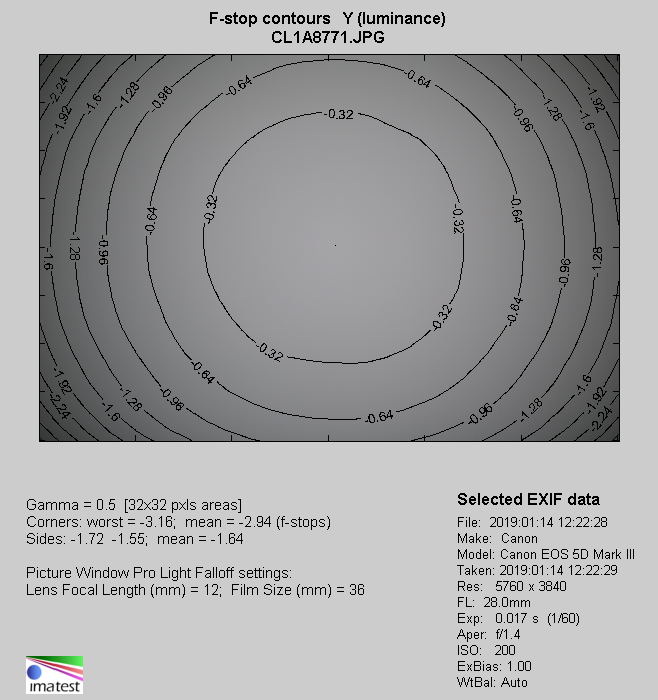

Canon 5D III, JPEG, f/1.4
Sigma A 28 mm f/1.4 DG HSM - Vignetting
