LensTip.com

Lens review

Sony FE 85 mm f/1.8

15 March 2019
Arkadiusz Olech

8. Vignetting

First let's check how the lens performs on the smaller APS-C sensor – appropriate thumbnails can be found below.

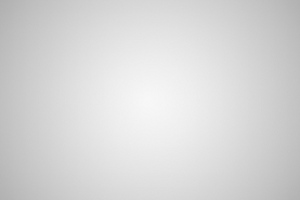

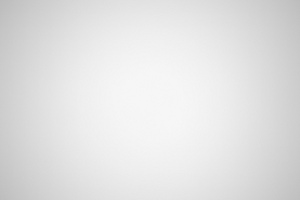

A7R II, APS-C, f/1.8 A7R II, APS-C, f/2.0
Sony FE 85 mm f/1.8 - Vignetting Sony FE 85 mm f/1.8 - Vignetting


The light fall-off in the frame corners is noticeable only near the maximum relative aperture, by f/1.8 and f/2.0 amounting to 28% (−0.95 EV) and 23% (−0.75 EV) respectively. By f/2.8 it drops to a negligible level of 9% (−0.27 EV), and by f/4.0 it disappears practically completely (5% and −0.16 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to a bigger full frame sensor there are much more problems and photos shown below are the proof.

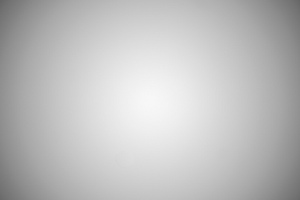

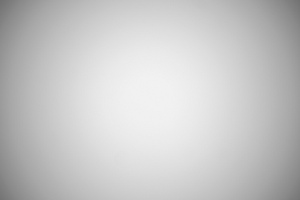

A7R II, FF, f/1.8 A7R II, FF, f/2.0
Sony FE 85 mm f/1.8 - Vignetting Sony FE 85 mm f/1.8 - Vignetting

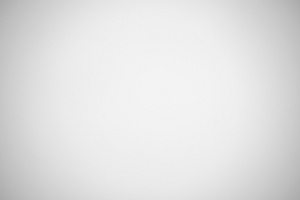

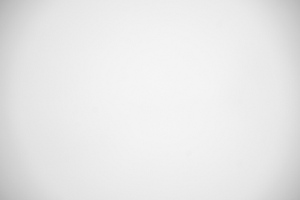

A7R II, FF, f/2.8 A7R II, FF, f/4.0
Sony FE 85 mm f/1.8 - Vignetting Sony FE 85 mm f/1.8 - Vignetting


At the maximum relative aperture we got as much as 58% (−2.48 EV) of brightness loss, a value notably higher than 43% of the Nikkor AF-S 1.8/85g and 47% of the Canon EF 1.8/85. Still these problems only were to be expected after the performance of the previous chapter – such heavily truncated circles of light don't come out of nothing.

By f/2.0 the vignetting decreases to 52% (−2.12 EV), still remaining very bothersome. By f/2.8 it drops to 30% (−1.03 EV), and by f/4.0 it gets even lower, to 25% (−0.84 EV). When you stop down the aperture to f/5.6 you are able to limit that aberration to 22% (−0.72 EV), and results by f/8.0 and f/11.0 are, respectively, 18% (−0.57 EV) and 12% (−0.38 EV).

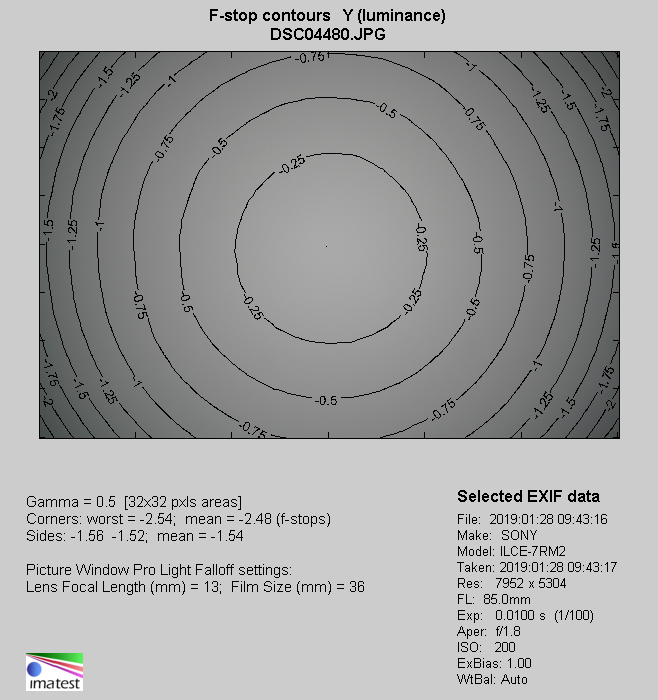

Sony A7R II, JPEG, f/1.8
Sony FE 85 mm f/1.8 - Vignetting
