8. Vignetting

First let's check vignetting levels on the smaller APS-C sensor – appropriate thumbnails are shown below.

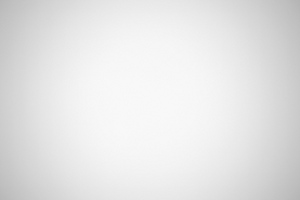

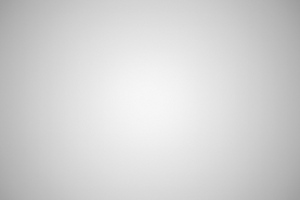

A7R II, APS-C, f/1.2 A7R II, APS-C, f/1.4
Sigma A 35 mm f/1.2 DG DN - Vignetting Sigma A 35 mm f/1.2 DG DN - Vignetting


In this case some problems can be experienced only in an area close to the maximum relative aperture. By f/1.2 vignetting amounts to 35% (−1.23 EV) and it decreases to 26% (−0.87 EV) on stopping down the aperture to f/1.4. By f/2.0 that aberration becomes imperceptible, reaching just 8% (−0.26 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to a bigger, full frame sensor there are far more problems and the following photos show it pretty clearly.

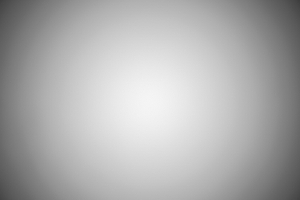

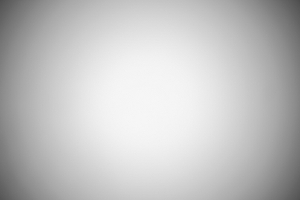

A7R II, FF, f/1.2 A7R II, FF, f/1.4
Sigma A 35 mm f/1.2 DG DN - Vignetting Sigma A 35 mm f/1.2 DG DN - Vignetting

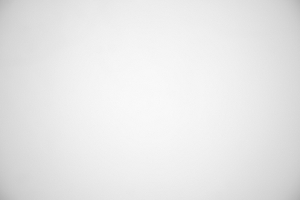

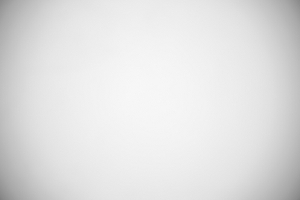

A7R II, FF, f/2.0 A7R II, FF, f/2.8
Sigma A 35 mm f/1.2 DG DN - Vignetting Sigma A 35 mm f/1.2 DG DN - Vignetting


Losses of light in frame corners are huge, by f/1.2 they amount to as much as 73% (−3.76 EV), and by f/1.4 they are still 66% (−3.15 EV). It is a very weak performance. It's enough to remind here that the Samyang AF 35 mm f/1.4 FE, a slower and smaller lens, by f/1.4 had a result of 64%, better than the Sigma after a slight stopping down to f/1.4.

By f/2.0 vignetting still remains very distinct, reaching 45% (−1.71 EV). A moderate level of that aberration can be observed only from f/2.8 onwards, with the light fall-off getting to 27% (−0.92 EV), and then it decreases by f/4.0 where we saw a value of 19% (−0.60 EV). Further stopping down didn't have any measureable influence on vignetting.

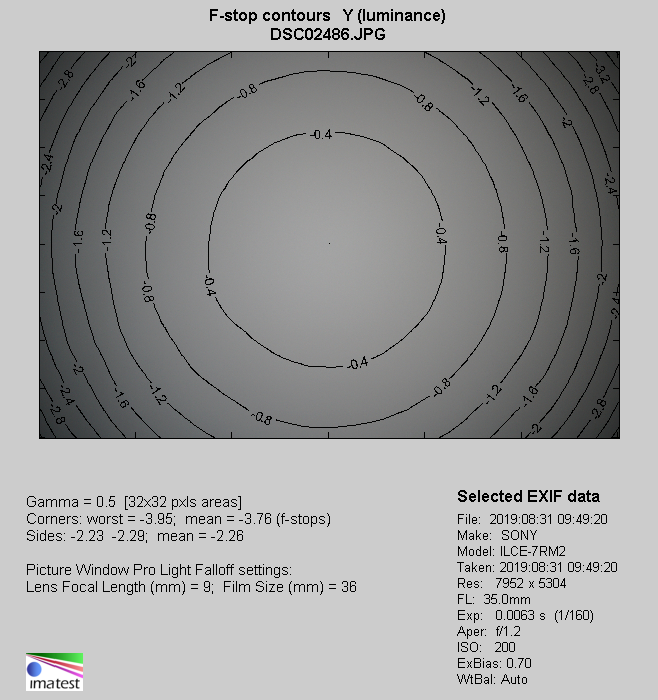

Sony A7R II, JPEG, f/1.2
Sigma A 35 mm f/1.2 DG DN - Vignetting
