Canon EF 70-200 mm f/4L IS II USM

6 November 2019
Arkadiusz Olech

8. Vignetting

First let's check how the Canon EF 70–200 mm f/4L IS II USM manages to perform on the APS-C sensor of the Canon 50D – appropriate thumbnails can be found below.

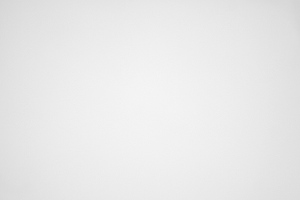

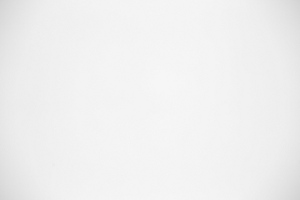

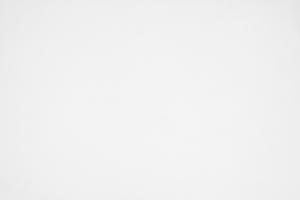

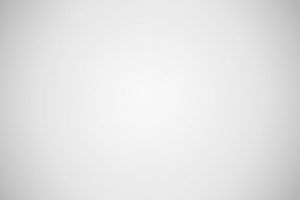

Canon 50D, 70 mm, f4.0 Canon 50D, 70 mm, f/5.6
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting

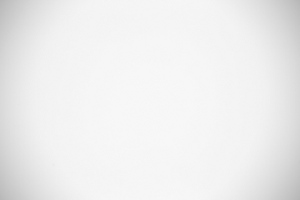

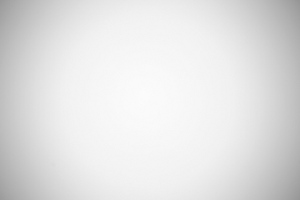

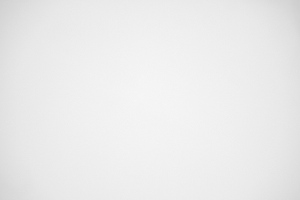

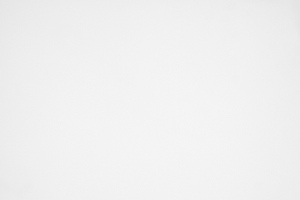

Canon 50D, 135 mm, f/4.0 Canon 50D, 135 mm, f/5.6
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting

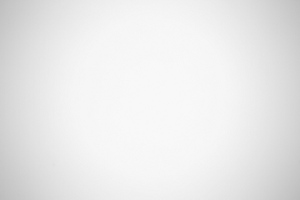

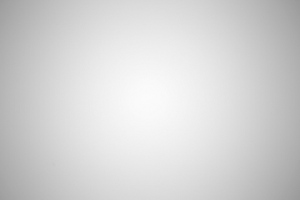

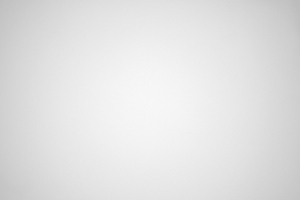

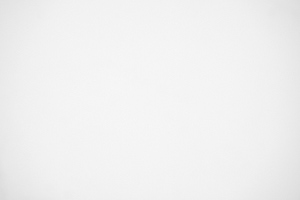

Canon 50D, 200 mm, f/4.0 Canon 50D, 200 mm, f/5.6
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting

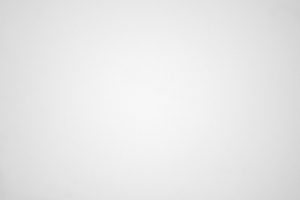

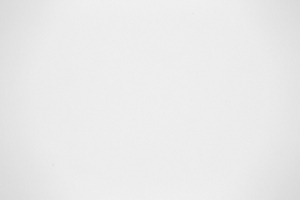

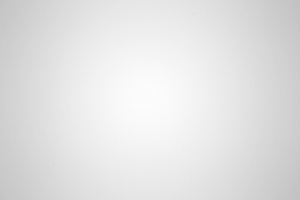

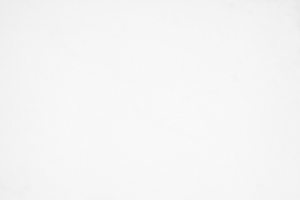

Canon 50D, 280 mm, (TC), f/5.6 Canon 50D, 280 mm (TC), f/8.0
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting


At the 70 mm focal length it would be difficult to notice any vignetting even at the maximum relative aperture as it amounts to 11% (−0.35 EV) and, additionally, it drops to 5% (−0.14 EV) on stopping down the aperture to f/5.6.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of the focal range the situation is just a tad worse: by f/4.0 vignetting amounts to 14% (−0.42 EV), and by f/5.6 it returns again to 5% (−0.15 EV).

There are some chances to notice vignetting at 200 mm where it reaches 22% (−0.70 EV), but it drops to 9% (−0.29 EV) on stopping down the aperture to f/5.6.

The situation improves after attaching the teleconverter – by f/5.6 vignetting is just 15% (-0.49 EV) and by f/8.0 it becomes imperceptible, reaching just 4% (−0.12 EV).

Now let's check how the situation changes after passing to full frame – appropriate thumbnails you can find below.

Canon 5D III, 70 mm, f/4.0 Canon 5D III, 70 mm, f/5.6
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting
Canon 5D III, 135 mm, f/4.0 Canon 5D III, 135 mm, f/5.6
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting
Canon 5D III, 200 mm, f/4.0 Canon 5D III, 200 mm, f/5.6
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting
Canon 5D III, 280 mm, (TC), f/5.6 Canon 5D III, 280 mm (TC), f/8.0
Canon EF 70-200 mm f/4L IS II USM - Vignetting Canon EF 70-200 mm f/4L IS II USM - Vignetting


The 70 mm focal length still doesn't provide any reasons to complain because by f/4.0 brightness loss in frame corners is 27% (−0.90 EV) and it decreases to 13% (−0.42 EV) on stopping down to f/5.6. Vignetting disappears practically completely by f/8.0 where we got a result of just 7% (−0.21 EV).

In the middle of the focal range you can encounter more problems because at the maximum relative aperture vignetting amounts to 39% (−1.41 EV); on stopping down to f/5.6 and f/8.0 apertures it decreases to, respectively, 25% (−0.83 EV) and19% (−0.62 EV). After employing f/11 vignetting reaches 13% (−0.42 EV).

Very similar results you can observe at 200 mm. By f/4.0 aperture the aberration, described here, reached 38% (−1.36 EV), and by f/5.6 it decreased to 23% (−0.76EV). The f/8.0 relative aperture can reduce vignetting to 16% (−0.52 EV) and only by f/11 it becomes imperceptible, amounting to just 9% (−0.28 EV).

The situation improves significantly after attaching the teleconverter because by f/5.6 you have to take into account a loss of 23% (−0.75 EV) of light in frame corners. That value drops to just 9% (−0.27 EV) on stopping down the aperture to f/8.0.

Results, described above, are hardly bad but it should be noticed that all rivals of the Canon, mentioned in our test, namely the Nikkor AF-S 70–200 mm f/4.0G ED VR, the Tamron 70–210 mm f/4 Di VC USD and the Tokina AT-X PRO FX SD 70–200 f/4 VCM-S, performed in this category a bit better.

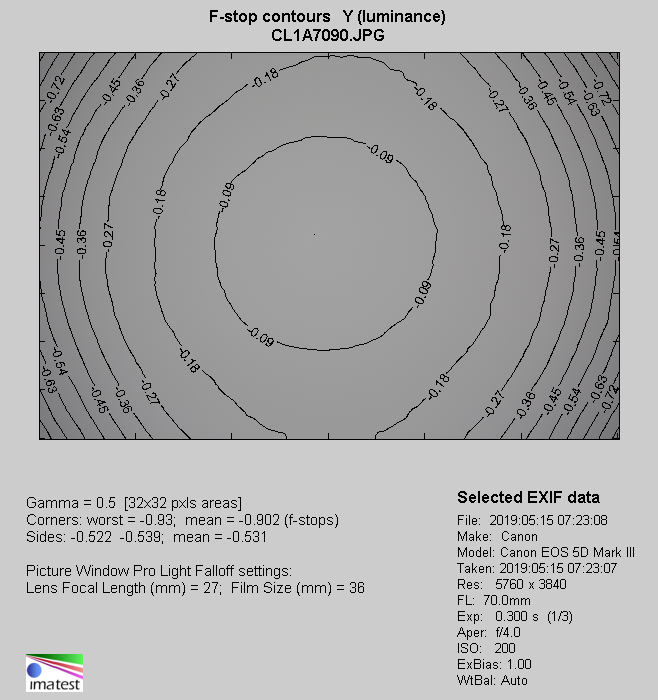

Canon 5D Mk III, 70 mm, f/4.0
Canon EF 70-200 mm f/4L IS II USM - Vignetting

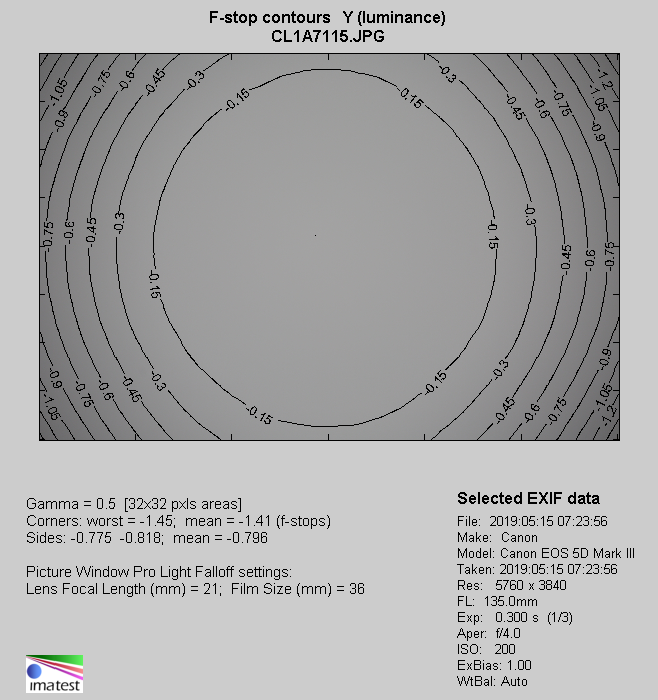

Canon 5D Mk III, 135 mm, f/4.0
Canon EF 70-200 mm f/4L IS II USM - Vignetting

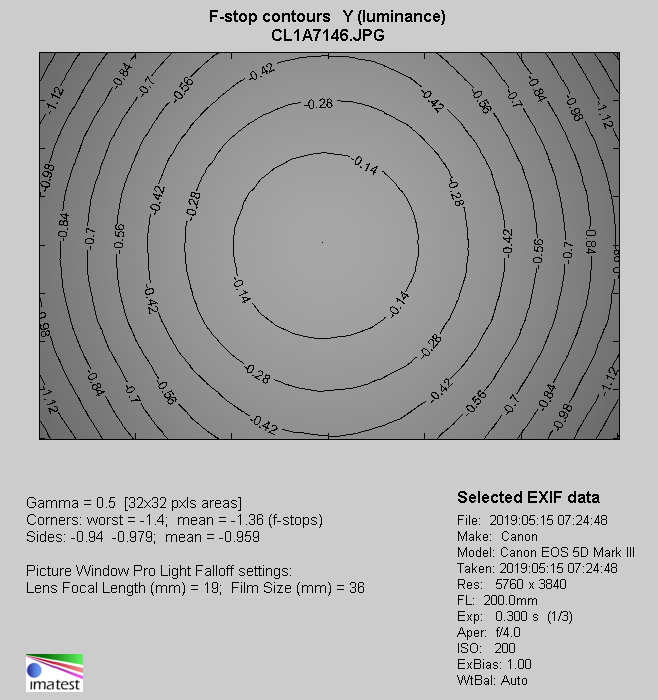

Canon 5D Mk III, 200 mm, f/4.0
Canon EF 70-200 mm f/4L IS II USM - Vignetting

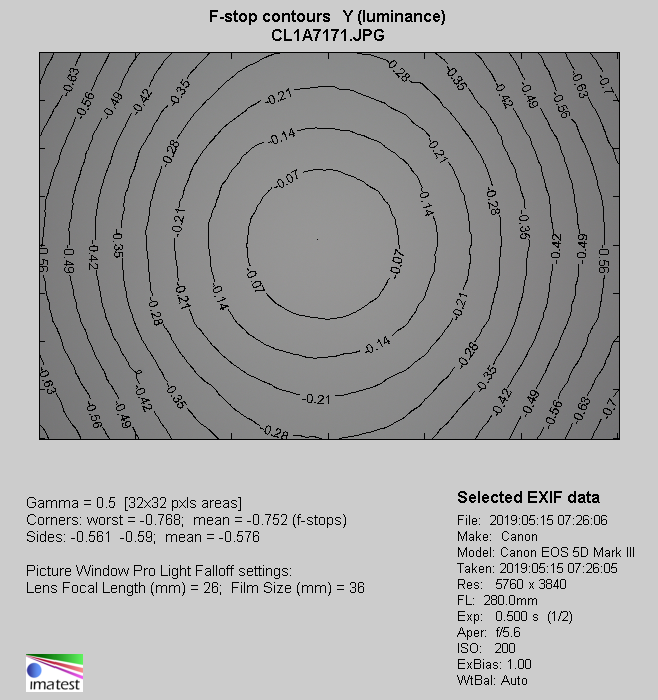

Canon 5D Mk III, 280 mm (TC), f/5.6
