LensTip.com

Lens review

Voigtlander Nokton 50 mm f/1.2 Aspherical

5 May 2020
Maciej Latałło

5. Chromatic and spherical aberration

Chromatic aberration

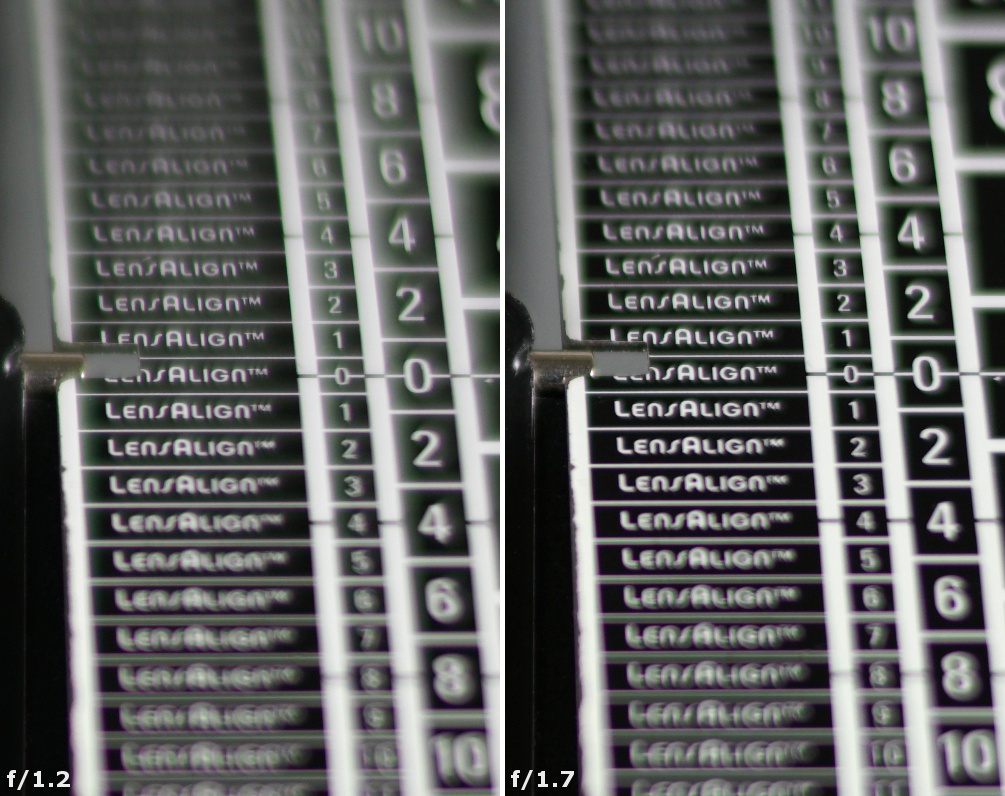

Usually we write here about colouring in blurry, out-of-focus areas positioned further in the frame but in this case you don't have to look for blur far away because it is everywhere. Fortunately there is no colouring visible so we can say the Voigtlander 1.2/50 doesn't have problems with longitudinal chromatic aberration.

Voigtlander Nokton 50 mm f/1.2 Aspherical - Chromatic and spherical aberration


What about the lateral variation of that aberration? The graph below shows its performance depending on aperture values for both types of detectors.

Voigtlander Nokton 50 mm f/1.2 Aspherical - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Here the tested lens should be praised a lot. Abberation doesn't depend on aperture value practically anywhere and it keeps a negligible level of 0.01-0.02% for both types of detectors. The chances that you might find it bothersome in real life photos are non-existent.

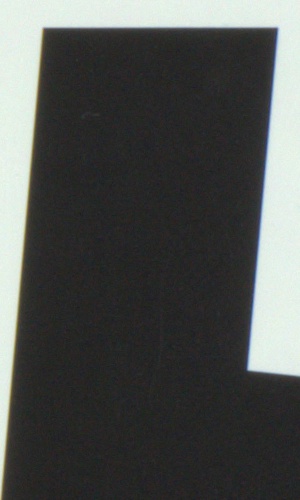

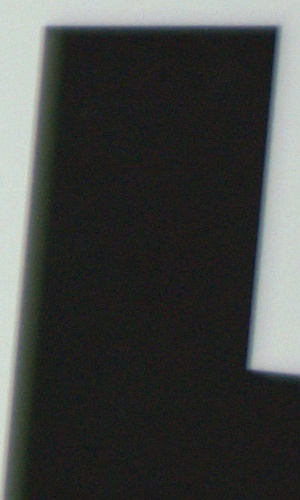

A7R II, RAW, f/1.2 A7R II, RAW, f/16.0
Voigtlander Nokton 50 mm f/1.2 Aspherical - Chromatic and spherical aberration Voigtlander Nokton 50 mm f/1.2 Aspherical - Chromatic and spherical aberration


Spherical aberration

First photos, presented in this chapter, don't featuer any focus shift effect. Still, to be honest, with such a fuzzy image it is really difficult to say where the focusing range is and how it shifts, if it shifts at all, after changing the aperture value.

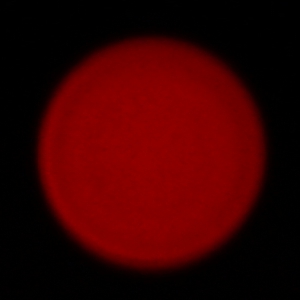

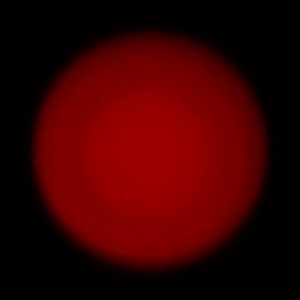

Spherical aberration cannot be corrected in a perfect way because defocused circles of light differ a bit. The one we got before the focal point features a bit of soft edge and the one after the focus has a lighter rim. Still it must be admitted that, for such a fast lens, the differences observed in the circles are quite subtle and don't allow us to criticize the tested lens's correction of spherical aberration in an especially harsh way.

A7R II, f/1.2, before A7R II, f/1.2, after
Voigtlander Nokton 50 mm f/1.2 Aspherical - Chromatic and spherical aberration Voigtlander Nokton 50 mm f/1.2 Aspherical - Chromatic and spherical aberration
