Nikon Nikkor Z 20 mm f/1.8 S

17 July 2020
Maciej Latałło

5. Chromatic and spherical aberration

Chromatic aberration

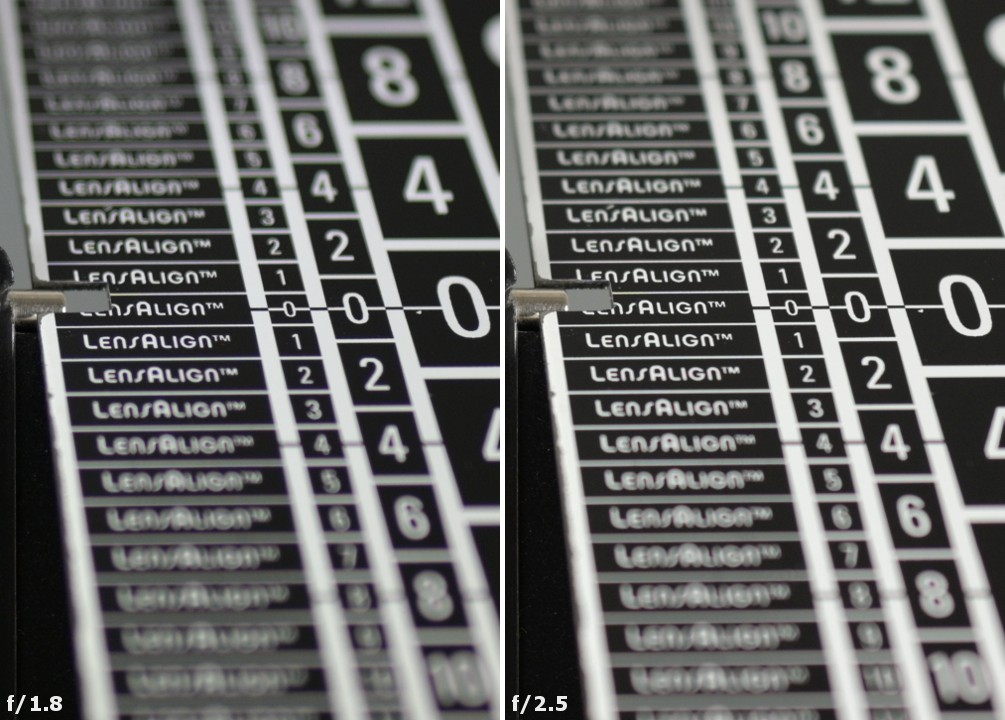

The optical construction of the Nikkor Z 20 mm f/1.8 S features as many as three low dispersion elements. Photos below prove that they aren't just for decoration – longitudinal chromatic aberration is corrected properly.

Nikon Nikkor Z 20 mm f/1.8 S - Chromatic and spherical aberration

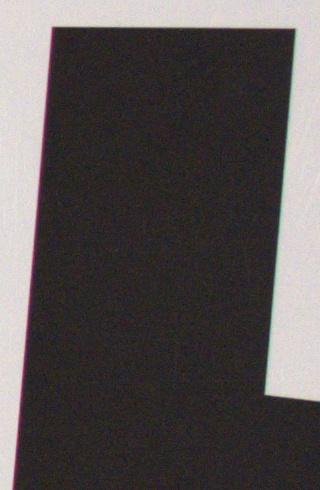

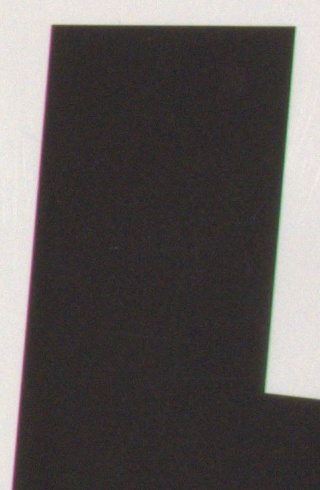

Lateral chromatic aberration could be described in similar terms and below you can see how the lens fared in that category on both types of detectors.

Nikon Nikkor Z 20 mm f/1.8 S - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The results are really impressive, especially when you take into account the parameters of the lens. After all you deal here with a fast ultra wide-angle lens and aberration, no matter what aperture you employ, is on the borderline between negligible and low level. That performance is a bit better than the perofrmance of the Nikkor AF-S 20 mm f/1.8G ED we praised so much.

Nikon Z7, RAW, f/1.8 Nikon Z7, RAW, f/11.0
Nikon Nikkor Z 20 mm f/1.8 S - Chromatic and spherical aberration Nikon Nikkor Z 20 mm f/1.8 S - Chromatic and spherical aberration


Spherical aberration

When you look at the first photo of this chapter you see that it's difficult to notice any traces of 'focus shift'. Still, when you examine out-of-focus circles of light reached before and after the focal point you can find some small differences, pointing at influence of spherical aberration. However, lack of focus shift and these very slight differences in appearance of circles of light make us say that the lens doesn't have any serious problems with that aberration.

Nikon Z7, f/1.8, before Nikon Z7, f/1.8, after
Nikon Nikkor Z 20 mm f/1.8 S - Chromatic and spherical aberration Nikon Nikkor Z 20 mm f/1.8 S - Chromatic and spherical aberration
