LensTip.com

Lens review

Nikon Nikkor Z 20 mm f/1.8 S

17 July 2020
Maciej Lata││o

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

As in the case of chromatic aberration correction the mirrorless 1.8/20 model fared better than its reflex camera equivalent, in distortion category the trend is reversed.

Slight barrel distortion of the Nikkor Z 20 mm f/1.8 S can be noticed already on the APS-C/DX sensor where it reaches −1.14%. On passing to full frame the aberration increases but only slightly, to −2.10%. Still it should be emphasized that very slight increase was reached with the introduction of delicate moustache distortion. If you limit your measurements to the 1:1 markings area distortion increases to −2.38%. That value is perhaps neither very bothersome nor especially high but it should be remembered that the result of the Nikkor AF-S 20 mm f/1.8G ED was −1.53%. That result proves that the performance could have been a bit better.

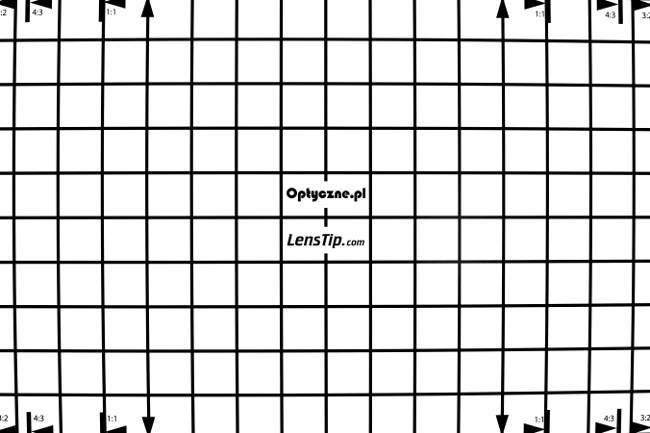

NikonáZ7, 20ámm, APS-C/DX
Nikon Nikkor Z 20 mm f/1.8 S - Distortion

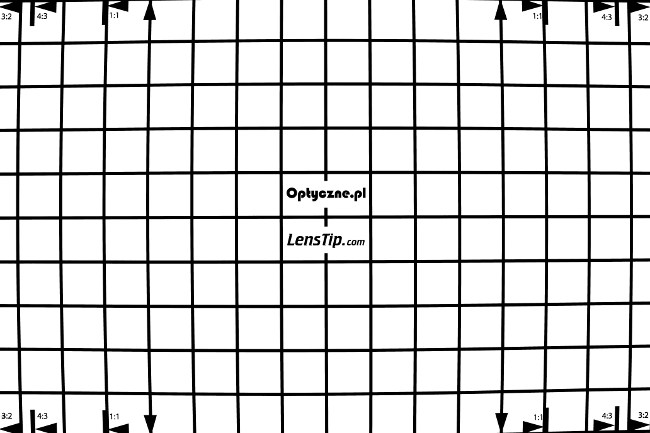

NikonáZ7, 20ámm, FF
Nikon Nikkor Z 20 mm f/1.8 S - Distortion
