LensTip.com

Lens review

Venus Optics LAOWA 9 mm f/5.6 FF RL

13 August 2020
Maciej Latałło

5. Chromatic and spherical aberration

Chromatic aberration

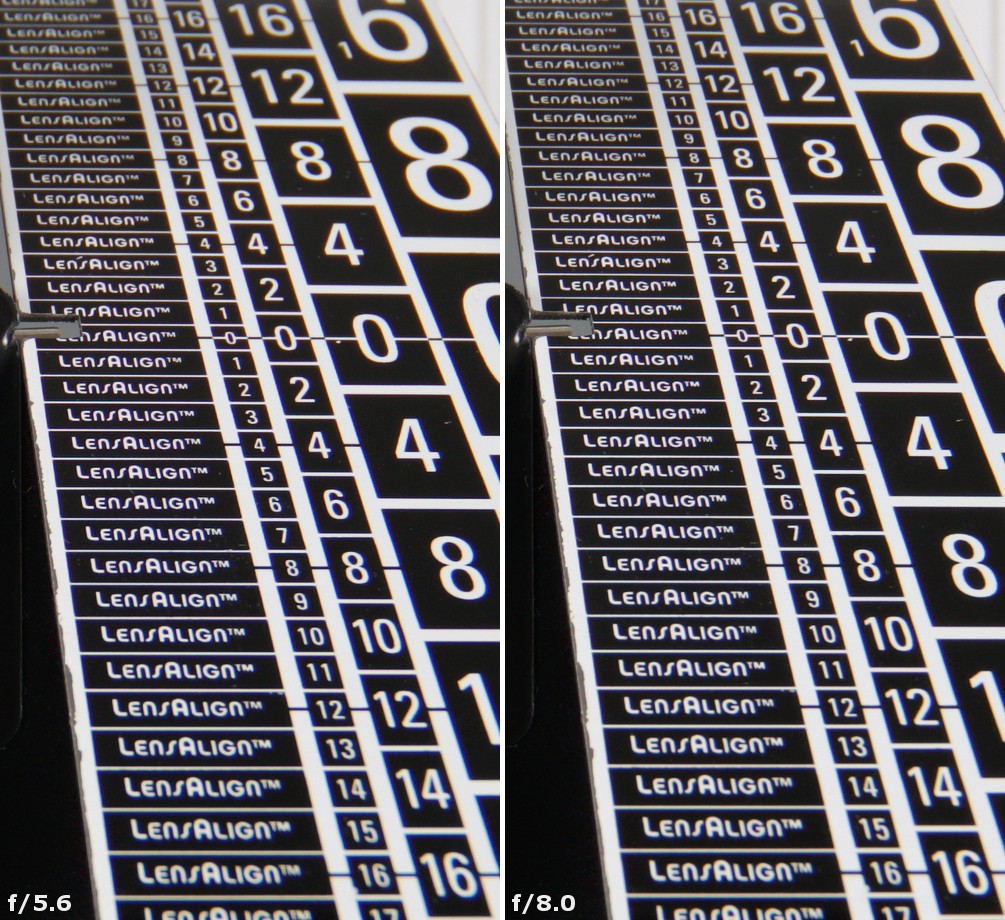

In the case of the Laowa 9 mm f/5.6 FF RL it would be difficult to speak about any colouring of out-of-focus areas because, with such parameters of the lens, there are hardly any such areas at all. A photo taken at the maximum relative aperture does show slight colouring of areas before and behind the centre of depth of field. It seems that, despite employing two low dispersion ED glass elements, the tested lens doesn't correct longitudinal chromatic aberration in a perfect way.

Venus Optics LAOWA 9 mm f/5.6 FF RL - Chromatic and spherical aberration

Correction of lateral chromatic aberration is very interesting for a change – let's look at a graph below.

Venus Optics LAOWA 9 mm f/5.6 FF RL - Chromatic and spherical aberration


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The graph is quite untypical. The CA level increases very quickly as you move further away from the frame centre so on the edge of the APS-C sensor, close to the maximum relative aperture, it reaches high values. Then it starts to decrease and it stops being bothersome on the edge of full frame.

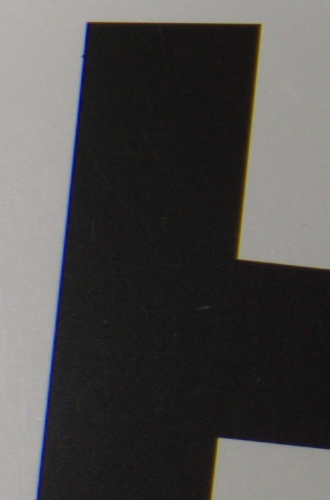

A7R II, RAW, APS-C, f/5.6 A7R II, RAW, FF, f/5.6
Venus Optics LAOWA 9 mm f/5.6 FF RL - Chromatic and spherical aberration Venus Optics LAOWA 9 mm f/5.6 FF RL - Chromatic and spherical aberration

Spherical aberration

The tested lens's extreme parameters made it impossible to conduct two tests we usually perform in order to assess spherical aberration correction. Depth of field, provided by the Laowa, is so significant that it's very hard to notice any focus shift effect. Additionally, it was impossible to reach circles of light of a sensible size both before and behing the focus.
