Lens review

Venus Optics LAOWA 9 mm f/5.6 FF RL

13 August 2020
Maciej Latałło

8. Vignetting

First let's check the vignetting performance for the smaller APS-C sensor – appropriate thumbnails can be found below.

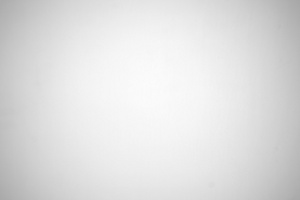

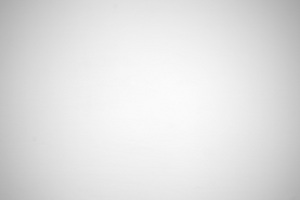

A7R II, APS-C, f/5.6 A7R II, APS-C, f/8.0
Venus Optics LAOWA 9 mm f/5.6 FF RL - Vignetting Venus Optics LAOWA 9 mm f/5.6 FF RL - Vignetting


At the maximum relative aperture brightness loss in frame corners amounts to 33% (−1.14 EV), so it will be perfectly visible. On stopping down the aperture to f/8.0 that aberration decreases slightly to a value of 31% (−1.06 EV) and it can be reduced by another percent if you stop the lens down to f/11.0.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to a bigger full frame sensor there are more problems and you can spot them with ease in photos shown below.

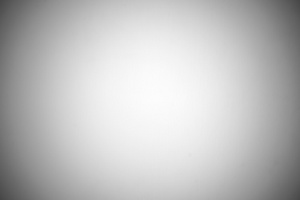

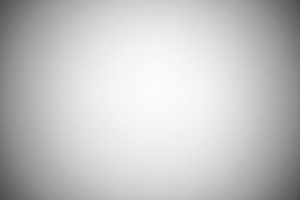

A7R II, FF, f/5.6 A7R II, FF, f/8.0
Venus Optics LAOWA 9 mm f/5.6 FF RL - Vignetting Venus Optics LAOWA 9 mm f/5.6 FF RL - Vignetting

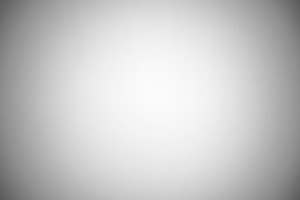

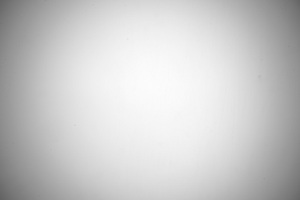

A7R II, FF, f/11.0 A7R II, FF, f/16.0
Venus Optics LAOWA 9 mm f/5.6 FF RL - Vignetting Venus Optics LAOWA 9 mm f/5.6 FF RL - Vignetting


The result reached at the maximum relative aperture amounts to as much as 72% (−3.68 EV) and we think two factors contributed to that value. Firstly of course the parameters of the lens. Secondly and more importantly, the specificity of the mount and other aspects connected to that, like telecentricity (or rather lack thereof) and the fact that the rear element throws light at huge angles toward pixels of the sensor. A lot of light get lost just because of these angles; if you tested the Laowa on an optical bench, independently of the sensor, vignetting would have been lower for sure. Still nobody takes photos with a lens positioned on an optical bench...

The performance of the lens on stopping down confirms that huge vignetting is a result of cooperation between optics and the sensor and not just optics on its own. Brightness loss decreases but not especially fast – by f/8.0 it reaches 69% (−3.37 EV), by f/11.0 it drops to 64% (−2.98 EV), and by f/16.0 it gets to a still very high level of 60% (−2.66 EV).

Sony A7R II, JPEG, f/5.6
Venus Optics LAOWA 9 mm f/5.6 FF RL - Vignetting
