Lens review

Canon EF 28-135 mm f/3.5-5.6 IS USM

22 September 2007
Arkadiusz Olech

8. Vignetting

In this category the Canon, again, is taking advantage of its full frame design. However, the advantages are not that great since even using an APS-C the vignetting is clearly visible. The light fall off in the corners of the frame is the most problematic at 28 mm, with the open aperture reaching 24% (-0.79 the value of the diaphragm). Stopping down the lens to f/4.0 decreases the effect to 17% and then, while stopping it down some more, to an acceptable level of 10%.

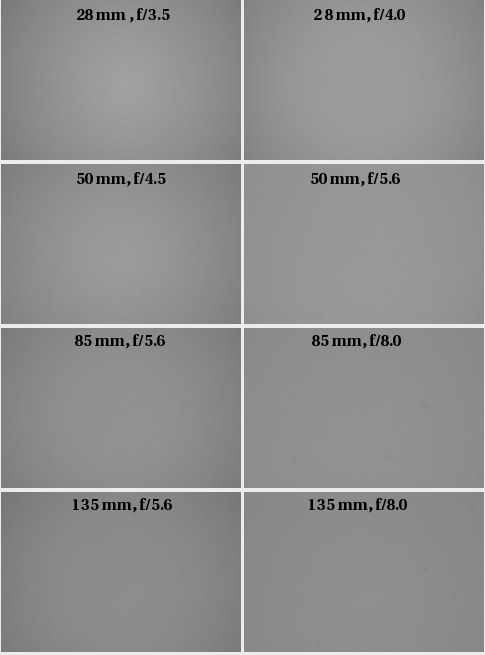

Canon EF 28-135 mm f/3.5-5.6 IS USM - Vignetting


At the 50 mm focal length range and an open aperture of f/4.5 we noticed the 19% light fall off in the corners (-0.61 the value of the diaphragm). When we use the f/5.6 diaphragm we reduce the vignetting to the 8% level.

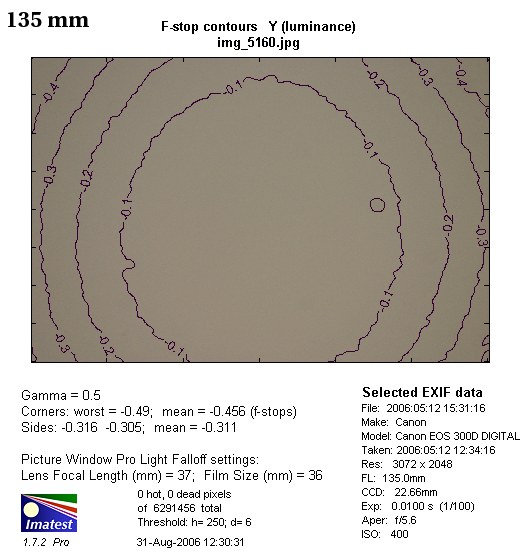

The situation is even better at the 85 mm focal length. At f/5.6 the light fall off values reach 15% (-048 the value of the diaphragm). When stopping the lens one value down, the problem decreases to 6%. The situation is almost the same at the 135 mm focal length. The vignetting at f/5.6 and f/8 reach is, respectively, 14% and 6%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In summary, the vignetting is not a problem at the 50 to 135 mm focal length ranges. We can encounter a slight difficulty at 28 mm and with an open aperture, which is kind of an unpleasant surprise. We expected vignetting of less than 20% from a lens designed for a full frame.

Canon EF 28-135 mm f/3.5-5.6 IS USM - Vignetting

Canon EF 28-135 mm f/3.5-5.6 IS USM - Vignetting
