Canon EF 28-135 mm f/3.5-5.6 IS USM

22 September 2007
Arkadiusz Olech

4. Image resolution

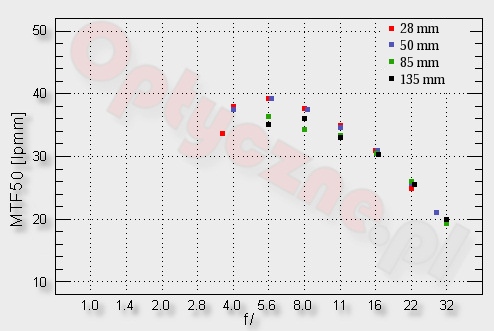

The Canon’s verifocal lens, whose focal length changes at a 4.8x factor, performs very well in this category. Its performance at the 28 to 50 mm is simply great! Even with an open aperture the results are very high and a slight stopping down of the lens gives a result of almost 40lpmm. Slightly weaker results can be observed at the 85-135 mm range, but the results are still satisfactory. In summary, the Canon’s operation is smooth and beautiful throughout the whole focal length range.

Canon EF 28-135 mm f/3.5-5.6 IS USM - Image resolution

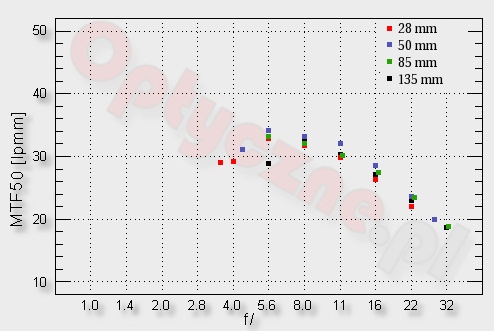

At the edge of the frame, the Canon takes advantage of its full frame optical design. Although, honestly speaking, the results from this perspective are not extraordinary. The commonly regarded good level, 30lpmm, is exceeded here in many focal length/diaphragms combinations. This is good news for those who want to use this lens with the APS-C detector. However, in the case of APS-H and FF the results are weaker.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Canon EF 28-135 mm f/3.5-5.6 IS USM - Image resolution

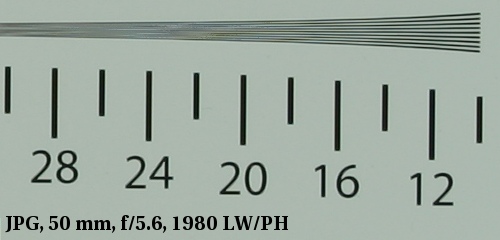

The test table clipping below shows us the highest performance of the lens at its maximum presentation when working with JPG files.

Canon EF 28-135 mm f/3.5-5.6 IS USM - Image resolution
