6. Distortion and field of view

Distortion

When you attach the Sony FE 20-70 mm f/4 G to a camera, an option of distortion correction control gets disabled in its menu. It's quite obvious that optics specialists meant the software to do the job of optics and the camera forces automatic correction of this aberration.

It also means additional work for the testers. We have to check distortion levels not only on the APS-C sensor and on full frame but also for corrected JPEG files and uncorrected RAW files. We get four combinations that, additionally, have to be checked at different focal lengths.

Let's start with the easiest case – the smaller APS-C sensor plus corrected JPEG files. Below, you can find thumbnails of images we got on such a combination at 20, 24, 28, 35, 50, and 70 mm.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

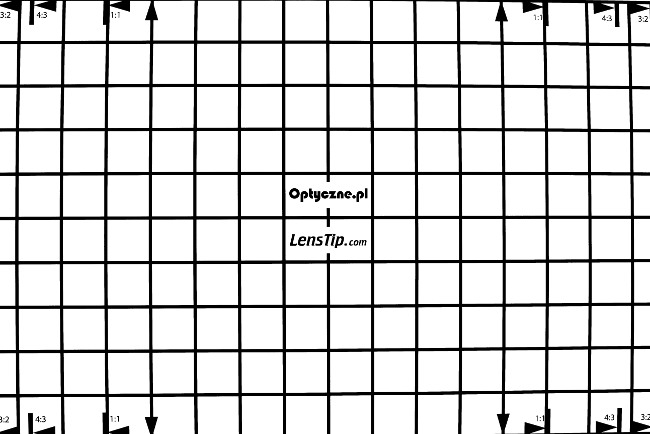

Sony A7RáIII, APS-C, JPEG, 20ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

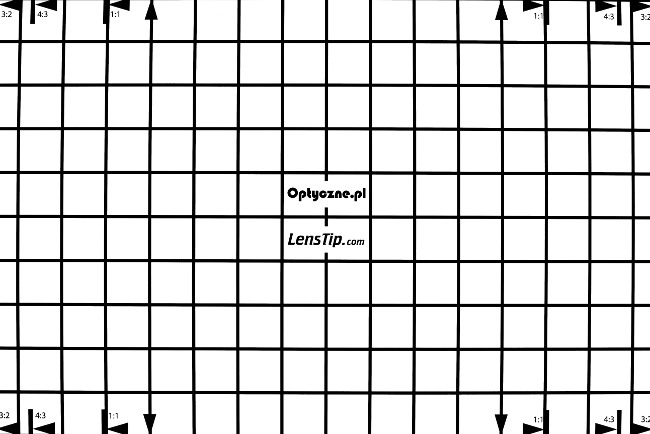

Sony A7RáIII, APS-C, JPEG, 24ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

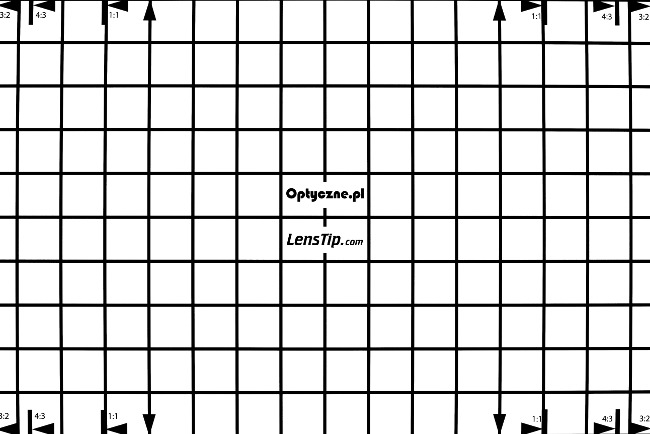

Sony A7RáIII, APS-C, JPEG, 28ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

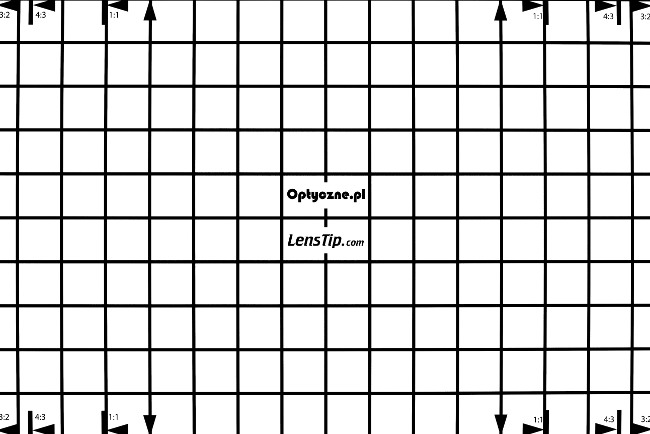

Sony A7RáIII, APS-C, JPEG, 35ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

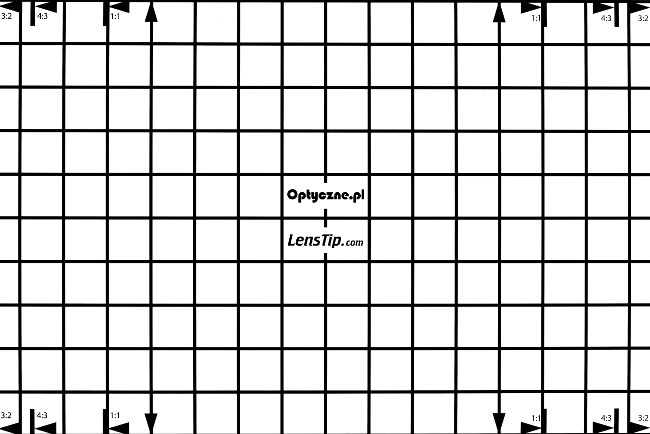

Sony A7RáIII, APS-C, JPEG, 50ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

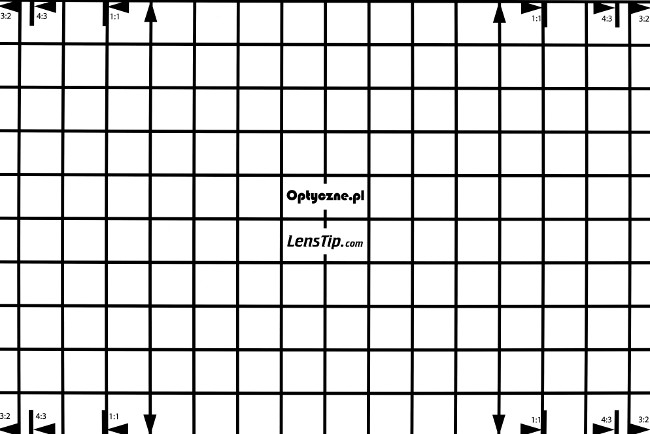

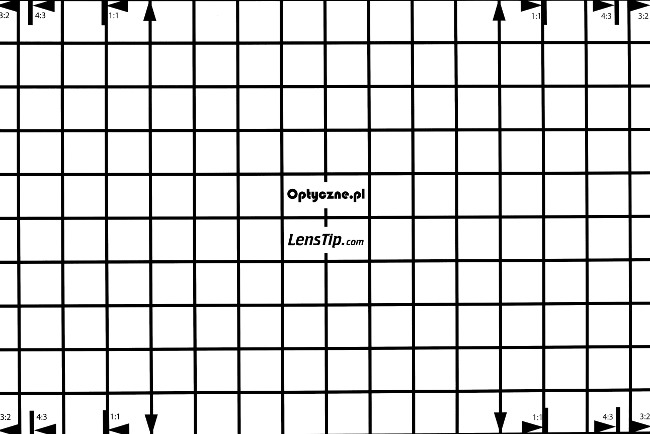

Sony A7RáIII, APS-C, JPEG, 70ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

Here the task was the easiest: angles of view aren't extremely wide and the lens gets some help from the software of the camera too. As a result you can notice some traces of barrel distortion but only at 20 mm, where we got -0.78%. At 24 mm that value decreases to -0.43%, and at 28 mm it is -0.28%. At the longer end of the focal spectrum the results are, within the margin of error, practically zero. At 35, 50, and 70 mm we got, respectively: -0.07%, -0.07%, and -0.01%.

Now let's have a glance at RAW files from the smaller APS-C sensor in order to check what happens if you switch correcting software off.

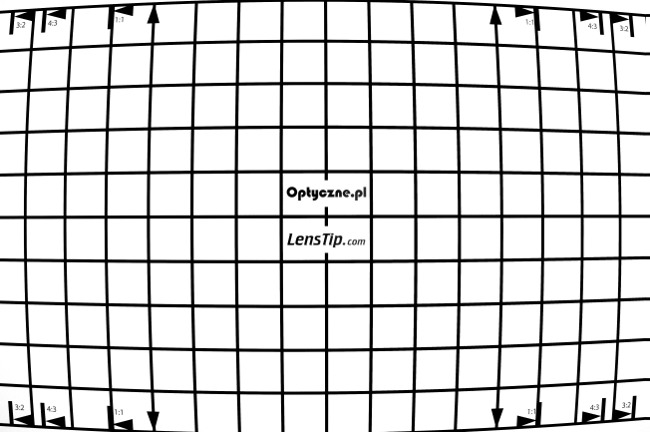

Sony A7RáIII, APS-C, RAW, 20ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

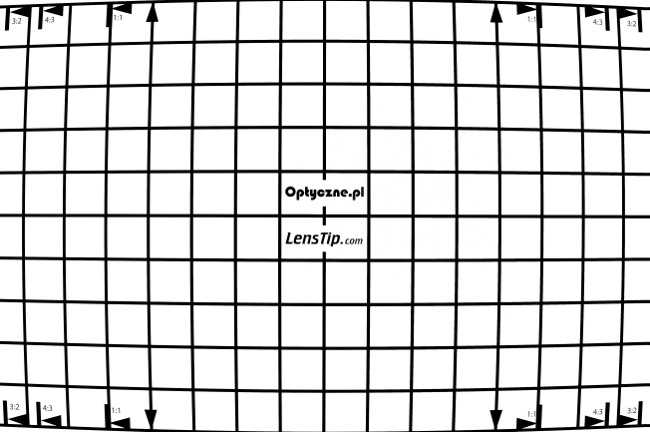

Sony A7RáIII, APS-C, RAW, 24ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

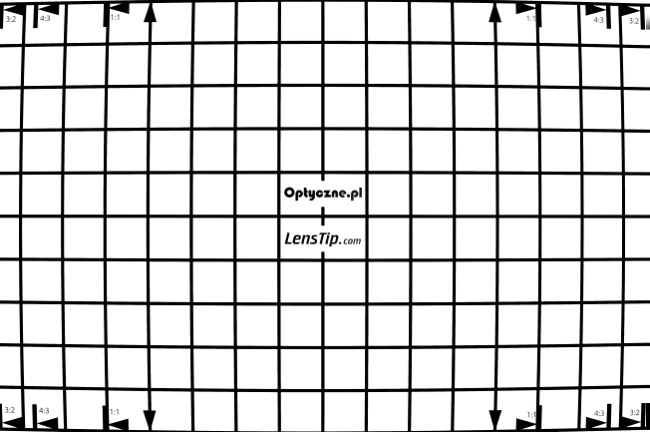

Sony A7RáIII, APS-C, RAW, 28ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

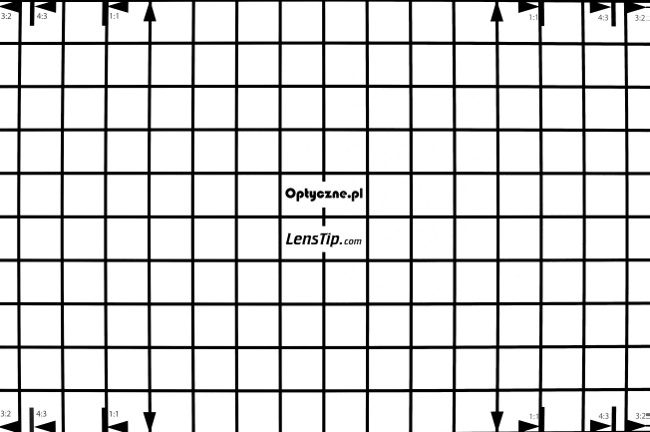

Sony A7RáIII, APS-C, RAW, 35ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

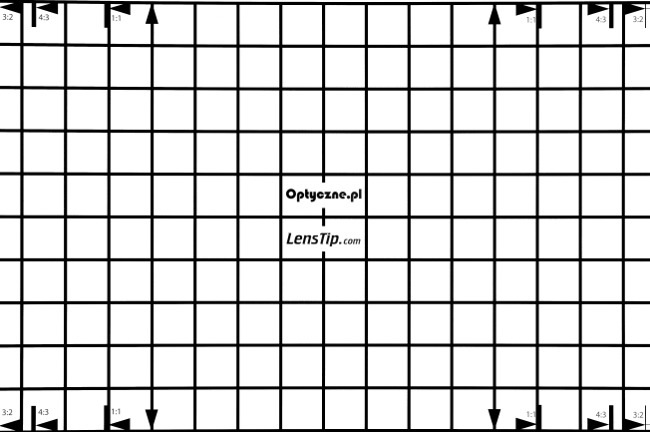

Sony A7RáIII, RAW, JPEG, 50ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

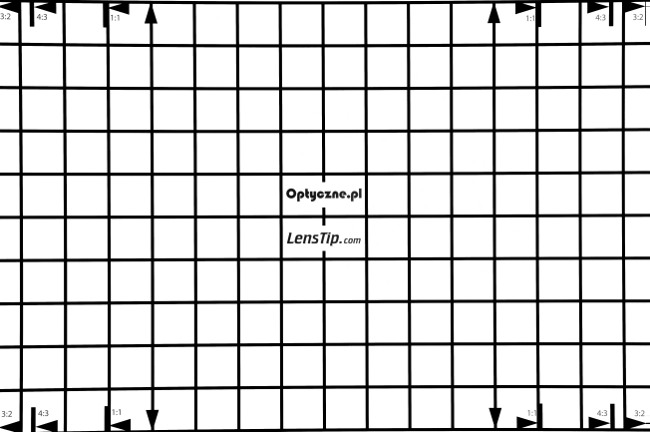

Sony A7RáIII, APS-C, RAW, 70ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

This time you won't have any problem with noticing deformations. At 20 mm you deal with a surprisingly high level of -5.79%. Additionally, at 24 mm you still deal with a quite high value of -3.76%, and at 28 mm you see -2.14%, a level which is also quite distinct. A bit better results we got for higher focal lengths: at 35 mm it's still barrel distortion of -0.53%, but at 50 mm you already see the pincushion variation which level reaches +0.66%. That pincushion only increases to +1.05% after changing the focal length to 70 mm.

Now let's progress to full frame. Thumbnails below show the performance of JPEG files after the correction.

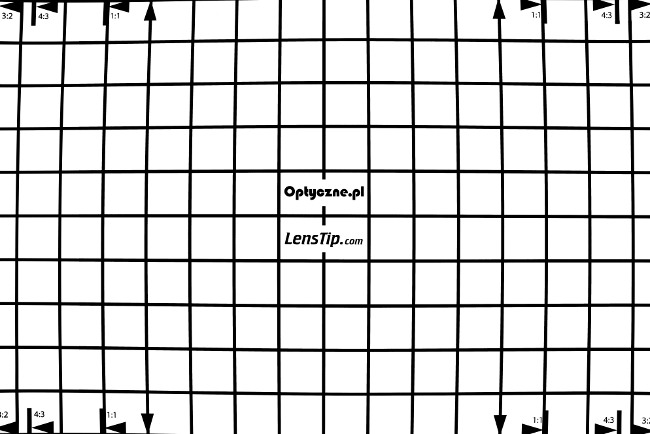

Sony A7RáIII, FF, JPEG, 20ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

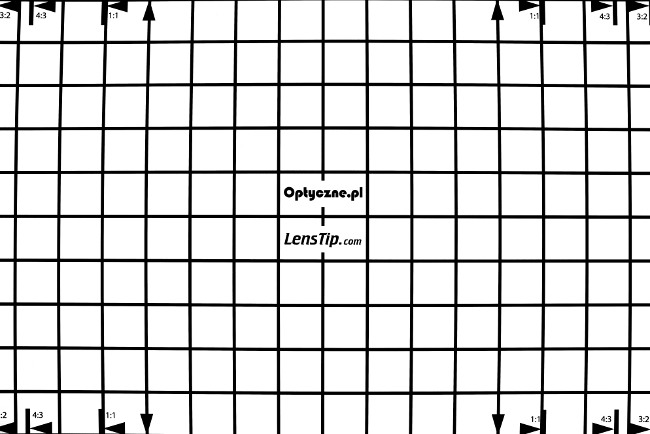

Sony A7RáIII, FF, JPEG, 24ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

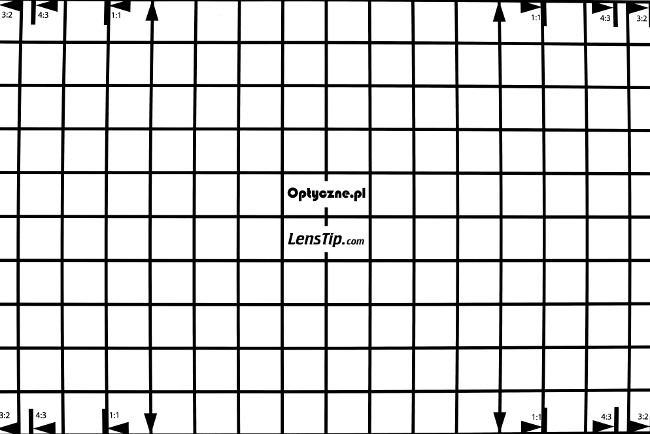

Sony A7RáIII, FF, JPEG, 28ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

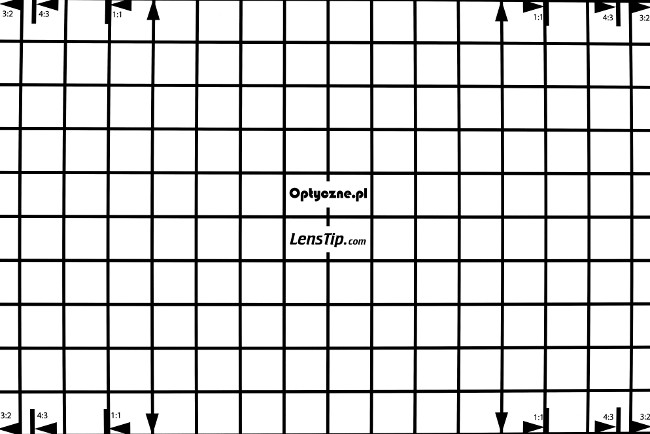

Sony A7RáIII, FF, JPEG, 35ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

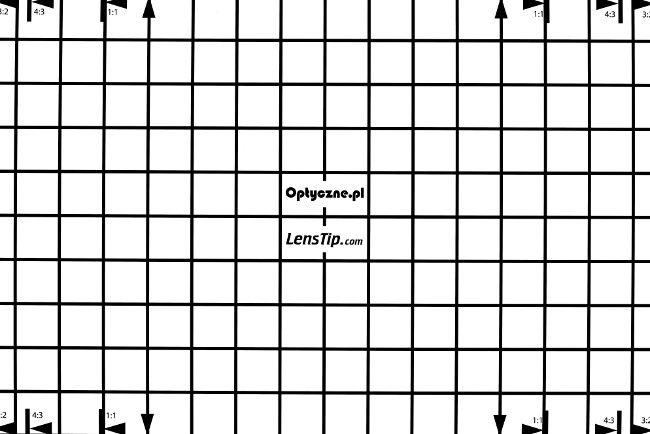

Sony A7RáIII, FF, JPEG, 50ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view
Sony A7RáIII, FF, JPEG, 70ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

You get some surprises here. First of all, at 20 mm you see barrel distortion of -1.65%, quite a lot for an already corrected image. As if it wasn't enough, there are traces of moustache distortion left behind after the correction. Strange? Wait till you reach the RAW file analysis...

Barrel distortion level is also noticeable at 24 mm where it reaches -1.07%. At longer focal lengths the problems end: at 28 mm you see a level of -0.51%, at 35 mm the result is -0.21%, and at 50 and 70 mm you just deal with slight pincushion deformations of +0.11% and 0.02%.

Now we are arriving at the clou of our chapter – distortion performance on full frame, examined on uncorrected RAW files. Let's look at the photos, presented below.

Sony A7RáIII, FF, RAW, 20ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

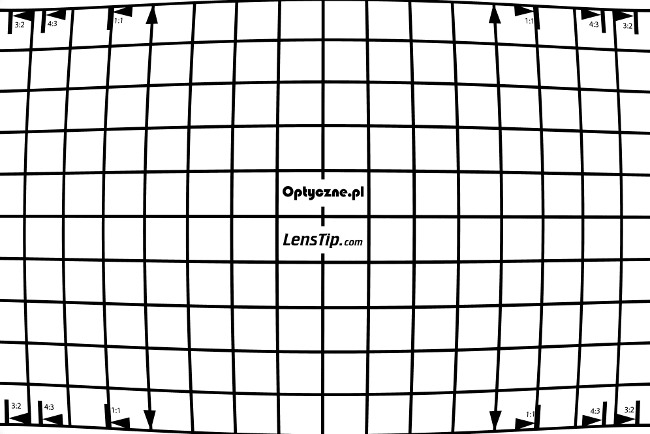

Sony A7RáIII, FF, RAW, 24ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

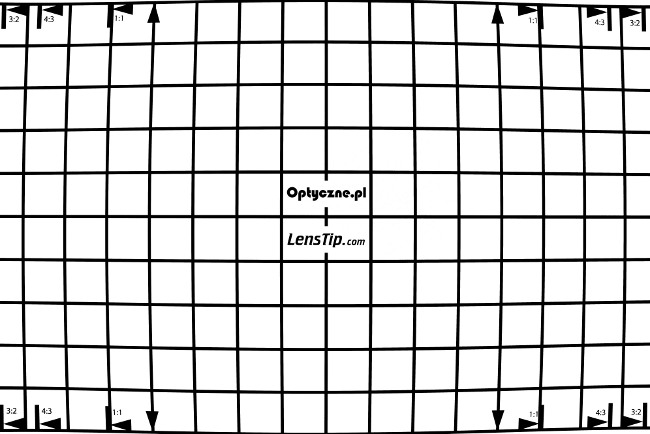

Sony A7RáIII, FF, RAW, 28ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

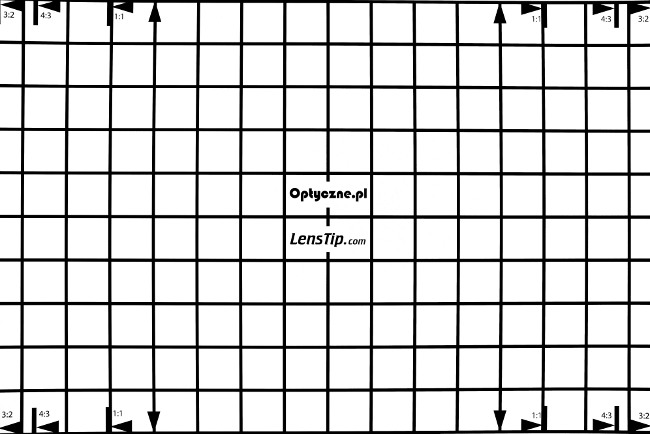

Sony A7RáIII, FF, RAW, 35ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

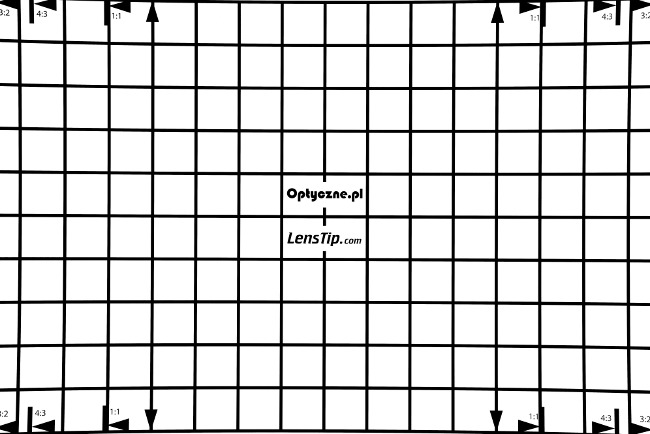

Sony A7RáIII, FF, RAW, 50ámm
Sony FE 20-70 mm f/4 G - Distortion and field of view

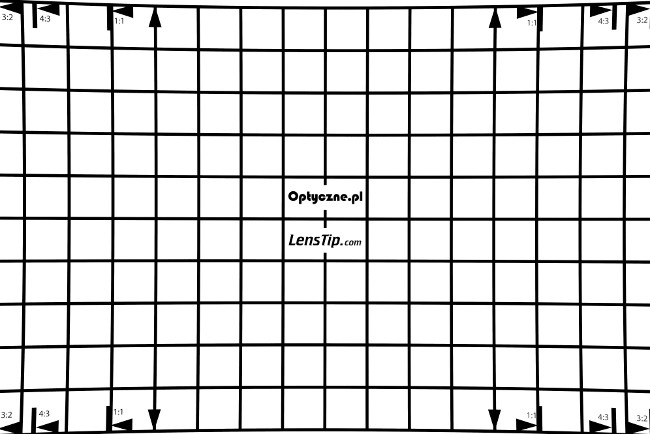

Sony A7RáIII, FF, RAW, 70ámm
