Lens review

Fujifilm Fujinon XF 56 mm f/1.2 R WR

27 March 2023
Maciej Latałło

8. Vignetting

Let's check the vignetting performance for both JPEG and RAW files, developped by neutral software.

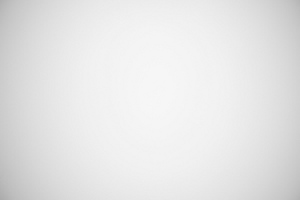

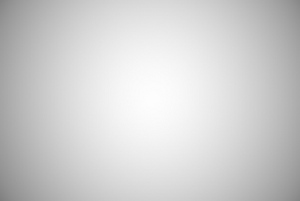

X-T2, JPEG, f/1.2 X-T2, RAW, f/1.2
Fujifilm Fujinon XF 56 mm f/1.2 R WR - Vignetting Fujifilm Fujinon XF 56 mm f/1.2 R WR - Vignetting

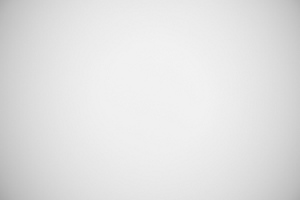

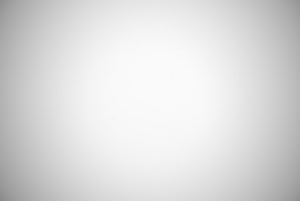

X-T2, JPEG, f/1.4 X-T2, RAW, f/1.4
Fujifilm Fujinon XF 56 mm f/1.2 R WR - Vignetting Fujifilm Fujinon XF 56 mm f/1.2 R WR - Vignetting

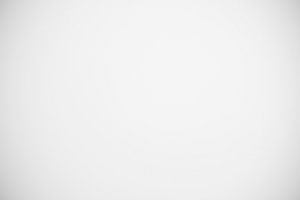

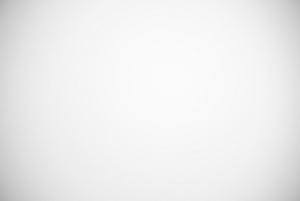

X-T2, JPEG, f/2.0 X-T2, RAW, f/2.0
Fujifilm Fujinon XF 56 mm f/1.2 R WR - Vignetting Fujifilm Fujinon XF 56 mm f/1.2 R WR - Vignetting


It's obvious that vignetting is corrected in case of JPEG files and this process cannot be switched off. As a result the values remain moderate. By f/1.2 brightness loss in frame corners amounts to 27% (−0.91 EV) and it decreases to 26% (−0.88 EV) on stopping down the aperture to f/1.4. By f/2.0 this aberration decreases further to 18% (−0.59 EV), and by f/2.8 to 8% (−0.24 EV). In case of the f/4.0 aperture and higher you deal with a level reaching near 6% (−0.17 EV).


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The real level of this aberration can be perceived only after examining RAW files. In this case at the maximum relative aperture vignetting is 47% (−1.82 EV), quite a lot, a bit higher than the respective result of its predecessor. It is interesting because the new lens is physically bigger so you could expect it deal with this aberration better. Of course vignetting is influenced not only by dimensions of the lens but also by its optical complexity and optics layout among other things. We admit the new model's task was much more difficult.

By f/1.4 vignetting is just slightly lower, amounting to 42% (-1.56 EV), but a more significant decrease can be noticed by f/2.0, where we got 27% (-0.92 EV). The aberration, described here, becomes almost imperceptible already by f/2.8 and f/4.0 apertures, where you deal with 14% (-0.44 EV), and 9% (-0.29 EV) respectively.

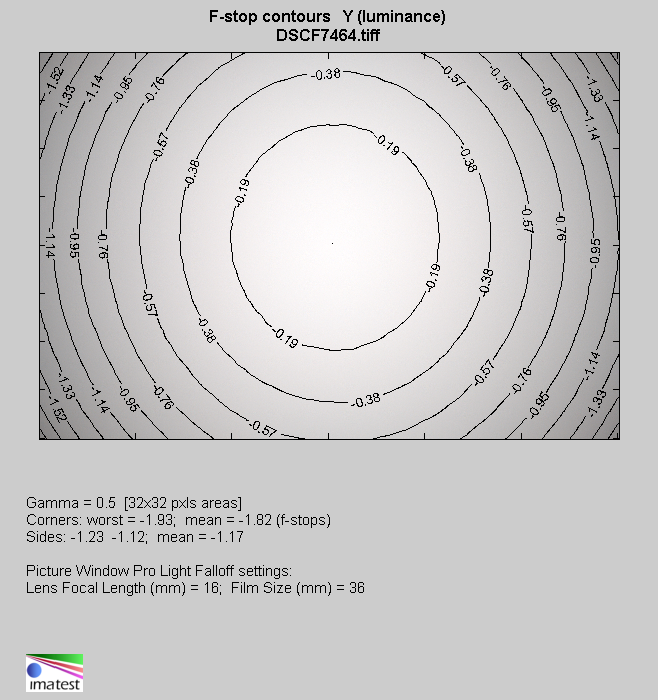

Fujifilm X-T2, RAW, f/1.2
Fujifilm Fujinon XF 56 mm f/1.2 R WR - Vignetting
