Tamron 20-40 mm f/2.8 Di III VXD

19 July 2023
Maciej Lata││o

8. Vignetting

First let's check how the Tamron 20-40 mm f/2.8 Di III VXD deals with vignetting on the APS-C sensor – appropriate thumbnails you can find below.

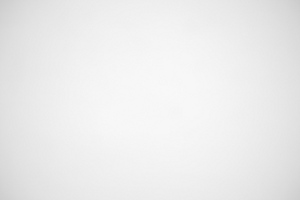

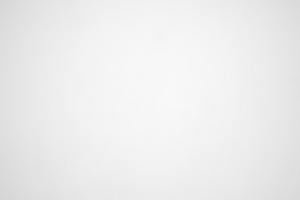

A7RáIII, APS-C, 20ámm, f/2.8 A7RáIII, APS-C, 20ámm, f/4.0
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting Tamron 20-40 mm f/2.8 Di III VXD - Vignetting

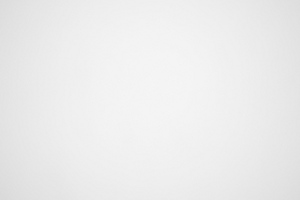

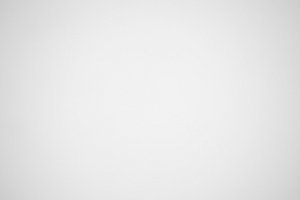

A7RáIII, APS-C, 30ámm, f/2.8 A7RáIII, APS-C, 30ámm, f/4.0
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting Tamron 20-40 mm f/2.8 Di III VXD - Vignetting

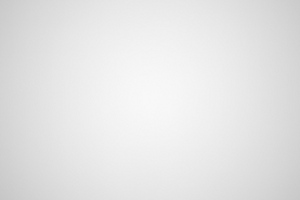

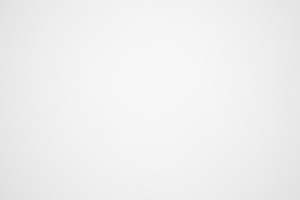

A7RáIII, APS-C, 40ámm, f/2.8 A7RáIII, APS-C, 40ámm, f/4.0
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting Tamron 20-40 mm f/2.8 Di III VXD - Vignetting


In this case at no focal length there are no problems whatsoever. If you apply the widest angle of view available and the f/2.8 aperture you have to take into account the loss of just 17% (−0.54 EV) of light in the frame corners. The problem disappears practically completely by f/4.0, where it is just 13% (−0.41 EV) and by f/5.6, where it is 12% (-0.40 EV).


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Even better results you can observe in the middle of the focal range – by f/2.8 and f/4.0 the vignetting was, respectively: 16% (−0.49 EV) and 10% (−0.31 EV).

At the maximum focal length and the maximum relative aperture vignetting amounts to 19% (-0.61 EV) and it decreases to an imperceptible level of 9% (-0.27 EV) on stopping down the aperture to f/4.0.

Now let's see how the tested lens fares on a full frame detector – appropriate images are shown below.

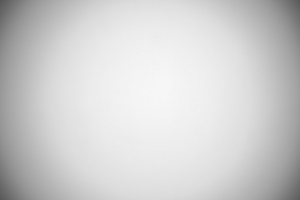

A7RáIII, FF, 20ámm, f/2.8 A7RáIII, FF, 20ámm, f/4.0
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting Tamron 20-40 mm f/2.8 Di III VXD - Vignetting

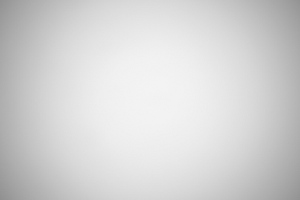

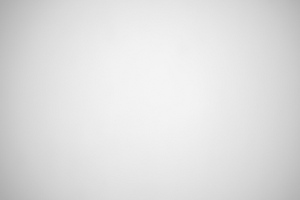

A7RáIII, FF, 30ámm, f/2.8 A7RáIII, FF, 30ámm, f/4.0
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting Tamron 20-40 mm f/2.8 Di III VXD - Vignetting

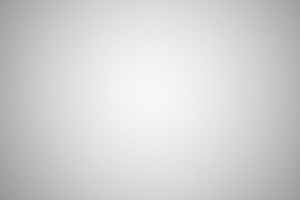

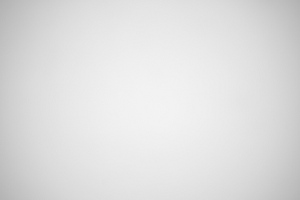

A7RáIII, FF, 40ámm, f/2.8 A7RáIII, FF, 40ámm, f/4.0
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting Tamron 20-40 mm f/2.8 Di III VXD - Vignetting


In case of the most difficult combination of the wide angle and maximum relative aperture the loss of light in the frame corners reaches 63% (−2.89 EV); then it decreases to 48% (−1.88 EV) on stopping down the aperture to f/4.0 and to 40% (−1.48 EV) after applying the f/5.6 aperture. By f/8.0, f/11.0 and f/16.0 we got, respectively: 35% (−1.26 EV), 34% (−1.19 EV) and 33% (−1.16 EV).

The situation gets noticeably better in the middle of the focal range. By f/2.8 vignetting amounts to 40% (−1.47 EV) and decreases to a value of 28% (−0.94 EV) on stopping down the lens by 1 EV. By f/5.6 we got a result of 26% (−0.86EV), and by f/8.0 and f/11.0 the same values, reaching near 25% (−0.85 EV).

Additional slight decrease of vignetting can be seen at the maximum focal length. In its case by f/2.8 the brightness loss in frame corners amounts to 37% (−1.34 EV), and by f/4.0 it decreases to 26% (−0.88 EV). Any noticeable problems end by and large by f/5.6 and f/8.0, where the results keep the same level of about 22% (−0.73 EV).

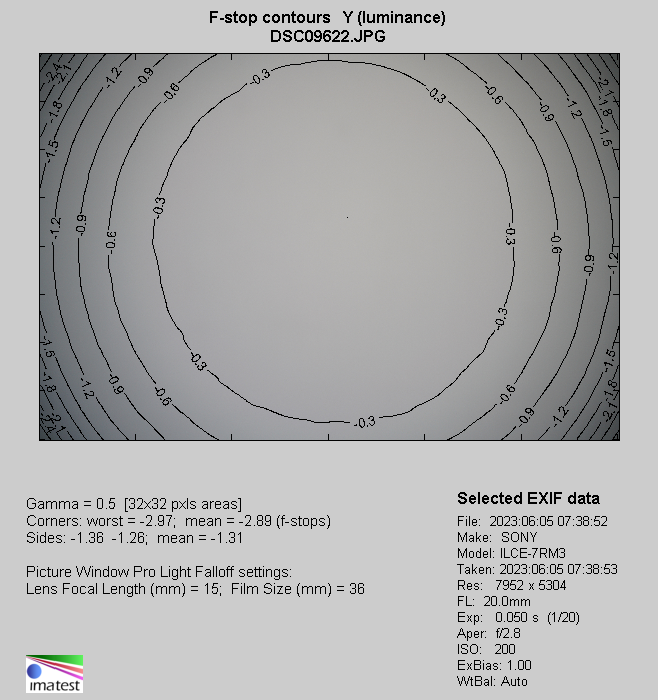

Sony A7RáIII, 20ámm, f/2.8
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting

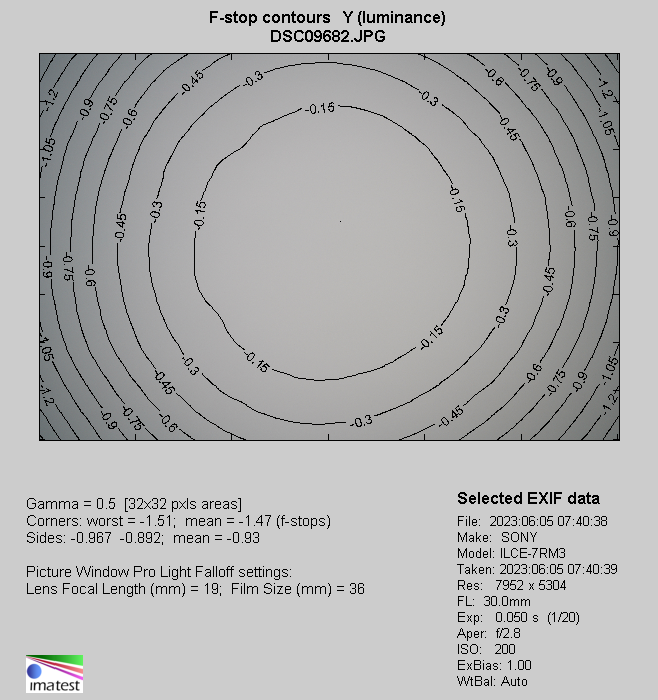

Sony A7RáIII, 30ámm, f/2.8
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting

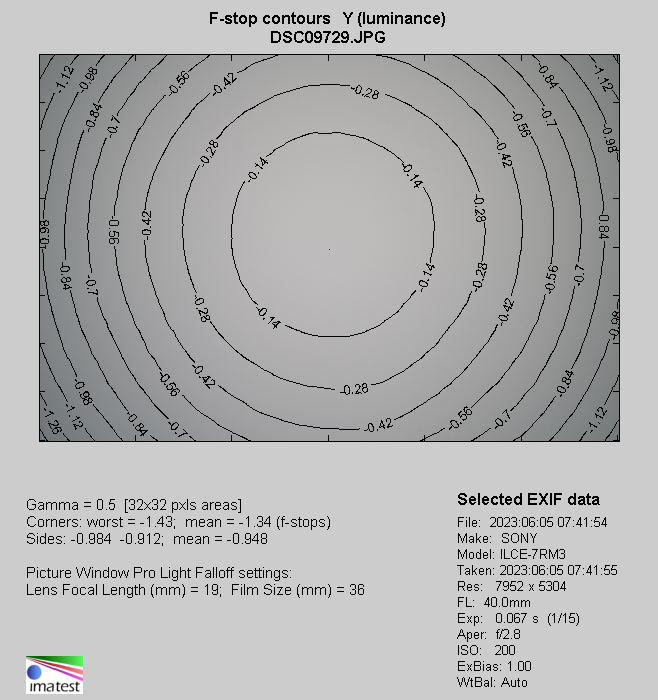

Sony A7RáIII, 40ámm, f/2.8
Tamron 20-40 mm f/2.8 Di III VXD - Vignetting
