Nikon Nikkor AF-S DX 18-135 mm f/3.5-5.6G ED-IF

24 September 2007
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

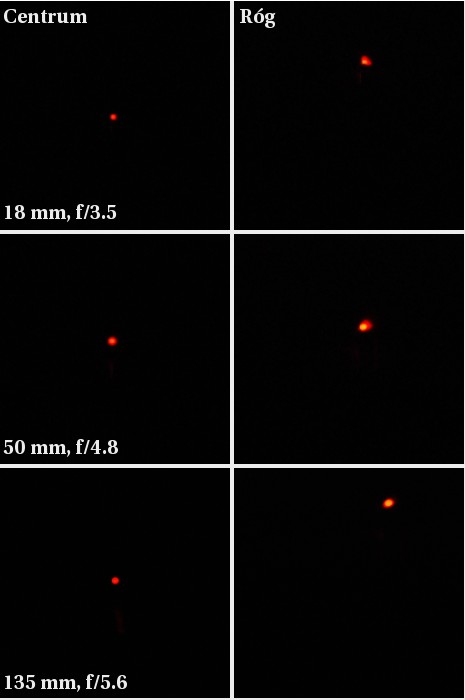

The coma in the Nikkor 18-135 mm is corrected at an average level. For every focal length the diode spot picture in the corner of the frame is distorted to a clear coma.

Nikon Nikkor AF-S DX 18-135 mm f/3.5-5.6G ED-IF - Coma and astigmatism


The astigmatism, however, is very well corrected. The average difference between the horizontal and parallel MTF50 values in the center of the frame reached 8.7%. We also noticed that the astigmatism reached its lowest value at the 18-35 mm focal length range, while reaching higher values at the rest of the focal length range.
