LensTip.com

Lens review

Nikon Nikkor AF-S DX 18-135 mm f/3.5-5.6G ED-IF

24 September 2007
Arkadiusz Olech

8. Vignetting

The Nikkor 18-70 mm had a very poor performance in this category, so we were counting on some improvement in the 18-135 mm model.

Nikon Nikkor AF-S DX 18-135 mm f/3.5-5.6G ED-IF - Vignetting

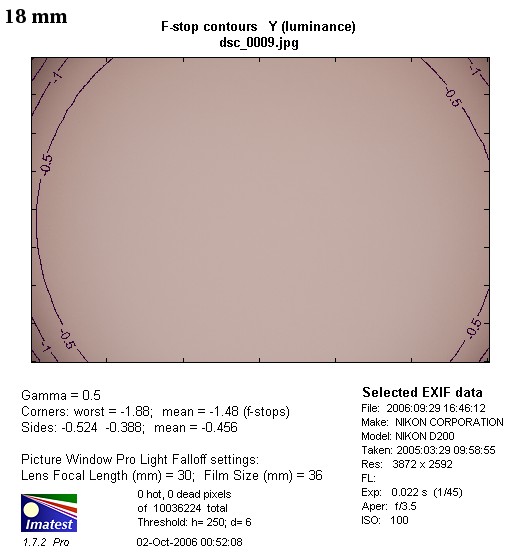

Unfortunately, we were very disappointed. At 18 mm focal length and a wide open aperture the light fall off reached as much as 40% (-1.48 diaphragm value). Stopping down the lens to f/4.0 decreases the value to 33%. For f/5.6 we still have a high value of 21%. Only when using the f/8 diaphragm does the level drop to 14%, which is still higher than the required 10%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Fortunately, the situation improves at the 35-50 mm focal length. At 35 mm and f/4.2 the light fall off reaches a value of 26% (-0.87 diaphragm value). Stopping down the lens to f/5.6 decreases the vignetting to 13% and at f/8 it drops to an invisible level of 10%.

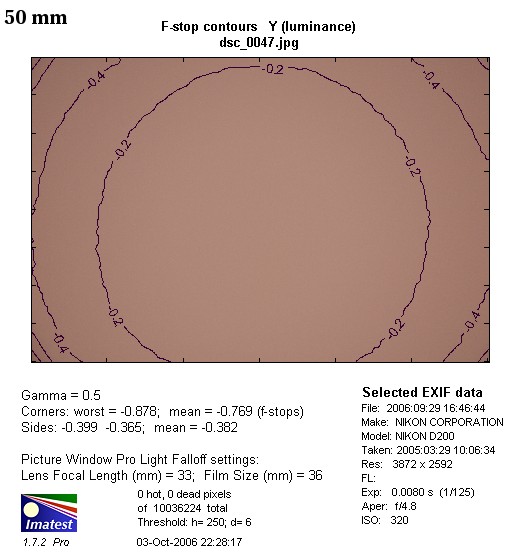

At the 50 mm focal length the situation is even better. With a wide open aperture the vignetting reaches a value of 23% (-0.75 diaphragm value). At f/5.6 it is 13% and at f/8 only 8%.

The trouble starts at 85 mm. At f/5.6 the light fall off in the corners of the frame reaches as much as 33% (-1.17 diaphragm value). Fortunately, after stopping down the lens, the vignetting drops to 12% and then it almost completely disappears.

A major problem emerges at the maximum focal length. At f/5.6 the light fall off in the corners of the frame reaches 50%, which is twice the diaphragm value. After stopping down the lens, the situation improves, but the vignetting is still present and reaches a value of 25%. Only after using the diaphragm at f/11 does the vignetting drop to 9%.

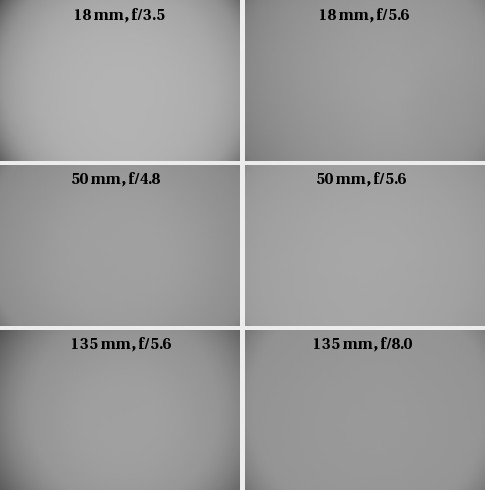

It is such a shame...the pictures speak for themselves.

Nikon Nikkor AF-S DX 18-135 mm f/3.5-5.6G ED-IF - Vignetting

Nikon Nikkor AF-S DX 18-135 mm f/3.5-5.6G ED-IF - Vignetting

Nikon Nikkor AF-S DX 18-135 mm f/3.5-5.6G ED-IF - Vignetting
