LensTip.com

Lens review

Sigma 100-300 mm f/4 DG EX APO IF HSM

27 September 2007
Arkadiusz Olech

8. Vignetting

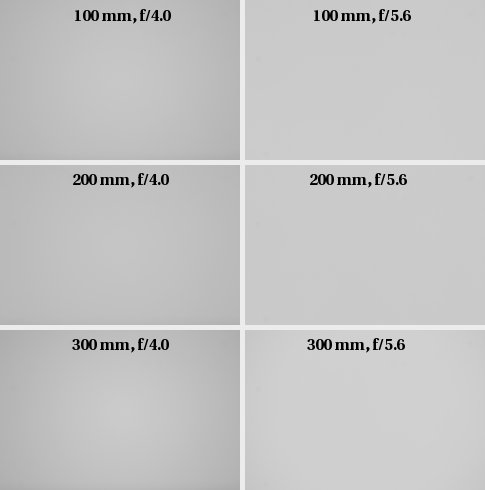

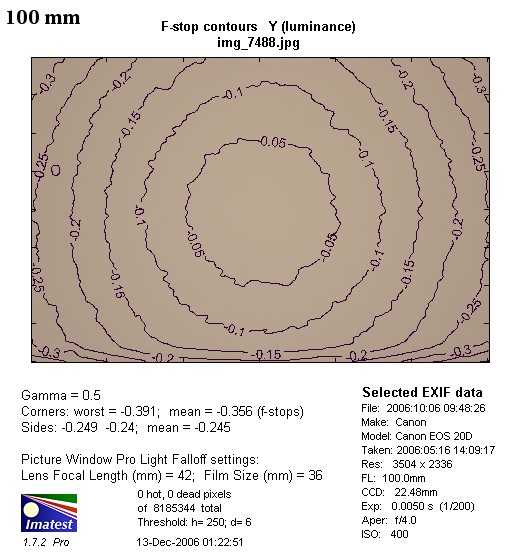

We did not notice any problem with vignetting either. At 100 mm and f/4.0 the light fall off in the corners of the frame was only 12% (-0.36 the value of the diaphragm) and when we stop down the lens to f/5.6 it drops to 2%.

Sigma 100-300 mm f/4 DG EX APO IF HSM - Vignetting

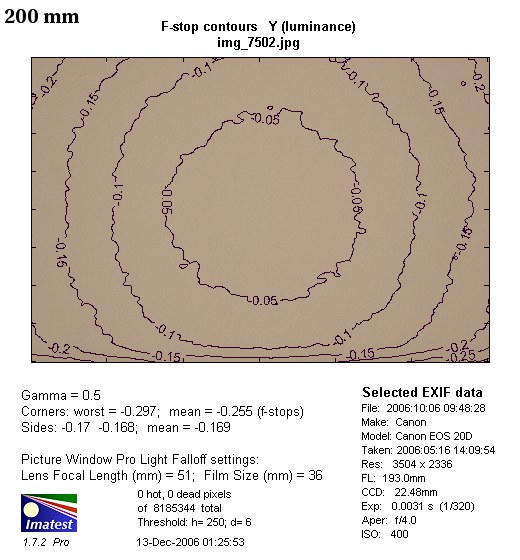

The situation at 200 mm is ideal. Even at wide open aperture the vignetting is almost invisible (8%) and at f/5.6 it decreases almost to zero.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The slight problem, although it is still diminutive, would be at the 300 mm focal length. At f/4.0 the light fall off in the corners of the frame is 15% (-0.46 the value of the diaphragm). When we decrease the diaphragm by one stop the failure almost disappears (5%).

Sigma 100-300 mm f/4 DG EX APO IF HSM - Vignetting

Sigma 100-300 mm f/4 DG EX APO IF HSM - Vignetting

Sigma 100-300 mm f/4 DG EX APO IF HSM - Vignetting
