LensTip.com

Lens review

Sigma 50 mm f/1.4 EX DG HSM

16 June 2009
Arkadiusz Olech

3. Build quality

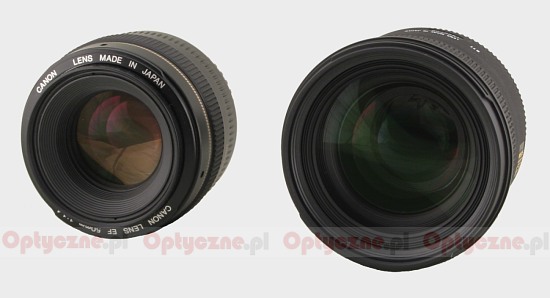

The first thing that stick out is the huge front element. Its dimensions can be properly assessed when compared to the competitors’ with filter threads from 49 to 58 mm – Sigma’s filter thread is as much as 77 mm! The picture below shows clearly the difference, comparing the Canon 1.4/50 USM with the tested lens. It is worth notice that both lenses are very similar – the same parameters, full frame in both cases, the same ultrasonic autofocus motor.

Sigma 50 mm f/1.4 EX DG HSM - Build quality

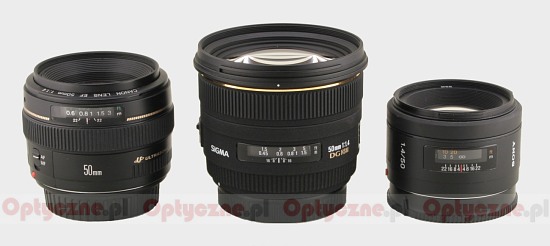

A big front element implies significant overall dimensions. So far, the biggest lens in the 1.4/50 class was Canon. Sigma is bigger and heavier than Canon and the Sony 1.4/50 looks simply like a dwarf next to it.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Sigma 50 mm f/1.4 EX DG HSM - Build quality

Looking at the chart , which compares the 1.4/50 lenses parameters it is clear that Sigma differs from its competitors in other aspects too. It’s design is the most complicated and its aperture has the biggest number of blades.

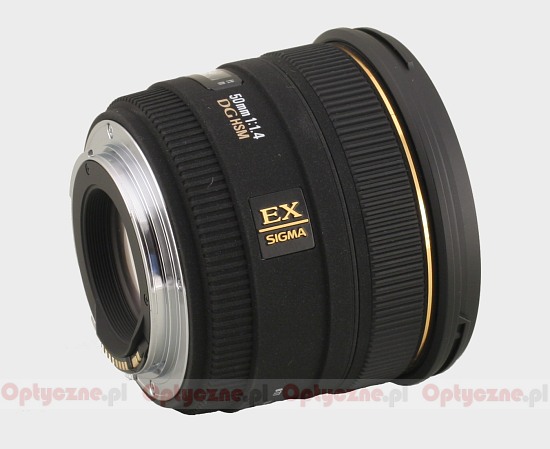

The tested Sigma belongs to the highest EX class, so we have here a solid, metal barrel, a metal bayonet and a three-year-long warranty which can be extended to five years. On the lens we can find a clear distance scale behind a glass and a quite big, comfortable and precise manual focus ring. The lens ends with a non-rotating filter thread, 77 mm in diameter.

Sigma 50 mm f/1.4 EX DG HSM - Build quality

The inner construction consists of 8 elements in 6 groups. The element the closest to the sensor has an aspherical shape. After the third element we find a round 9 diaphragm blades aperture, which can be stopped down to f/16.

Sigma 50 mm f/1.4 EX DG HSM - Build quality

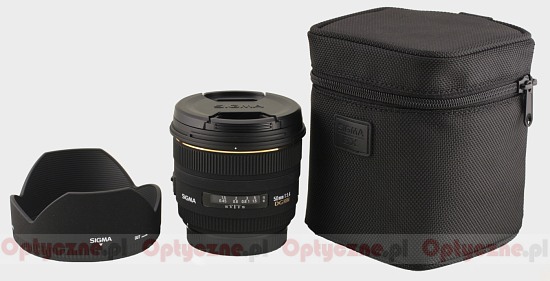

As befits the EX series, we get with the lens good quality accessories – in the box we will find both caps, a petal-type lens hood and a stylish, hard case, which can be attached, for example, to a belt.

Sigma 50 mm f/1.4 EX DG HSM - Build quality
