Sigma 50 mm f/1.4 EX DG HSM review - Vignetting

Have you rated your lenses yet?

Sigma 50 mm f/1.4 EX DG HSM

16 June 2009

Arkadiusz Olech

8. Vignetting

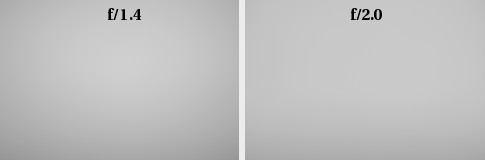

Sigma 1.4/50 HSM is designed to work with a full frame so the vignetting test, conducted on a small Canon 20D sensor is able to reveal just one part of the whole picture. The conclusions are favorable for Sigma, though – at maximum aperture it has a 22% (-0.73 EV)frame corner illumination loss, which is good, especially compared with the results of the competitors (from 23 to 34%).

Sigma 50 mm f/1.4 EX DG HSM - Vignetting

On stopping down to f/2.0 the vignetting doesn’t bother us almost completely (12%) and by f/2.8 it disappears (8%).

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

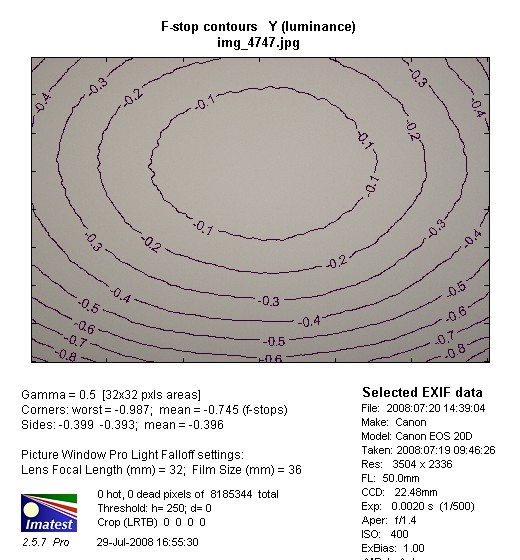

The fact of the existence of a very interesting non-central vignetting profile, presented by the Sigma, should be noticed here. To make sure that it’s not a result of an error or a body defect we repeated the vignetting test on another camera with the APS-C sensor and the results, within the error margin, were the same and the non-central profile also visible very clearly.
