Sony Carl Zeiss Vario Sonnar 16-35 mm f/2.8 T* SSM

4 August 2009
Arkadiusz Olech

6. Distortion

Let’s start with the small A100 sensor performance. At the widest angle the Zeiss 16-35 mm has a barrel distortion of – 2.76%. Is this value big or small? To answer this question we should remind ourselves how fared such lenses as Zeiss 16-80 mm, Sony 16-105 mm i Nikkor 16-85 mm VR in this category. Their results were: -3.98%, -4.67% and -4.16% respectively. As you see, the Zeiss 16-35 mm performes really well, undoubtedly because it was designed for a full frame. The result is very similar to that of a Canon 16-35 mm on a small Canon 20D sensor – in its case the measured value reached –2.51%

At longer focal lengths the distortion becomes almost indistinguishable. In the middle of the focal range it is still –0.70% barrel, then it changes to pincushion and at 35 mm it reaches the level of 0.31%.

The problem becomes obviously more serious on full frame. At 16 mm the barrel distortion reaches –4.21%. On the one hand it’s a lot, on the other – not. Lenses designed for small sensors, giving us the 70-80 degrees’ field of view present a similar level of this aberration. In the case of the Zeiss, though, the field of view is as much as 107 degrees so we get a clear benefit here. On the other hand, a lens such as a Tokina 11-16 mm f/2.8, cooperating with small APS-C/DX sensors at 11 mm gives us 102-104 degrees field of view, so comparable with the Zeiss working on full frame, and in its case the widest angle distortion reaches –3.24%. Well…nobody’s promised that you can painlessly return to full frame.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of focal lengths range on full frame the distortion decreases to the level of –0.71% and it changes sign and increases to the value of 1.10% at 35 mm.

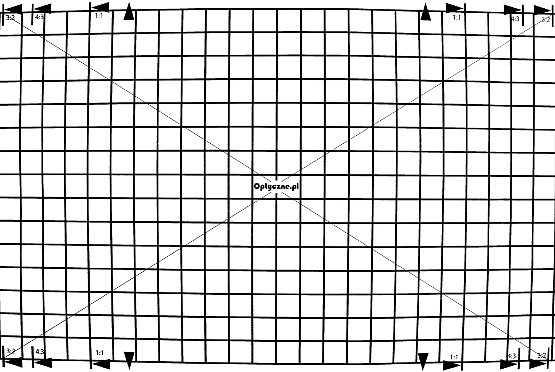

Sony A100, 16 mm
Sony Carl Zeiss Vario Sonnar 16-35 mm f/2.8 T* SSM - Distortion

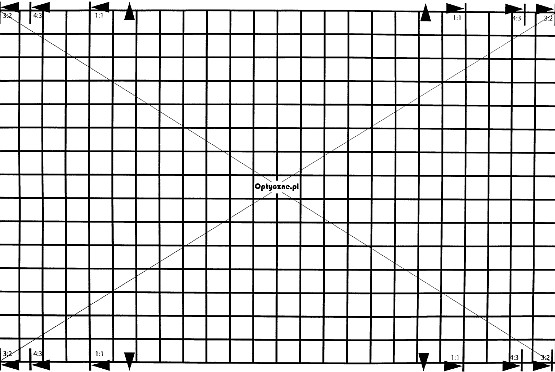

Sony A100, 24 mm
Sony Carl Zeiss Vario Sonnar 16-35 mm f/2.8 T* SSM - Distortion

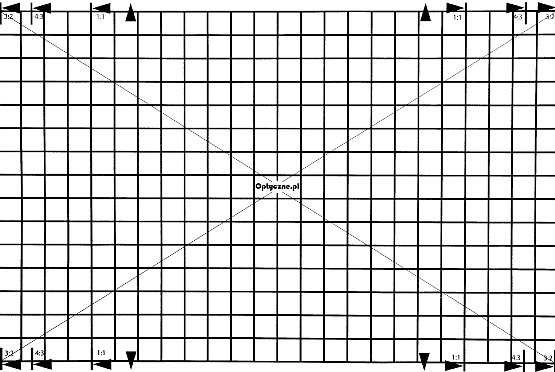

Sony A100, 35 mm
Sony Carl Zeiss Vario Sonnar 16-35 mm f/2.8 T* SSM - Distortion

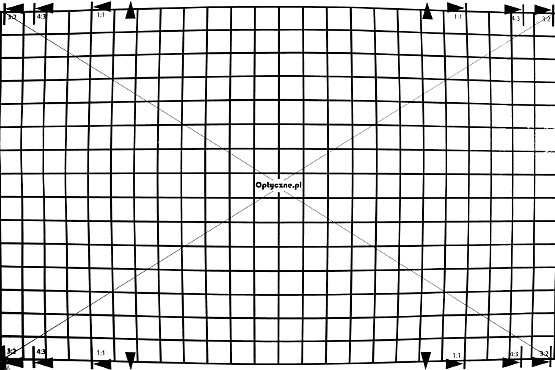

Sony A900, 16 mm
Sony Carl Zeiss Vario Sonnar 16-35 mm f/2.8 T* SSM - Distortion

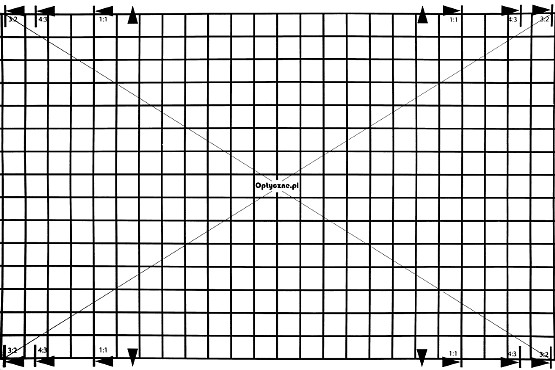

Sony A900, 24 mm
Sony Carl Zeiss Vario Sonnar 16-35 mm f/2.8 T* SSM - Distortion

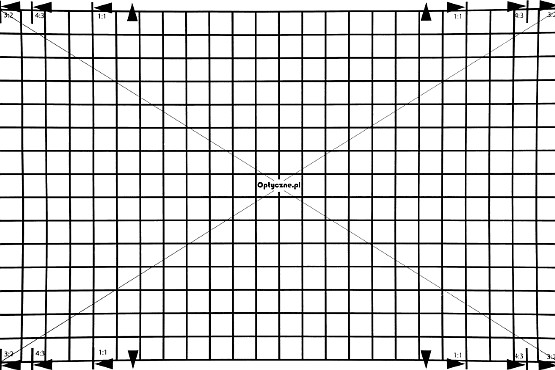

Sony A900, 35 mm
Sony Carl Zeiss Vario Sonnar 16-35 mm f/2.8 T* SSM - Distortion
