Lens review

Canon EF-S 18-55 mm f/3.5-5.6 IS

24 March 2010
Arkadiusz Olech

8. Vignetting

The predecessor of the stabilized „kit” lens fared sensibly well in this category, having the highest level of vignetting, amounting to 25%, at the shortest focal length. The Nikkor and the Pentax weren’t so lucky though, because in their case the vignetting values amounted to as much as 39-40% ; however, it should be remembered that they work on a bit bigger sensors.

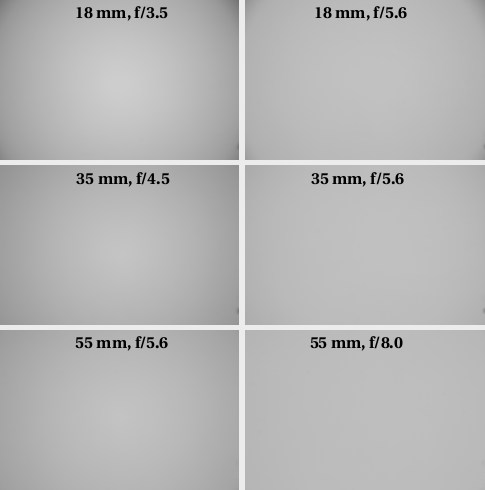

Canon EF-S 18-55 mm f/3.5-5.6 IS - Vignetting


Unfortunately with the virtually unchanged lens diameter, the addition of stabilization resulted in vignetting increase. At the widest angle and by f/3.5 the light fall-off in the frame corners amounts to 35% (-1.43 EV). By f/4.0 it decreases to the level of 32%, by f/5.6 it reaches 23%, by f/8.0 it already is 17% but only by f/11 it decreases to an almost imperceptible level of 12%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

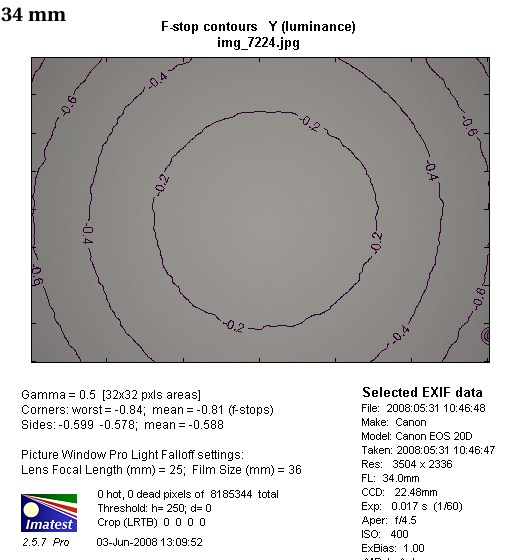

A significantly better situation can be observed in the middle of the focal lengths’ range. Here, at the maximum aperture, the vignetting amounts to 24% (-0.81 EV). By f/5.6 it decreases to 11% and it stops being visible as well.

The best situation we see at 55 mm where, at the maximum relative aperture, the light fall-off in the frame corners reaches 20% (-0.64 EV). By f/8.0 the problem becomes completely of marginal significance (6%).


Canon EF-S 18-55 mm f/3.5-5.6 IS - Vignetting

Canon EF-S 18-55 mm f/3.5-5.6 IS - Vignetting

Canon EF-S 18-55 mm f/3.5-5.6 IS - Vignetting
