LensTip.com

Lens review

Canon EF-S 18-55 mm f/3.5-5.6 IS

24 March 2010
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

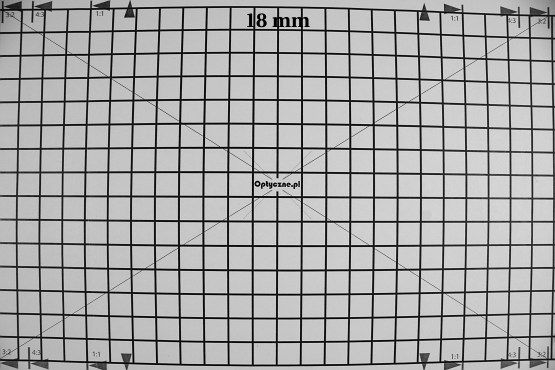

The distortion correction level has been slightly improved. In the case of the old “kit” lens that aberration at the widest angle reached - 4.6%, now it amounts to only – 3.96%. It is still a bit more than in the case of, for instance, the Nikkor.

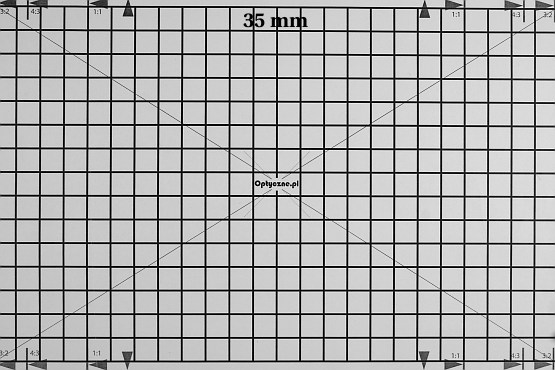

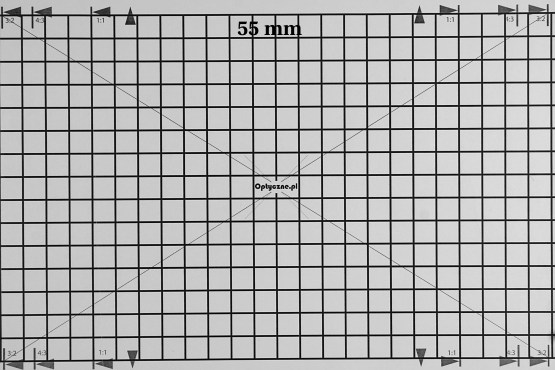

The geometric deformations problem at the frame edge stops being bothersome with the increase of the focal length soon enough. At 35 mm this aberration level becomes imperceptible and amounts to - 0.17%. At 55 mm the distortion changes from barrel to pincushion and its value increases slightly (0.42%).


Canon EF-S 18-55 mm f/3.5-5.6 IS - Distortion

Canon EF-S 18-55 mm f/3.5-5.6 IS - Distortion

Canon EF-S 18-55 mm f/3.5-5.6 IS - Distortion
