Sigma 8-16 mm f/4.5-5.6 DC HSM

25 May 2010
Arkadiusz Olech

6. Distortion

Already in the case of its first 10-20 mm model Sigma showed that it can correct the distortion in its ultra wide angle devices. We were even more curious how the 8-16 mm model would fare in this category.

In this case at 8 mm, where we deal with 119.1 degrees angle of view, we noted down the barrel distortion of –2.59%. Such value is hardly imperceptible but, taking into account the parameters of the tested lens, it is rather acceptable. It would be difficult to present an unambiguous assessment here as you can hardly find any other device for comparison.

With the increase of the focal lengths the problems with the bending of straight lines decrease. In the middle of the range the distortion is still barrel but its value becomes negligible and amounts to just –0.36%. At the maximum focal length we already have 1.1% “pincushion”


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

One more thing is worth mentioning here. The measured and analyzed distortion concerns the bending of straight lines and it constitutes just one element. The second one is deformation in the frame corners, which, in such a wide angle lens with a rectilinear mapping (so trying to render straight lines as straight), is impossible to avoid. It will be much less bothersome in a “fisheye” type of lens but in that case we simply must forget about any straight lines.

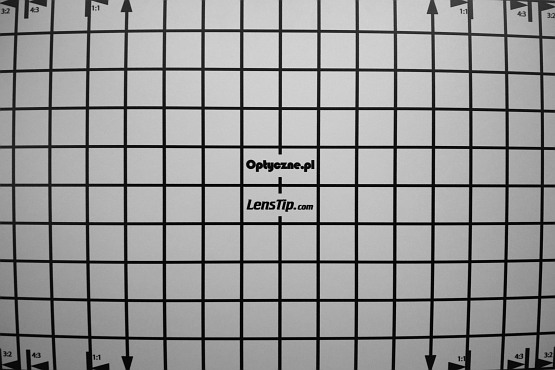

Canon 50D, 8 mm
Sigma 8-16 mm f/4.5-5.6 DC HSM - Distortion

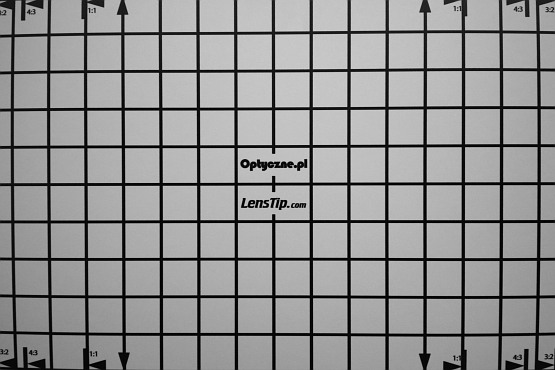

Canon 50D, 12 mm
Sigma 8-16 mm f/4.5-5.6 DC HSM - Distortion

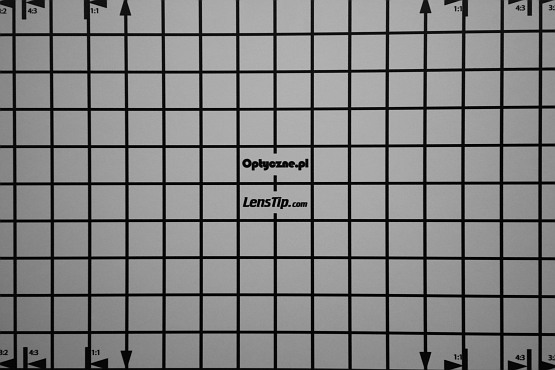

Canon 50D, 16 mm
Sigma 8-16 mm f/4.5-5.6 DC HSM - Distortion
