Lens review

Canon EF 70-200 mm f/4L IS USM

9 October 2007
Arkadiusz Olech

8. Vignetting

For the full frame Canon 70-200 f/4 IS we didn’t expect any problems with vignetting on the APS-C detector. We were right; the problem with vignetting was almost absent.

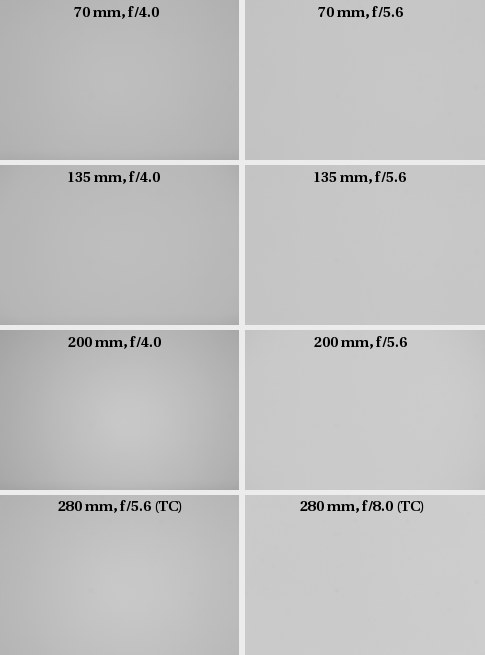

Canon EF 70-200 mm f/4L IS USM - Vignetting

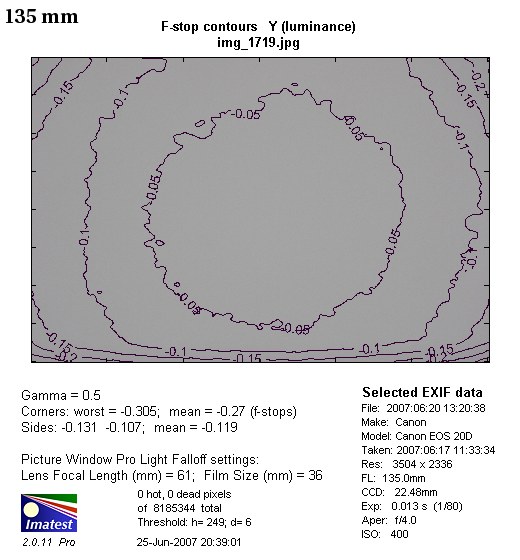

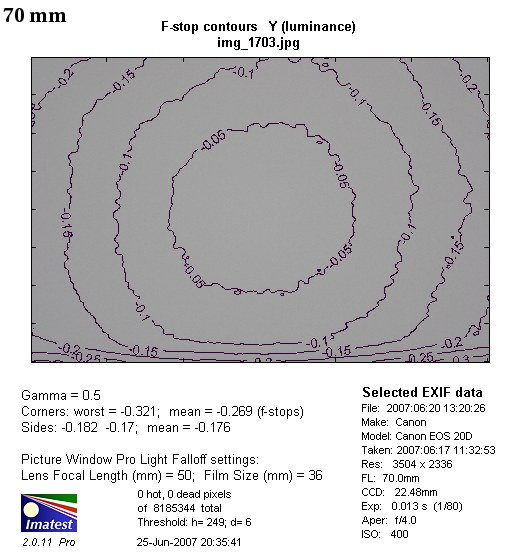

At the 70 mm focal length and open aperture the light fall-off in the corners of the frame was only 9% (-0.27 value of the diaphragm) and it is almost unnoticeable. After stopping down to f/5.6 the vignetting decreases to 2%. We noticed the same situation at 135 mm. At f/4 the light fall off reached 9% and after stopping down to f/5.6 it is 2%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

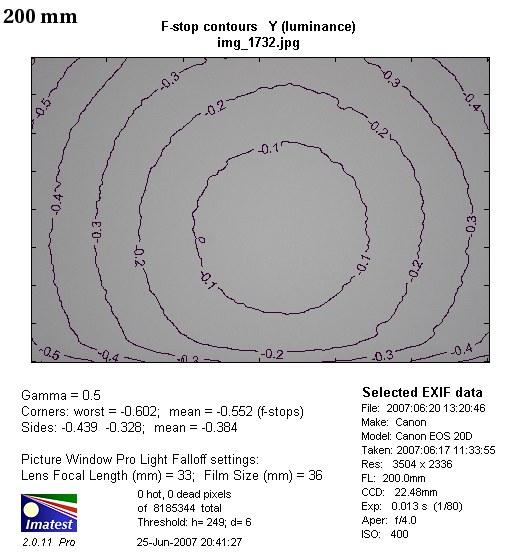

The vignetting is a bit visible at the 200 mm focal length. At the maximum aperture the result is 17% (-0.55 value of the diaphragm) but the defect disappears after stopping down the lens to f/5.6, where it reaches only 5%.

It is, again, worth adding that with 1-2% accuracy the vignetting values are the same as for the 70-200 mm f/4L non-stabilization version.

We also would like to mention the influence of the converter on the vignetting. As a result, after lengthening the effective focal length and maximum aperture drop off, the vignetting decreased to 10% (-0.3EV) at f/5.6 and then decreased to 1% at f/8.0.

Canon EF 70-200 mm f/4L IS USM - Vignetting

Canon EF 70-200 mm f/4L IS USM - Vignetting

Canon EF 70-200 mm f/4L IS USM - Vignetting
