6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

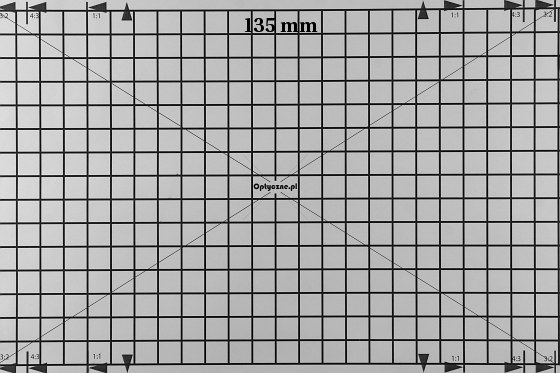

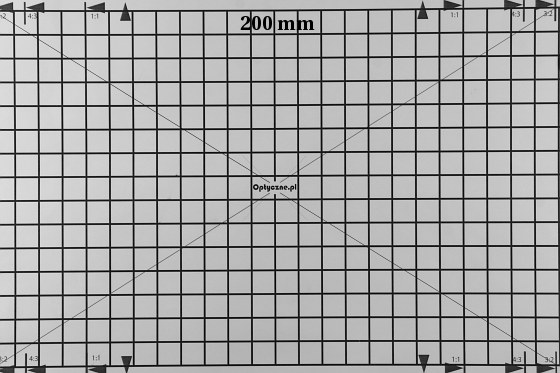

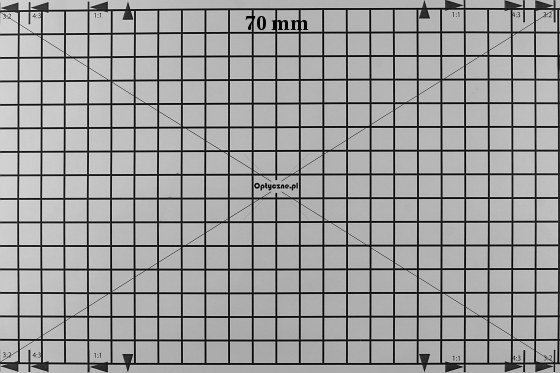

The 2.86x zoom varifocal lens shouldn’t show too many defects at the edges of the frame. There is nothing to complain about the Canon 70-200 f/4L IS in this category. At any focal length the distortion is very small and almost unnoticeable. At 70 mm we measured a minimal barrel distortion of -0.48%. At 135 mm it becomes pincushion distortion of 0.50%. There is a slight increase when increasing the focal length and at 200 mm the distortion value is 0.76%. We would like to add that those values (with 0.02% accuracy) are the same as in the non-stabilization model, which proves the lens’s good quality and the consistency of our test methods.

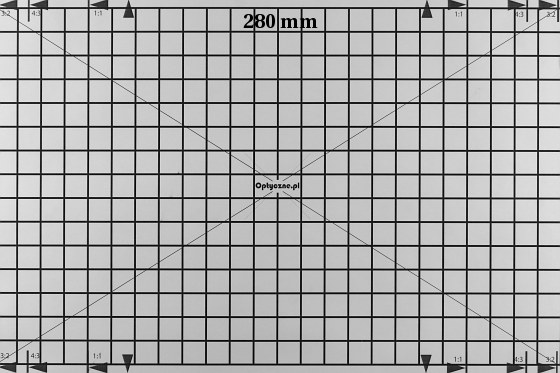

A very interesting behavior appears when we attach the converter. The distortion decreases to -0.06%.

Canon EF 70-200 mm f/4L IS USM - Distortion

Canon EF 70-200 mm f/4L IS USM - Distortion

Canon EF 70-200 mm f/4L IS USM - Distortion

Canon EF 70-200 mm f/4L IS USM - Distortion
